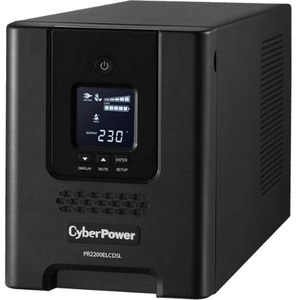

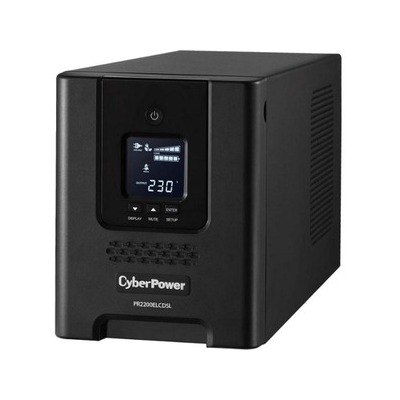

UPS Systems PR2200ELCDSL

VA
2200
Watts
1980
Output Voltage ( Vac )
230 ± 10%
Half Load Runtime ( min )
12
Outlets
IEC C13 x 8
Energy Saving Technology
Pure Sine Wave Output
LCD Status Display
Hot-swappable Batteries

Overview

CyberPower PR2200ELCDSL Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.

Features

  • Line-interactive UPS Topology
  • Active PFC Compatible
  • Automatic Voltage Regulation (AVR)
  • Hot-swappable Batteries
  • EMI and RFI Filtration
  • USB Connectivity Port
  • PowerPanel Management Software
  • Tower Form Factor
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Overload Protection
  • Surge and Spike Protection
  • LCD Status Display
  • Emergency Power Off (EPO) Port
  • SNMP/HTTP Remote Management Capability (Optional)

What's in the Box

  • PR2200ELCDSL UPS
  • Power Cord
  • USB Cable
  • EPO Cable
  • User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(PR2200ELCDSL)

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Pure Sine Wave Output

The UPS provides Pure Sine Wave power output for sensitive equipment that requires smoother and cleaner input source. The Pure Sine Wave source ensures system is operating more efficiently to reduce power consumption and save electricity costs.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Critical/Non-critical Load Outlets

Users can configure critical/non-critical load (CL/NCL) settings through the software. When battery power is insufficient during a power outage, the NCL outlets can be cut off to preserve power to extend the runtime for critical devices. For Selected Models Only

Hot-swappable Batteries

Batteries can be safely replaced without shutting down the UPS or connected equipment, ensuring uninterrupted operation. Please read the safety precautions in the manual before battery replacement.

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorTower
UPS TopologyLine-interactive
Energy Saving TechnologyGreenPower UPS™ Bypass Technology
Active PFC CompatibilityYes

Input

Nominal Input Voltage ( Vac )230
Input Voltage Range ( Vac )151 ~ 296
Input Frequency ( Hz )50 ± 3
60 ± 3
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )10
Input Connector TypeIEC C14
Detachable Power Cord Plug TypeAU x 1
IEC C14 x 1
Power Cord Length (ft.)10
6
Power Cord Length (m.)3.05
1.83

Output

Capacity (VA)2200
Capacity (Watts)1980
On Battery WaveformPure Sine Wave
On Battery Voltage(s) ( Vac )230 ± 10 %
On Battery Frequency ( Hz )50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)Double Boost, Single Buck
Overload ProtectionInternal Current Limiting, Circuit Breaker
Outlet(s) - Total8
Outlet TypeIEC C13 x 8
Outlet(s) - Battery & Surge Protected8
Typical Transfer Time ( ms )4

Battery

Runtime at Half Load ( min )12
Runtime at Full Load ( min )3
Typical Recharge Time ( Hours )8
Start On BatteryYes
User-replaceableYes
Hot-swappableYes
Battery Cartridge (RBP)RBP0116
Battery Cartridge (RBP) Quantity ( pcs )1

Surge Protection & Filtering

Surge Suppression ( Joules )405
EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
LED IndicatorsPower On
HID Compliant USB Port(s)1
Emergency Power Off (EPO) PortYes
Audible AlarmsBattery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )Power Cord x5, USB Cable x1, EPO Cable x1
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal
ColorBlack

Physical Size - UPS Module

Dimensions (WxHxD) (in.)6.69 x 8.70 x 17.00
Dimensions (WxHxD) (mm.)170 x 221 x 432
Weight (lbs.)56.2
Weight (kg.)25.5

Shipping Dimensions

Dimensions (WxHxD) (in.)12.44 x 14.17 x 22.80
Dimensions (WxHxD) (mm.)316 x 360 x 579
Weight (lbs.)58.82
Weight (kg.)26.68

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )0 ~ 95
Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)5 ~ 113
Storage Temperature (°C)-15 ~ 45
Storage Relative Humidity (Non-condensing) ( % )0 ~ 95
Storage Elevation ( feet/meters )0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr )155

Certifications

CertificationsCE, RCM
RoHSYes

WARRANTY

Product Warranty Period ( Year )3
Battery Warranty Period ( Year )2
Connected Equipment Guarantee100,000 AUD ; 3 years
SKU PR2200ELCDSL
Barcode # 4712364146350
Brand CYBERPOWER
Shipping Weight 27.0000kg
