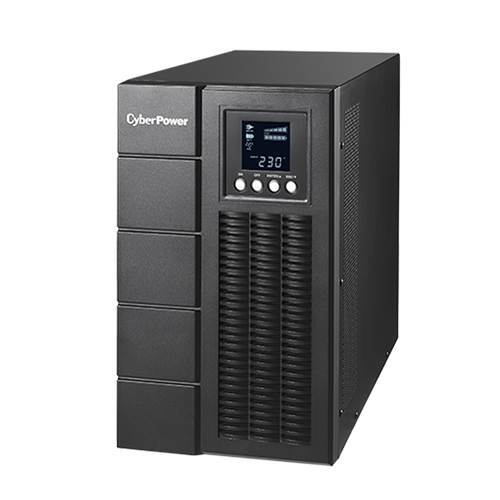

UPS Systems OLS3000E

Name: CyberPower Online S Series OLS3000E Tower 3000VA / 2400W Pure Sine Wave UPS
Brand: CYBERPOWER
SKU: OLS3000E
Price: 1210 AUD
Availability: InStock

3000

Watts

2700

Output Voltage ( Vac )

208 ± 1%220 ± 1%230 ± 1%240 ± 1%

Half Load Runtime ( min )

Outlets

IEC C19 x 1Hardwire Terminal Block x 1IEC C13 x 4

ECO Mode

Pure Sine Wave Output

LCD Status Display

Generator Compatible

Overview

CyberPower OLS3000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

Features

Online (Double Conversion) UPS Topology
Generator Compatible
Zero Transfer Time
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
PowerPanel Management Software
ECO Mode
Overload Protection
Smart Battery Management (SBM)
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)

What's in the Box

OLS3000E UPS
Power Cord
USB Cable
Phone Line
User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OLS3000E)

<div bis_skin_checked="1" class="content-wrapper" id="features" style="display: block;">
<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Online Double-conversion Topology</h3>

<p style="text-align: center;">The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.</p>
</div>

<p style="text-align: center;">When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.</p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Color LCD Panel</h3>

<p style="text-align: center;">The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Tiltable LCD Panel</h3>

<p style="text-align: center;">The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">High Output Power Factor</h3>

<p style="text-align: center;">The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">UPS Parallel Expansion</h3>

<p style="text-align: center;">The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Maintenance Bypass Switch</h3>

<p style="text-align: center;">With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Relay-type Dry Contact</h3>

<p style="text-align: center;">With relay-type dry contact port, users can know UPS status from connected light bulb or alarm in order to monitor and manage UPS conveniently. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="whiteLeft">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Extended Battery Module Auto-detection</h3>

<p style="text-align: center;">The UPS comes with extended battery module auto-detection, which allows users to know the quantity of connected extended battery modules (EBM) in order to easily estimate UPS's runtime. <span class="warning"> <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">Emergency Power Off</h3>

<p style="text-align: center;">The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.</p>
</div>

<p style="text-align: center;">Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. <span class="warning"> <c langkey="Remark_2">Optional Feature</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">PowerPanel Business Software</h3>

<p style="text-align: center;">The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. <span class="warning"> <c langkey="Remark_3">Recommended Software</c> </span></p>
</div>

<p style="text-align: center;">The UPS comes with a built-in Remote Cloud Card, which connects to PowerPanel Cloud to provide users with real-time UPS status information and enables remote monitoring of UPS systems installed in different places from anywhere. <span class="warning"> <c langkey="Remark_7">Free Trial Available</c> | <c langkey="Remark">For Selected Models Only</c> </span></p>
</div>

<div bis_skin_checked="1" class="greyRight">
<div bis_skin_checked="1" class="container">
<div bis_skin_checked="1" class="txt-wrapper">
<h3 style="text-align: center;">PowerPanel Cloud Solution</h3>

<p style="text-align: center;">The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. <span class="warning"> <c langkey="Remark_7">Free Trial Available</c> </span></p>
</div>

General

PhaseSingle Phase

Form FactorTower

UPS TopologyOnline Double Conversion

Energy Saving TechnologyECO Mode Efficiency > 95%

Active PFC CompatibilityYes

Input

Generator CompatibilityYes

Nominal Input Voltage ( Vac )230 ± 10%

Input Voltage Range ( Vac )190 ~ 300

Adjustable Voltage Range ( Vac )0~50% Load for 110 ~ 300 Vac
0~60% Load for 140 ~ 300 Vac
0~80% Load for 160 ~ 300 Vac
0~100% Load for 190 ~ 300 Vac

Input Frequency ( Hz )50 ± 10
60 ± 10

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )13.04

Input Power Factor0.98

Input Connector TypeIEC C20

Detachable Power Cord Plug TypeAU x 1

Power Cord Length (ft.)5.9

Power Cord Length (m.)1.8

Output

Capacity (VA)3000

Capacity (Watts)2700

On Battery WaveformPure Sine Wave

On Battery Voltage(s) ( Vac )208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %

Output Voltage SettingConfigurable

On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%

Output Frequency SettingConfigurable

Power Factor0.9

ECO Mode Voltage Tolerance± 15 %

Overload ProtectionInternal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)>130% Load Immediately

Crest Factor3 : 1

Harmonic Distortion (Linear Load)THD＜3%

Harmonic Distortion (Non-linear Load)THD＜5%

Internal BypassAutomatic Bypass, Manual Bypass

Outlet(s) - Total6

Outlet TypeIEC C19 x 1

Hardwire Terminal Block x 1
IEC C13 x 4

Outlet(s) - Battery & Surge Protected5

Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )14

Runtime at Full Load ( min )4

Typical Recharge Time ( Hours )5

Maximum Charging Current ( A )1

Start On BatteryYes

Smart Battery Management (SBM)Yes

User-replaceableNo

Compatible Extended Battery Module (EBM)BPSE72V45A

Max. EBM Quantity ( pcs )3

Surge Protection & Filtering

Surge Suppression ( Joules )440

EMI/RFI FiltrationYes

Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s)1

Emergency Power Off (EPO) PortYes

Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )Power Cord x2, USB Cable x1, Phone Line x1

Power Management SoftwarePowerPanel Business (Recommended)

SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal

ColorBlack

Physical Size - UPS Module

Dimensions (WxHxD) (in.)7.72 x 12.27 x 16.38

Dimensions (WxHxD) (mm.)196 x 337 x 416

Weight (lbs.)62.17

Weight (kg.)28.2

Shipping Dimensions

Dimensions (WxHxD) (in.)11.61 x 18.03 x 20.43

Dimensions (WxHxD) (mm.)295 x 458 x 519

Weight (lbs.)67.02

Weight (kg.)30.4

Environmental

Operating Temperature (°F)32 ~ 104

Operating Temperature (°C)0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )20 ~ 90

Operating Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)

Storage Temperature (°F)-4 ~ 122

Storage Temperature (°C)-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )10 ~ 90

Storage Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)

Online Thermal Dissipation ( BTU/hr )1126

Audible Noise at 1.5M from Surface of Unit ( dBA )45

Certifications

CertificationsCE, RCM

RoHSYes

WARRANTY

Product Warranty Period ( Year )2

Battery Warranty Period ( Year )2
