APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, Without Network Card support

SKU: SMV750CAI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
750VA/525W line interactive pure sine wave tower UPS
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels

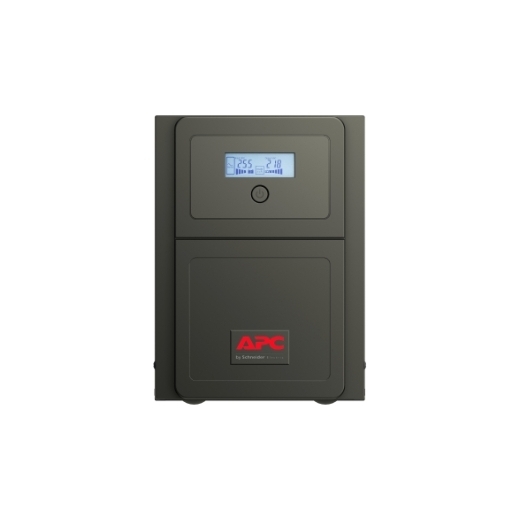

Easy-to-read LCD interface for detailed and accurate information on UPS status
USB and serial ports for UPS management

Description

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions.
This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions.

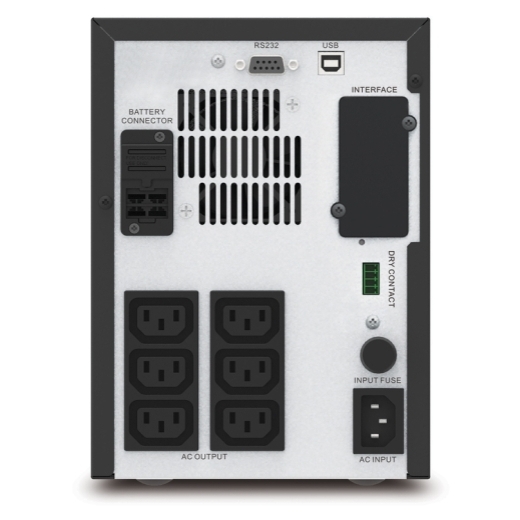

The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets.
The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management.
The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management.
The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty.
Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale.
The UPS is compatible with the replacement battery APCRBCV206.

Product Images

Downloads & Documents

Compatible Products & Accessories

Replacement battery

APCRBCV206

APC Replacement Battery Cartridge, VRLA, 7Ah, 24V DC, 2-year...

(SMV750CAI)

Specifications - SMV750CAI

Overview

Presentation	Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Lead time	Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input voltage	220 V 240 V
Input Connection Type	IEC 60320 C14
Input voltage limits	165...290 V
Network frequency	45...65 Hz +/- 1 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	525 W
rated power in VA	750 VA
Output connection type	6 IEC 60320 C13
Crest factor	3 : 1
Maximum configurable power in VA	750 VA
Maximum configurable power in W	525 W
Transfer time	2-6 ms typical : 12 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 1 Hz unsynchronised

Complementary

Battery type	Lead-acid internal included
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	Serial port USB port
Surge energy rate	190 J
Number of cables	1
Colour	Black
Height	220 mm
Width	160 mm
Depth	410 mm
Net weight	13.6 kg
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	No
Provided equipment	Documentation CD User manual USB cable
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Easy UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE UKCA EAC
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-10…40 °C
Storage altitude	0…15000 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	45 dBA
Operating altitude	0...3000 m

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	24 V
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	4 h
Battery life	3…5 year(s)
Replacement battery	APCRBCV206
Battery charger power	33 W rated
