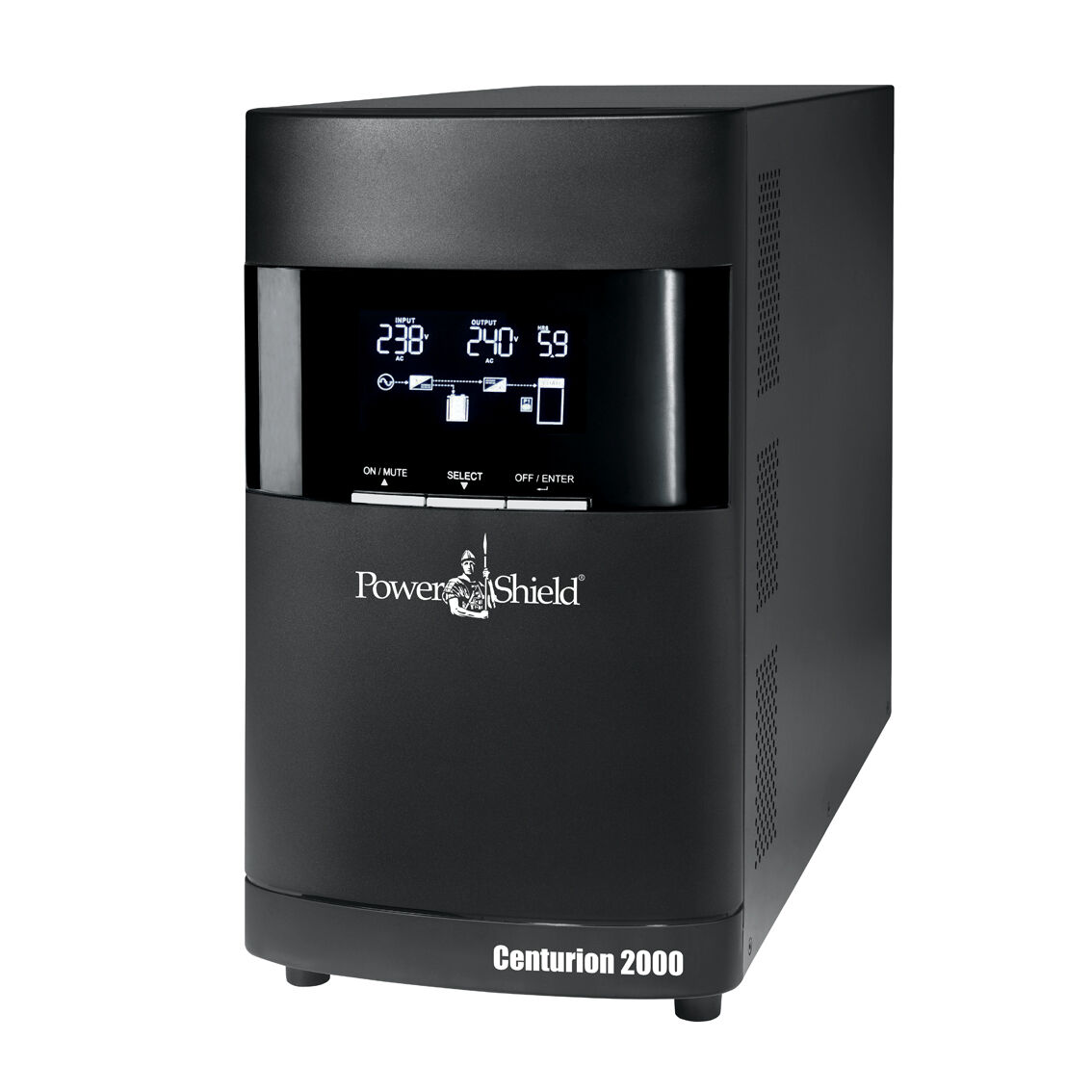

PowerShield Centurion 2000VA True On-Line Tower UPS PSCE2000
Emergency power off function (EPO)
-
SKU: PSCE2000
- Pick Up Available
- Australian Warranty
- Checkout Securely
The PowerShield Centurion is designed to electrically protect, servers, communication, industrial, medical and other mission critical equipment. The PowerShield Centurion is a True On-Line Double Conversion UPS designed to guarantee trouble free operation of protected equipment in harsh electrical environments. Versatile management and hardware options offer the flexibility to build up a power protection solution to fit any application.The PowerShield Centurion range includes programmable outlets so less important loads can automatically shed sometime during battery backup. This will leave additional battery back-up reserve for the equipment that is most critical.
- 2000VA / 1600 Watts
- True On-Line Double Conversion
- Wide input voltage range (110-300 VAC)
- Input power factor correction 0.98
- 50Hz/ 60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Eco-mode operation for energy efficiency
- Generator compatible
- Extended battery backup times with daisy chained battery modules
- Communication: USB, RS232
- Optional SNMP and AS400 dry relays available
- Optional EMBS - External Maintenance Bypass Switch available for all models
- N + X parallel redundancy available for 6kVA & 10kVA models
- Monitoring and Shutdown Software included
(PSCE2000)
Technical Details
| Model Number | PSCE2000 |
|---|---|
| Capacity | 2000VA / 1800W |
| Topology | True online double-conversion |
| Voltage | 200 / 208 / 220 / 230 / 240 Vac |
| Voltage Range | 110-300 VAC ?± 5% at 50% load 160-300 VAC ?± 5% at 100% load |
| Frequency Range | 40Hz~70Hz |
| Output Voltage | 240Vac (200 / 208 / 220 / 230 / 240 Vac - Selectable) |
| Frequency | 47~53Hz or 57~63Hz (Auto detect) |
| Frequency Range (Batt. Mode) | 50Hz ?± 0.1Hz or 60Hz ?± 0.1Hz |
| Transfer Time | 4 ms (typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| Australian Outlets - UPS & Surge Protection | 4 |
| Battery Type & Number | 12V*9AH(x6) |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Full Protection | 1248 Joules / 39000 Amps |
| Interface | USB and RS232 as standard. Intelligent slot for PSSNMPV4 or PSAS400 dry contact or PSMBUS |
| Software | Power Shield Netguard?® Software - supports Windows based operating Systems, Linux, Unix & Mac |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indica |
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
| Dimension L x W x H (mm) | 396 x 145 x 240 |
| Net Weight (kgs) | 25.8 |
| Temperature | 0 - 40?°C |
| Humidity | 20 - 95% (RH non-condensing) |
| Noise Level | Less than 50dBA @ 1metre |
| Safety/EMC | EN62040 - 1 - 1 2003, IEC60950 - 1 - 1 |
| RoHS | Directive 2001 / 65 / EU |
| Warranty | 2 Year ARW |
| SKU | PSCE2000 |
| Barcode # | 9346909000200 |
| Brand | PowerShield |
| Shipping Weight | 30.1000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.570m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.086526000m3 |
