APC Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
Model # AP7821B
-
SKU: AP7821B
- Pick Up Available
- Australian Warranty
- Checkout Securely
Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
SKU: AP7821B | Brand: APC Brand
Key Features
- 1-Year Secure Network Management Card subscription included
- Provides 8 IEC 60320 C13 outlets for comprehensive power distribution
- Horizontal mounting to fit various rack configurations, conserving space
- Supports up to 16A, 208V to 230V power distribution, ensuring reliable power delivery
- Includes a cord retention bracket and toolless mounting kit for quick setup
Description
It is a metered rack PDU designed for 1U horizontal mounting.
It supports a maximum current of 16A and operates at 208-230V.
The PDU features 8 IEC 60320 C13 outlets and an 8.2-foot power cord with an IEC 60320 C20 plug.
It has a load capacity of 3300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

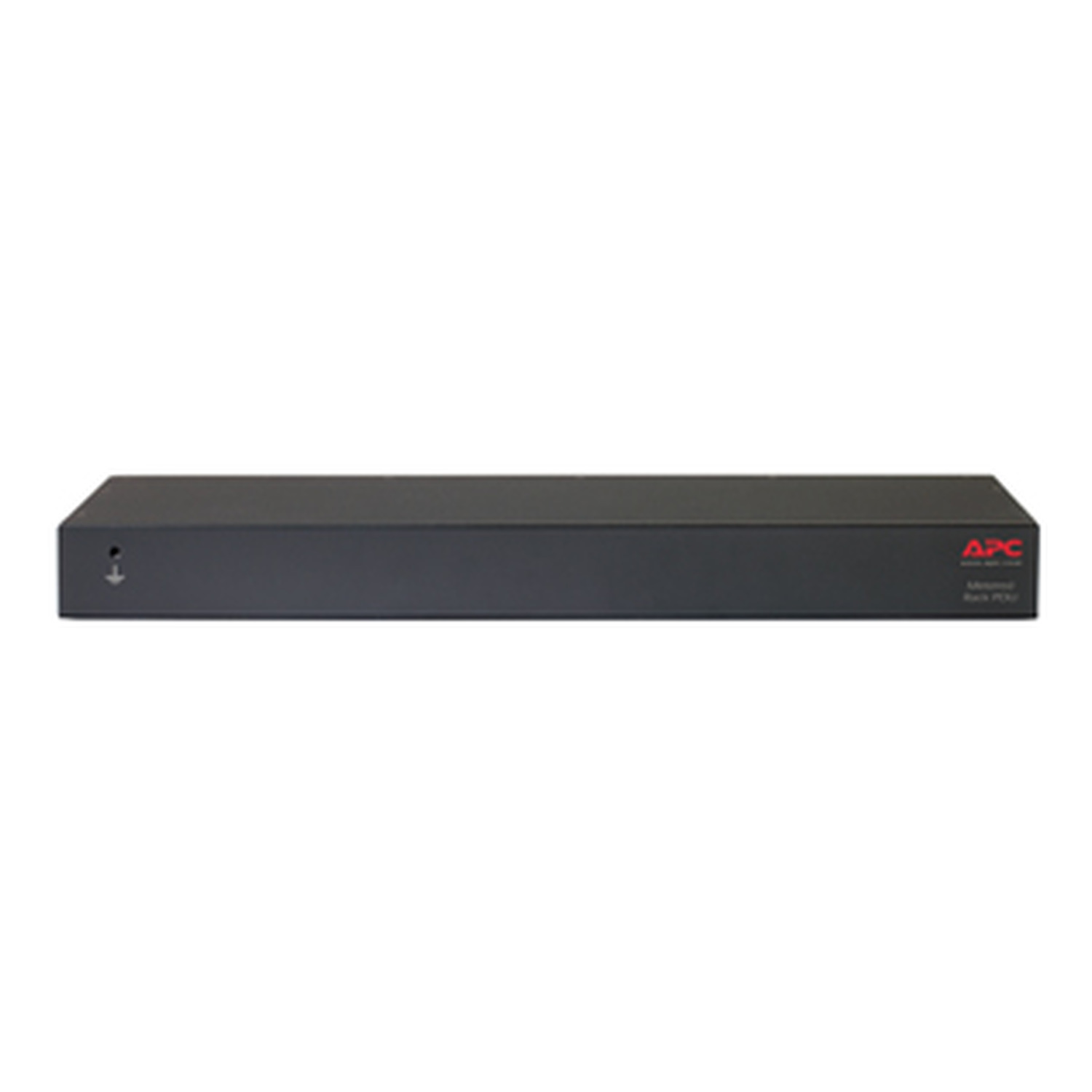

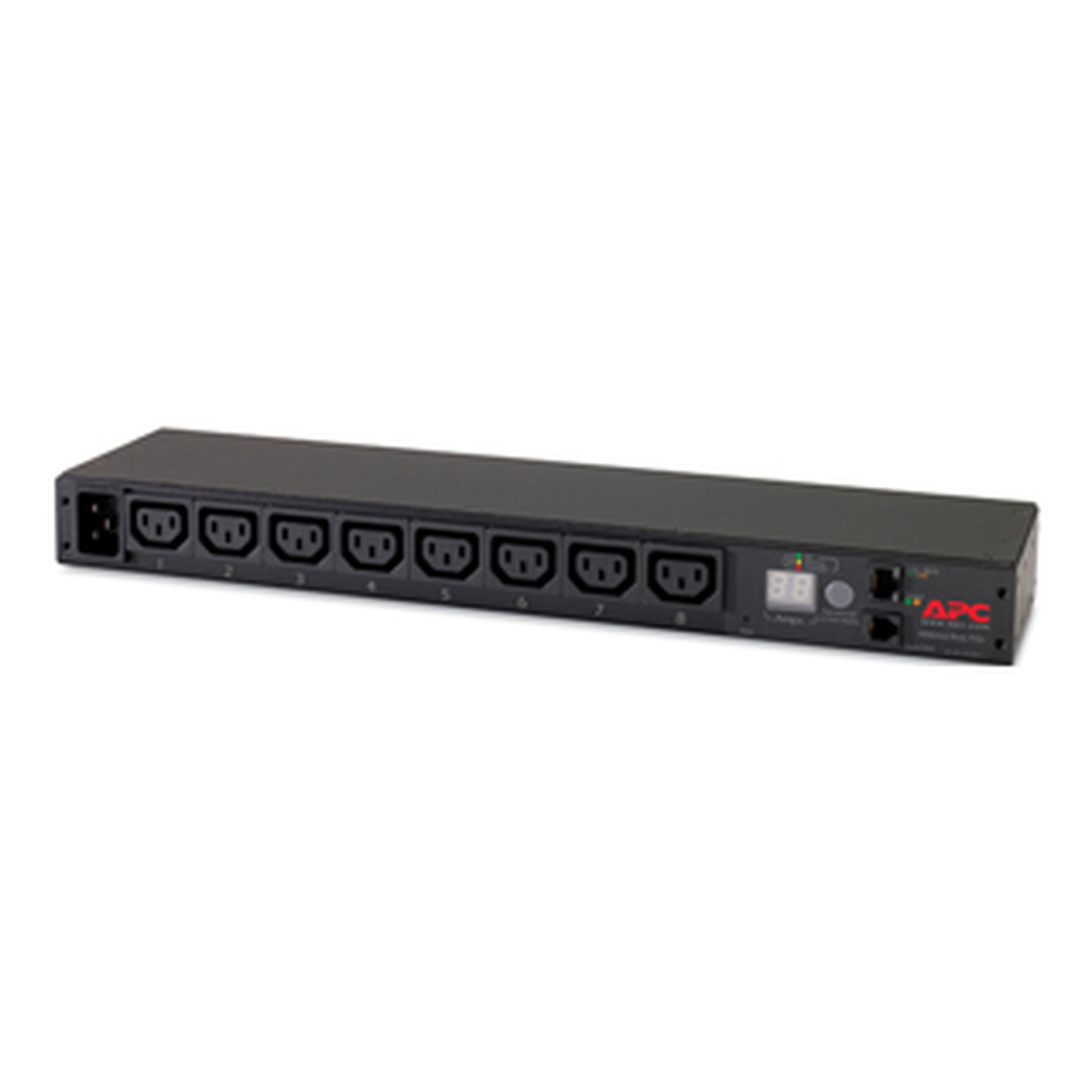

Product Images
Downloads & Documents
× ![]()
(AP7821B)
Specifications - AP7821B
Overview
| Lead time | Usually in Stock |
Main
| Product or component type | PDU |
| PDU type | Metered |
| Cord length | 2.4 m |
| Provided equipment | Cord retention bracket(s) Installation guide Rack mounting brackets User manual |
Complementary
| Input Voltage | 200 V 208 V 230 V |
| Height | 44 mm |
| Width | 444 mm |
| Output Voltage | 208 V 230 V |
| Depth | 102 mm |
| Net weight | 1.74 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| [In] rated current | 16 A |
| Input current limits | 20 A |
| Load capacity | 3300 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 8 IEC 60320 C13 |
Environment
| Product certifications | cUL listed C-Tick CE CSA GOST UL listed VCCI VDE |
| Standards | FCC part 15 class A ICES-003 UL 60950 |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.4 cm |
| Package 1 Width | 33.7 cm |
| Package 1 Length | 47 cm |
| Package 1 Weight | 2.92 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | AP7821B |
| Barcode # | 731304331513 |
| Brand | APC |
| Shipping Weight | 3.3900kg |
| Shipping Width | 0.007m |
| Shipping Height | 0.049m |
| Shipping Length | 0.034m |
