ATEN SKU PE4104G-AT-G

ATEN PE4104G-AT-G 4-Outlet IP Control Box

The ATEN PE4104G-AT-G provides secure, centralised remote power control for four IEC C13 outlets through a TCP/IP connection.

Individual or grouped outlet switching, configurable delay sequencing and eco DC software support remote recovery and controlled startup of connected equipment.

4 x IEC C13 outletsRemote outlet switching100240VAC2-year warrantyDeviceDeal authorised ATEN reseller

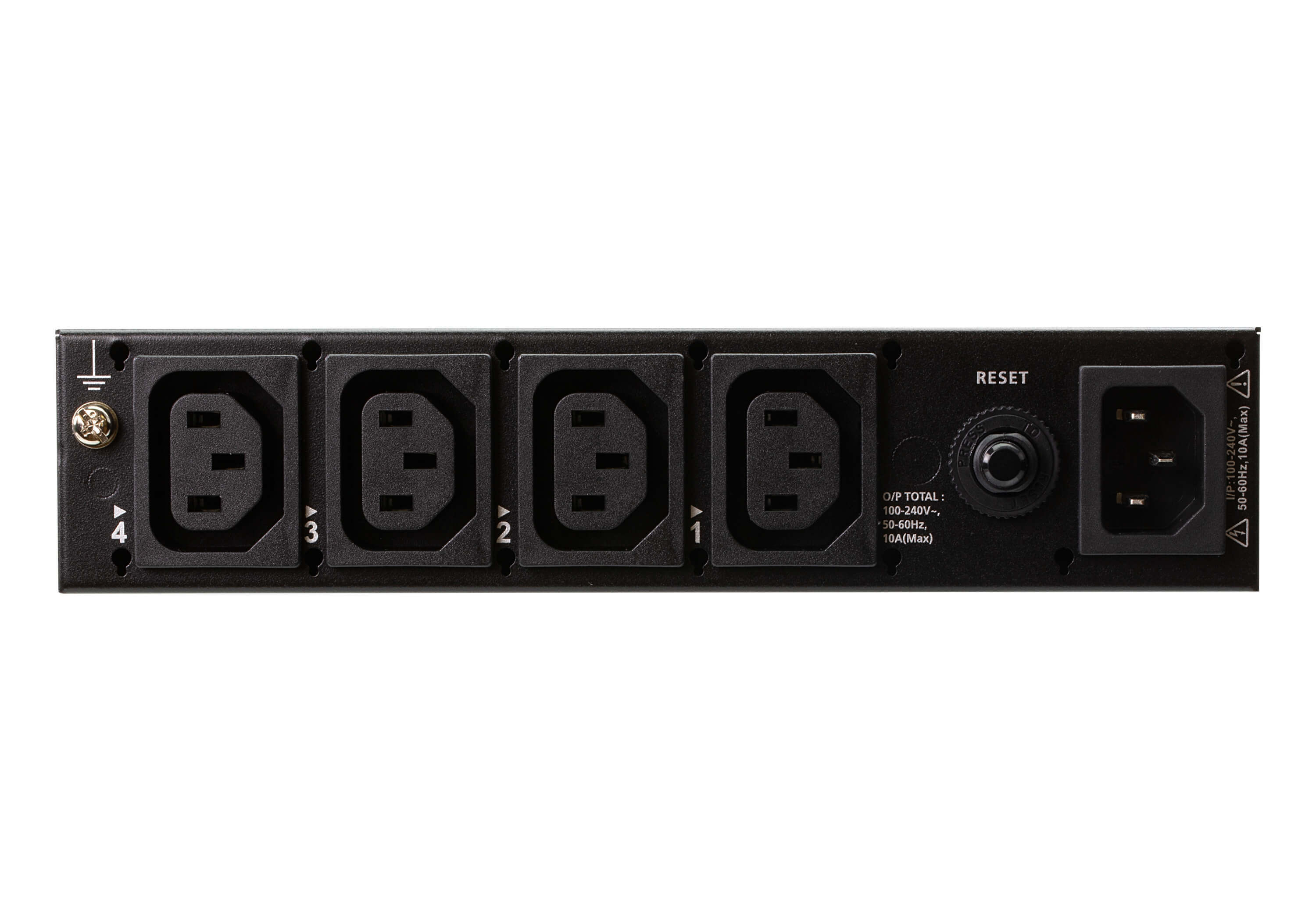

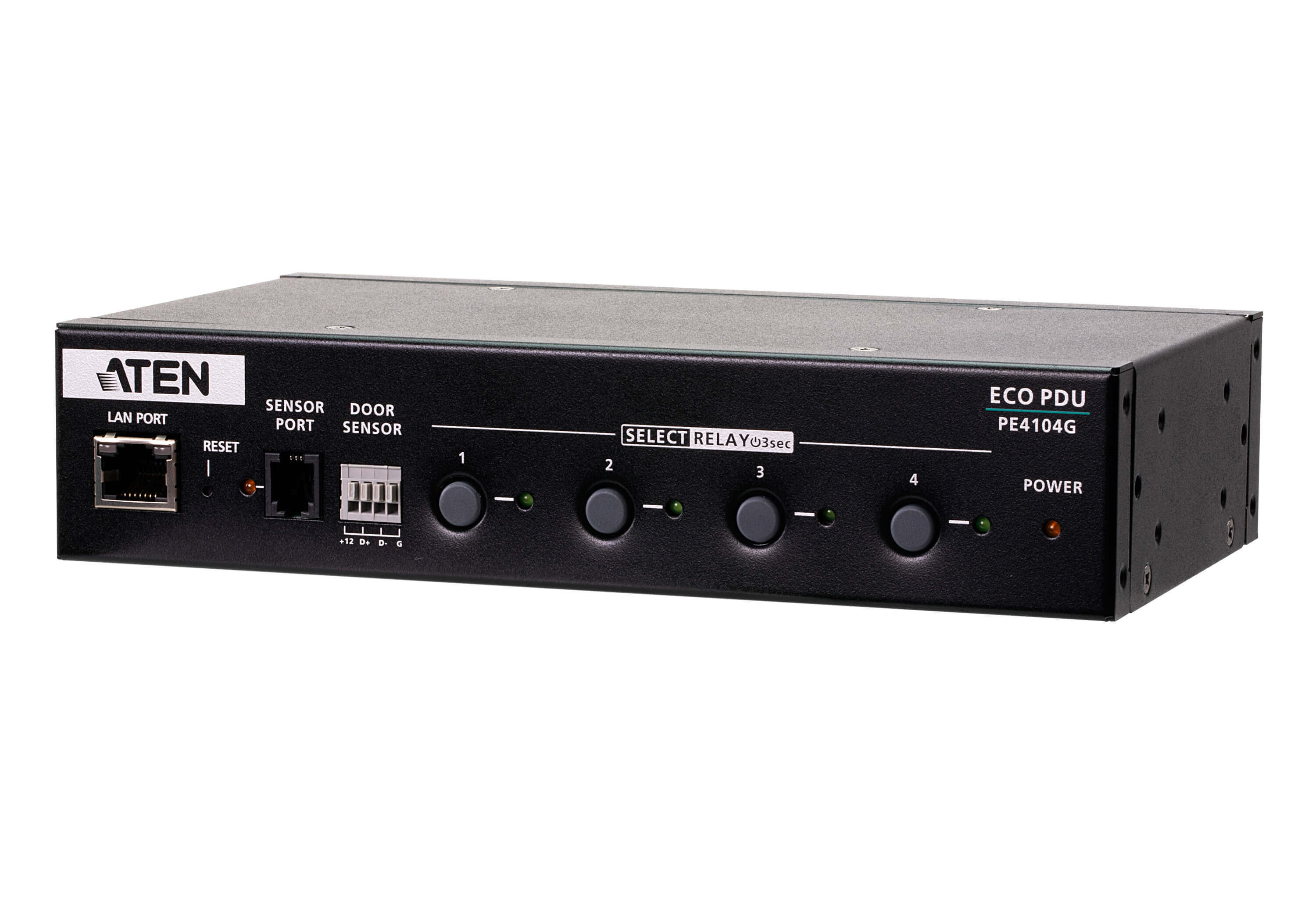

ATEN PE4104G-AT-G 4-Outlet IP Control Box shown in the supplied second product image

Product overview

Remote power control

Administrators can switch outlets on or off and set delay times from practically any location through TCP/IP connectivity.

Sequenced startup

The source describes power sequencing to reduce inrush risk and support system reliability.

Flexible installation

Its compact enclosure supports desktop or rack mounting in confined spaces.

Source review: The source lists outlet switching but no electrical metering. Operating and storage temperature ranges are supplied, although the unit symbol is corrupted in the source table.

Frequently asked questions

How many outlets does the PE4104G provide?

The source lists four IEC 320 C13 outlets.

Can outlets be controlled remotely?

Yes. The source describes TCP/IP remote switching for individual outlets or outlet groups.

Does it provide power metering?

No. The supplied specification marks metering as no.

Can it be rack mounted?

Yes. The description lists both desk and rack mounting.

What warranty is supplied?

The source lists a two-year ATEN manufacturer warranty.

(PE4104G-AT-G)

Features

ATEN PE4104G-AT-G 4-Outlet IP Control Box

Remote management

TCP/IP remote control
Individual or grouped outlet switching
Configurable delay times
eco DC software support

Power

4 x IEC 320 C13 outlets
IEC C14 input
100240VAC
10A maximum total current
Power sequencing

Deployment

Desk or rack mounting
Compact design
Digital signage and video walls
Routers, servers and cameras

This model provides switched outlet control; the supplied specification does not list electrical metering.

Technical specifications

ATEN PE4104G-AT-G 4-Outlet IP Control Box

Product details
Brand	ATEN
Model / SKU	PE4104G-AT-G
Product type	4-outlet IP control box
Electrical
Nominal input / output voltage	100240VAC
Maximum input current	10A
Input frequency	5060Hz
Input connection	IEC C14
Input power	2400VA maximum
Outlets	4 x IEC 320 C13
Maximum current	10A per outlet; 10A bank; 10A total
Breaker	Yes, UL1077
Metering	No
Outlet switching	Yes
Physical and environment
Power consumption	AC110V: 3.1W / 20BTU; AC220V: 3.5W / 22BTU
Dimensions (L x W x H)	20.00 x 12.81 x 4.40cm
Weight	0.90kg
Power cord length	3m
Operating / storage temperature	050 / -2060; unit symbol is corrupted in the supplied table
Humidity	080% RH, non-condensing
Compliance	CE-EMC; CE-LVD

SKU	PE4104G-AT-G
Barcode #	4710469340086
Brand	Aten
Shipping Weight	1.6100kg

Warranty information

ATEN PE4104G-AT-G 4-Outlet IP Control Box

2-Year ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
