APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

SKU: AP8886 | Brand: APC Brand

Key Features

Ideal for colocation, large or remote data center operators
Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
Enables improved energy efficiency and scope 1 emissions tracking
Easily monitor and manage through EcoStruxure IT and other platforms
1-Year Secure Network Management Card subscription included

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection.
The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m.
User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads.
Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership.
Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

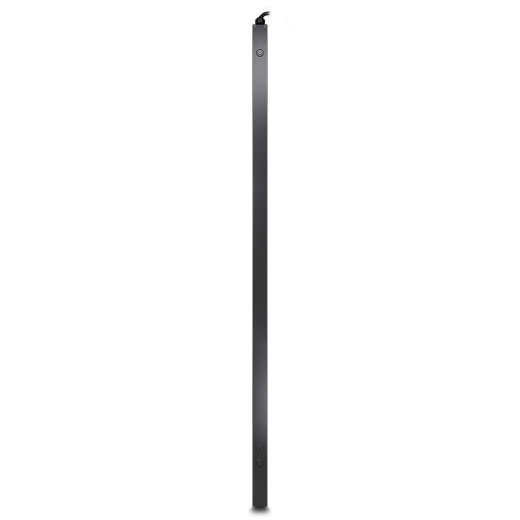

Product Images

Downloads & Documents

Compatible Products & Accessories

Accessories

AP8000BLU

Rack PDU Blue label kit (Quantity 10 units)

AP8000RED

Rack PDU Red label kit (Quantity 10 units)

Cables

AP8712R

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 0.6m

AP8712S

Power Cord Kit (6 ea), Locking, C19 to C20, 0.6m

AP8714R

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.2m

AP8714S

Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m

AP8716R

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m

AP8716S

Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m

AP8760

Power Cord, Locking C19 to C20, 3.0m

AP8706R-WW

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m

AP8704S-WW

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

AP8704R-WW

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m

AP8702S-WW

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

AP8702R-WW

Power Cord Kit (6 ea), Locking, C13 TO C14 (90 Degree), 0.6m

Mounting Bracket

AR7711

NetShelter Zero U Accessory Mounting Bracket

Sensors

AP9335T

Wired, Sensor, NetBotz, Temperature, 13 ft

AP9335TH

APC Temperature & Humidity Sensor

(AP8886)

Specifications - AP8886

Overview

Presentation

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower the total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Lead time

Usually in Stock

Main

Colour	Black
Product or component type	PDU
PDU type	Metered
Cord length	1.82 m
Provided equipment	Installation guide Rack mounting brackets Serial configuration cable Safety guide

Complementary

Input Voltage	400 V 3 phases
Height	1829 mm
Width	56 mm
Output Voltage	230 V
Depth	51 mm
Net weight	8.72 kg
Mounting location	Side
Mounting preference	No preference

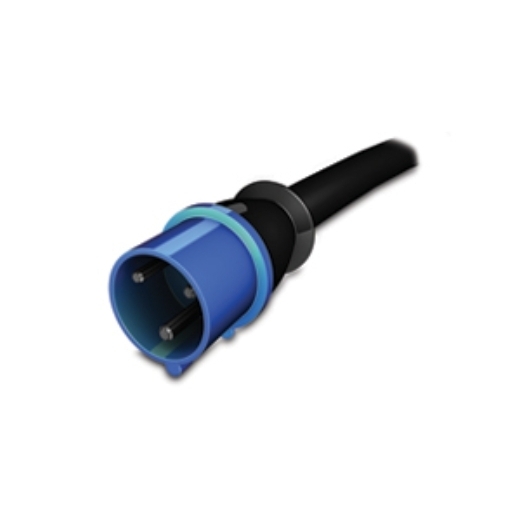

Input Plug Type	IEC 60309 32 A 3P + N + E
Mounting mode	Rack-mounted
Rack units	0U
Mounting position	Vertical
Max line current	32 A
Input current limits	32 A
Load capacity	22000 VA
Network frequency	50/60 Hz
Outlet type and quantity	30 IEC 60320 C13 12 IEC 60320 C19

Environment

Product certifications	VCCI class A VDE
Standards	EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 FCC part 15 class A ICES-003
Ambient air temperature for operation	-5…60 °C
Relative humidity	5…95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-25…65 °C
Storage Relative Humidity	5…95 %
Storage altitude	0…15240 m

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.00 cm
Package 1 Width	16.40 cm
Package 1 Length	206.00 cm
Package 1 Weight	9.500 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	5
Package 2 Height	23.000 cm
Package 2 Width	120.000 cm
Package 2 Length	202.000 cm
Package 2 Weight	66.000 kg
