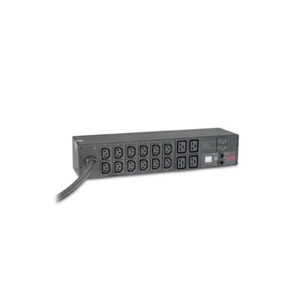

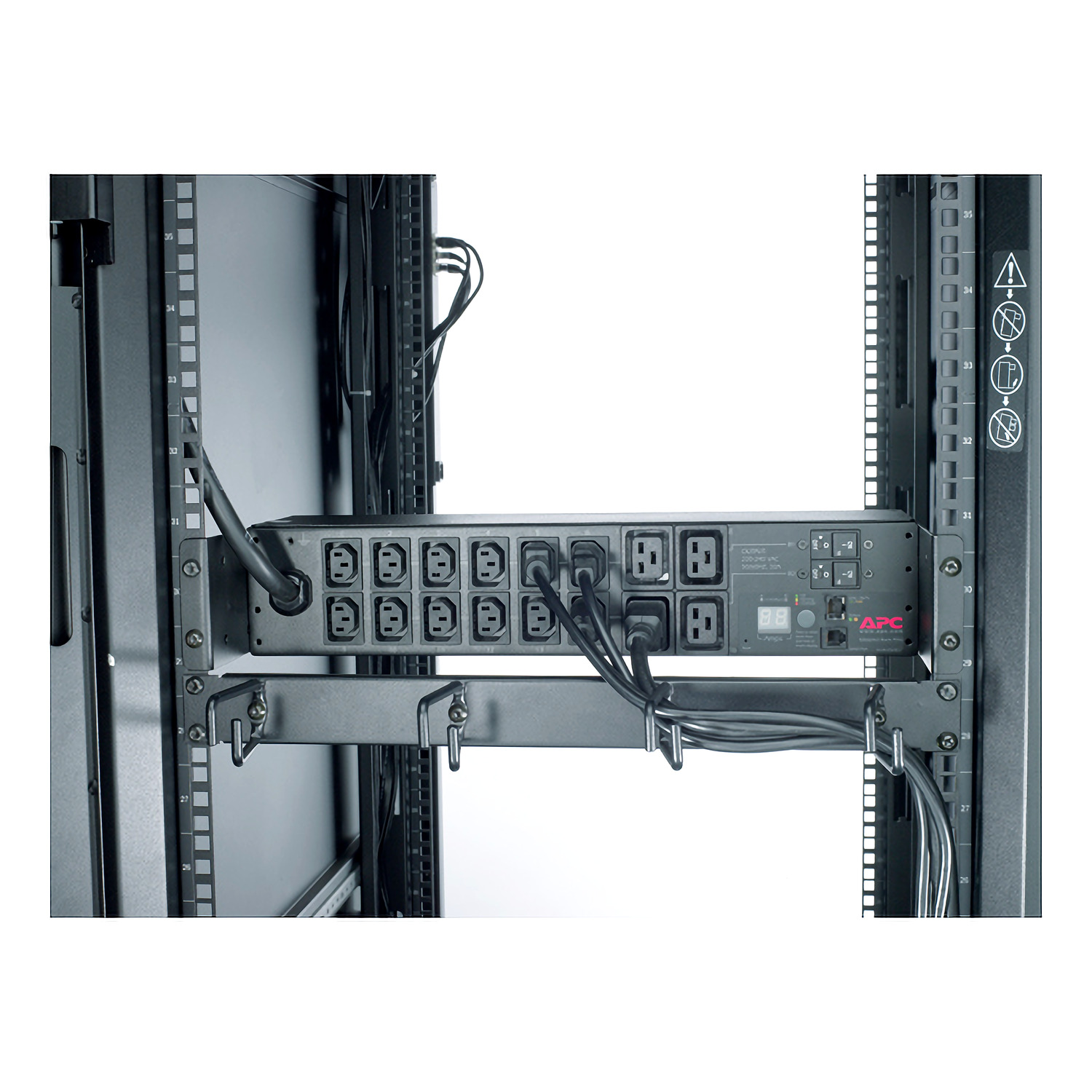

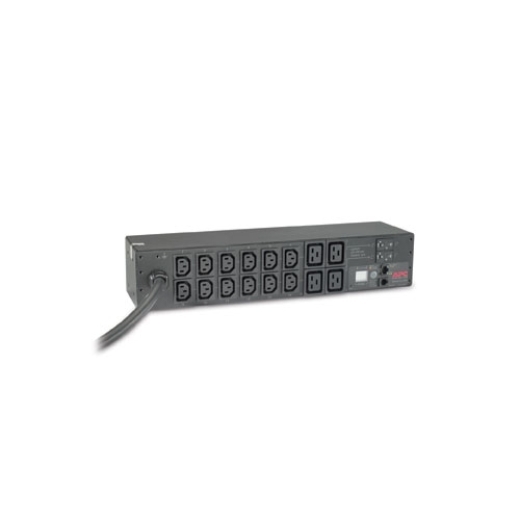

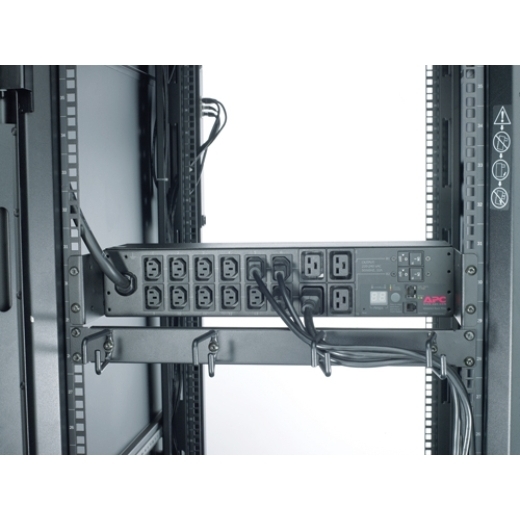

APC NetShelter Metered Rack PDU, 2U, 1 phase, 7.4kW 230V 32A, 12 C13 and 4 C19 outlets, IEC 309 inlet

SKU: AP7822B | Brand: APC Brand

Key Features

Ideal for larger, staffed sites and critical applications
Helps balance loads by measuring and recording amps with +/- 5% accuracy
Empowers IT staff with real-time remote monitoring of connected loads
Alerts of potential circuit overloads with user-defined alarms
1-Year Secure Network Management Card subscription included

Description

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting.
This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment.
The historical reporting enables users to optimize energy use and plan for capacity with confidence.
This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface.
Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets.
This unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Product Images

Downloads & Documents

(AP7822B)

Specifications - AP7822B

Overview

Lead time

Usually in Stock

Main

Product or component type	PDU
PDU type	Metered
Cord length	3.65 m
Number of cables	1
Provided equipment	Cord retention bracket(s) Installation guide Rack mounting brackets User manual

Complementary

Input Voltage	200 V 208 V 230 V
Height	88 mm
Width	444 mm
Output Voltage	230 V
Depth	112 mm
Net weight	3.36 kg
Mounting location	Front Rear
Mounting preference	No preference
Input Plug Type	IEC 60309 32 A 2P + E
Mounting mode	Rack-mounted
Rack units	2U
Mounting position	Horizontal
Input current limits	32 A
Load capacity	7400 VA
Network frequency	50/60 Hz
Outlet type and quantity	12 IEC 60320 C13 4 IEC 60320 C19

Environment

Product certifications	C-Tick CE GOST IRAM MIC VDE VCCI
Standards	FCC part 15 class A ICES-003
Ambient air temperature for operation	-5…45 °C
Relative humidity	5…95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-25…65 °C
Storage Relative Humidity	5…95 %
Storage altitude	0…15240 m

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	14 cm
Package 1 Width	36.8 cm
Package 1 Length	50.8 cm
Package 1 Weight	5.42 kg

Contractual warranty

Warranty (in months)

SKU	AP7822B
Barcode #	731304331520
Brand	APC
Shipping Weight	6.6800kg
Shipping Width	0.014m
Shipping Height	0.051m
Shipping Length	0.037m
