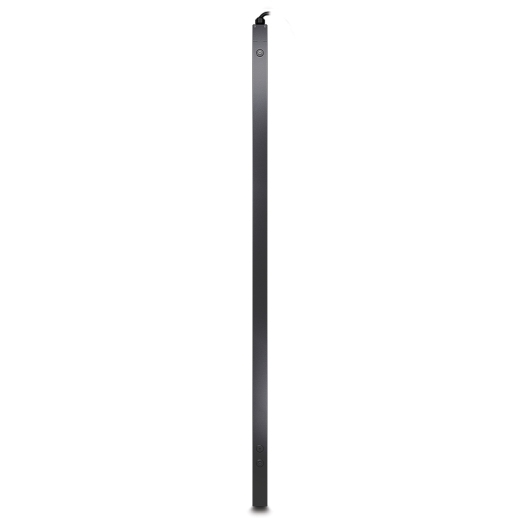

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
Model # AP8653
-
SKU: AP8653
- Pick Up Available
- Australian Warranty
- Checkout Securely
APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 32A, 230V, 21 C13 and 3 C19 outlet
SKU: AP8653 | Brand: APC Brand
Key Features
- 1-Year Secure Network Management Card subscription included
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering
Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets
Power sequencing delays allow users to define the order in which to power up or down attached equipment
Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding
Current metering provides real-time remote monitoring of connected loads
Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
User-defined alarms warn of potential circuit overloads before critical IT failures occur
Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Product Images
Downloads & Documents
Compatible Products & Accessories
Accessories
Cables
AP8712R
Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 0.6m
AP8712S
Power Cord Kit (6 ea), Locking, C19 to C20, 0.6m
AP8714R
Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.2m
AP8714S
Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m
AP8716R
Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m
AP8716S
Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m
AP8760
Power Cord, Locking C19 to C20, 3.0m
AP8706S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m
AP8706R-WW
Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m
AP8704S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m
AP8704R-WW
Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m
AP8702S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m
Mounting Bracket
(AP8653)
Specifications - AP8653
Overview
| Presentation | APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager. |
| Lead time | Usually in Stock |
Main
| Colour | Black |
| Product or component type | PDU |
| PDU type | Metered outlet |
| Cord length | 2.9 m |
| Number of cables | 1 |
| Provided equipment | CAN port terminator Installation guide Rack mounting brackets Safety guide Serial configuration cable |
Complementary
| Input Voltage | 200 V 208 V 230 V |
| Height | 1829 mm |
| Width | 56 mm |
| Output Voltage | 230 V |
| Depth | 51 mm |
| Net weight | 8.23 kg |
| Mounting location | Side |
| Mounting preference | No preference |

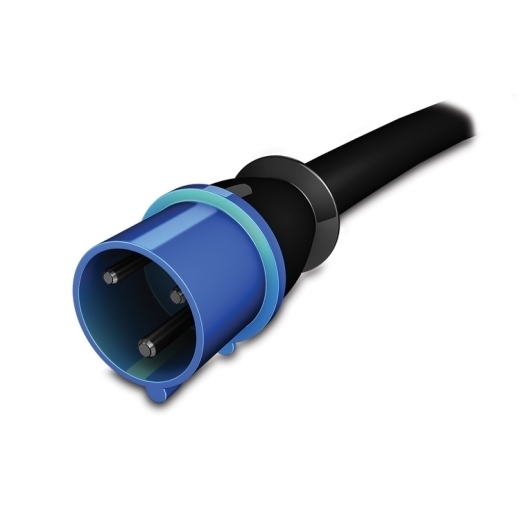

| Input Plug Type | IEC 60309 32 A 2P + E |
| Mounting mode | Rack-mounted |
| Rack units | 0U |
| USB compatible | No |
| Mounting position | Vertical |
| permissible voltage | 220…240 V |
| Max line current | 32 A |
| Input current limits | 32 A |
| Load capacity | 7400 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 21 IEC 60320 C13 3 IEC 60320 C19 |
Environment
| Product certifications | VDE |
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 |
| Ambient air temperature for operation | -5…60 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 203.8 cm |
| Package 1 Width | 16.2 cm |
| Package 1 Length | 11.8 cm |
| Package 1 Weight | 10.5 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | AP8653 |
| Barcode # | 731304276982 |
| Brand | APC |
| Shipping Weight | 10.8000kg |
| Shipping Width | 0.013m |
| Shipping Height | 0.220m |
| Shipping Length | 0.017m |
