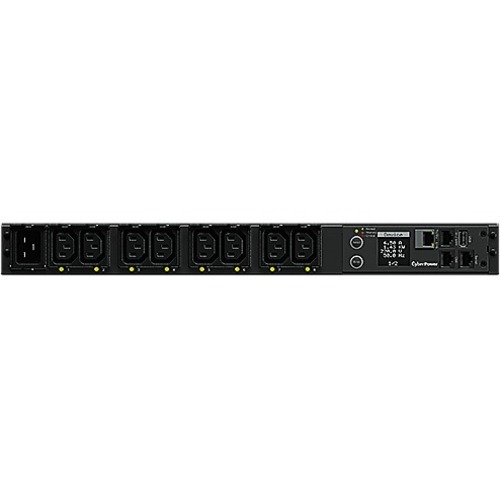

CyberPower PDU41005 SWITCHED EPDU 1RU 16AMP 2 YRS WTY
Model # PDU41005
-
SKU: PDU41005
- Pick Up Available
- Australian Warranty
- Checkout Securely
Power Distribution PDU41005
Overview
CyberPower PDU41005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor, which can provide real-time temperature and humidity monitoring in an IT center.
Features
- Real-time Local/Remote Monitoring and Switching
- Work under High Temperature
- ±1% Measurement Accuracy
- Digital Real-time Load Display
- Hot-swappable LCD Design
- LED Status Indicator
- Support Environmental Sensor
- PowerPanel Management Software
- Cord Retention Tray
- Controllable Receptacles with Power Sequencing
- Ultra Low Power Consumption
- Industrial-grade Metal Housing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
What's in the Box
- PDU41005
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
(PDU41005)
Real-time Remote Power Switching of Individual Outlet
Through real-time remote power switching of individual outlet, users are able to remotely manage each device's outlet. Every outlet can be switched on and off to remotely control connected equipment, which enables users to optimize data center management through centralized control.
Controllable Receptacles with Power Sequencing
The built-in controllable receptacles with power sequencing provide flexible power controlling capability. Users can remotely schedule the sequential orders to turn on, off or reboot individual receptacle.
Overload Protection
The overload protection can automatically cut off devices' power when the loading exceeds the product's limit. Therefore, this design prevents and minimizes the damages caused by overcurrent.
Work under High Temperature
In a data center, the product is exposed to high temperature, so it is important for the product to withstand over temperature. The product is able to work under high temperature (45-60 °C), keeping optimal system operation.
±1% Measurement Accuracy
The product provides accurate statistics with ±1% measurement accuracy. Trustworthy statistics include values on voltages, currents or watts. Based on the precise information, users can perform smart power management.
Ultra-low Power Consumption
The product comes with ultra-low power consumption design, with typical power consumption of 4.5W, effectively enhancing the efficiency of the system and saving electricity costs.
Industrial-grade Metal Housing
The industrial-grade metal housing is designed with sturdy and durable material to protect internal components, resist damages within challenging industrial environments, and prolong the lifespan of the product.
User Configurable Color LCD
The featured user configurable color LCD allows users to change the colors of the LCD screens, and enabling convenient classification and identification of PDUs based on their applications.
Hot-swappable LCD Design
The featured hot-swappable LCD design allows users to safely remove and replace LCD panel without having to shut down the system, enabling convenient maintenance.
Rotatable LCD Design
With the rotatable LCD design, the product can automatically rotate the screen to ensure proper viewing orientation, whether the product is placed in vertical or horizontal position.
LED Status Indicator
With LED status indicator, the product's operational status can be displayed. The LED status indicator shows clear status of the system, so that users can easily monitor the power status.
Firmware Upgrade via USB
Users can conveniently upgrade firmware to the newest version by downloading it through the USB port, ensuring optimal system operation.
Support Environmental Sensor
The environmental sensor can work with the product to provide real-time temperature and humidity information. It connects via the Ethernet module, allowing users to monitor the environmental conditions.
PowerPanel Business Software
PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V.
PowerPanel Enterprise Software
PowerPanel Management Software is for monitoring and managing the power equipment, environment and energy usage in the data center. It is easy to deploy and use, offering the real-time PUE, dynamic dashboards, periodic reports and instant alarms to keep your data center up and running.
Adjustable Mounting Brackets
With multiple holes, the adjustable mounting brackets provide different mounting options for users when installing PDU and ATS units, allowing for flexible installations.
Cord Retention Tray
The product comes with cord retention tray. When setting up IT equipment in racks, users can fasten the power cords to the cord retention tray, preventing cables from getting tangled.
IEC Receptacle Locking
The IEC receptacle locking prevents the cable from getting loose. The IEC receptacle locking secures the cables connected to the outlets, enhancing the stability of cable connection.
General
Input
Output
Management & Communications
Physical
Physical Size
Shipping Dimensions
Environmental
Certifications
WARRANTY
| SKU | PDU41005 |
| Barcode # | 4712856276701 |
| Brand | CYBERPOWER |
| Shipping Weight | 3.9100kg |
