APC Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13
Model # AP9572
-
SKU: AP9572
Don't pay: $501.00
$485.00
SAVE $16.00 (3%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

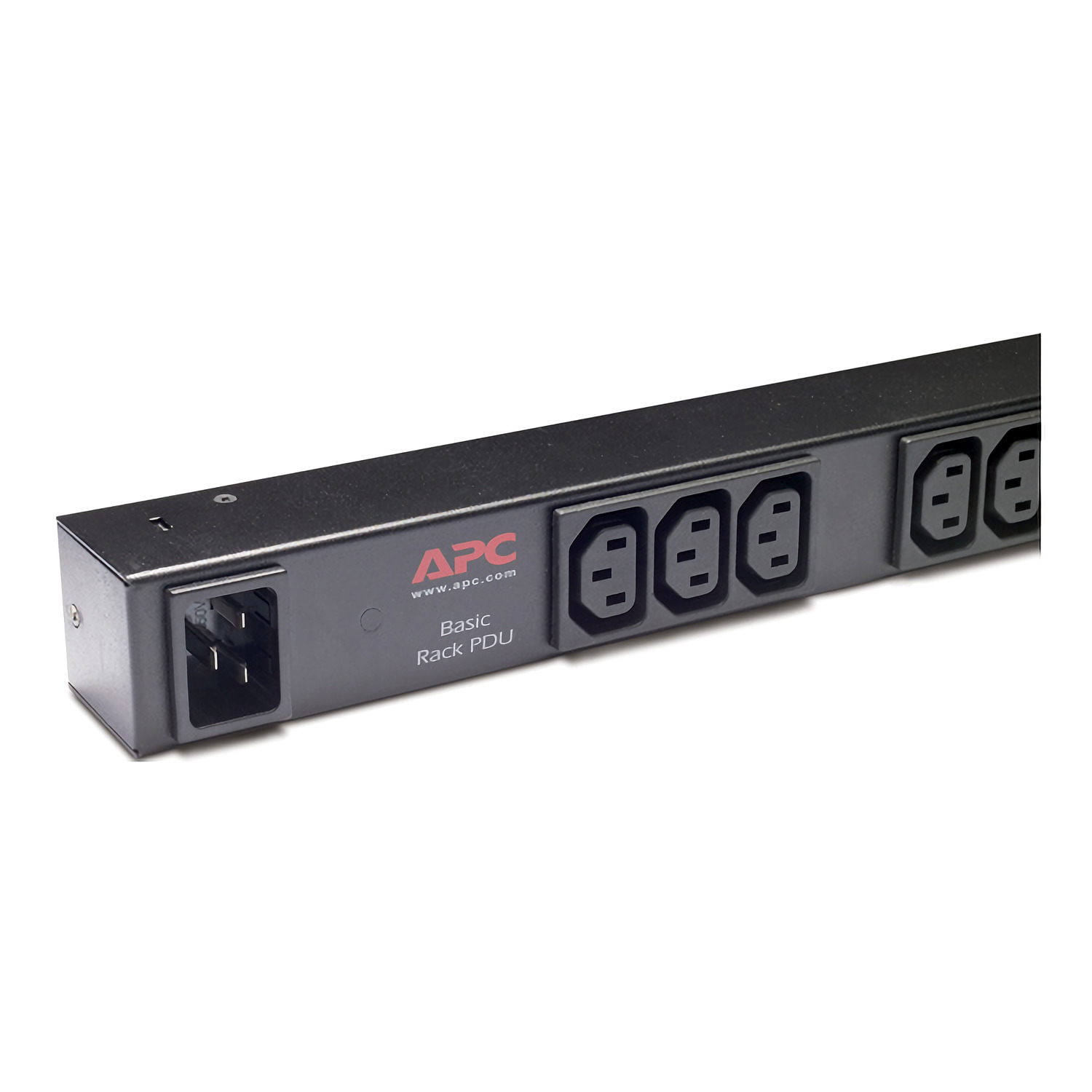

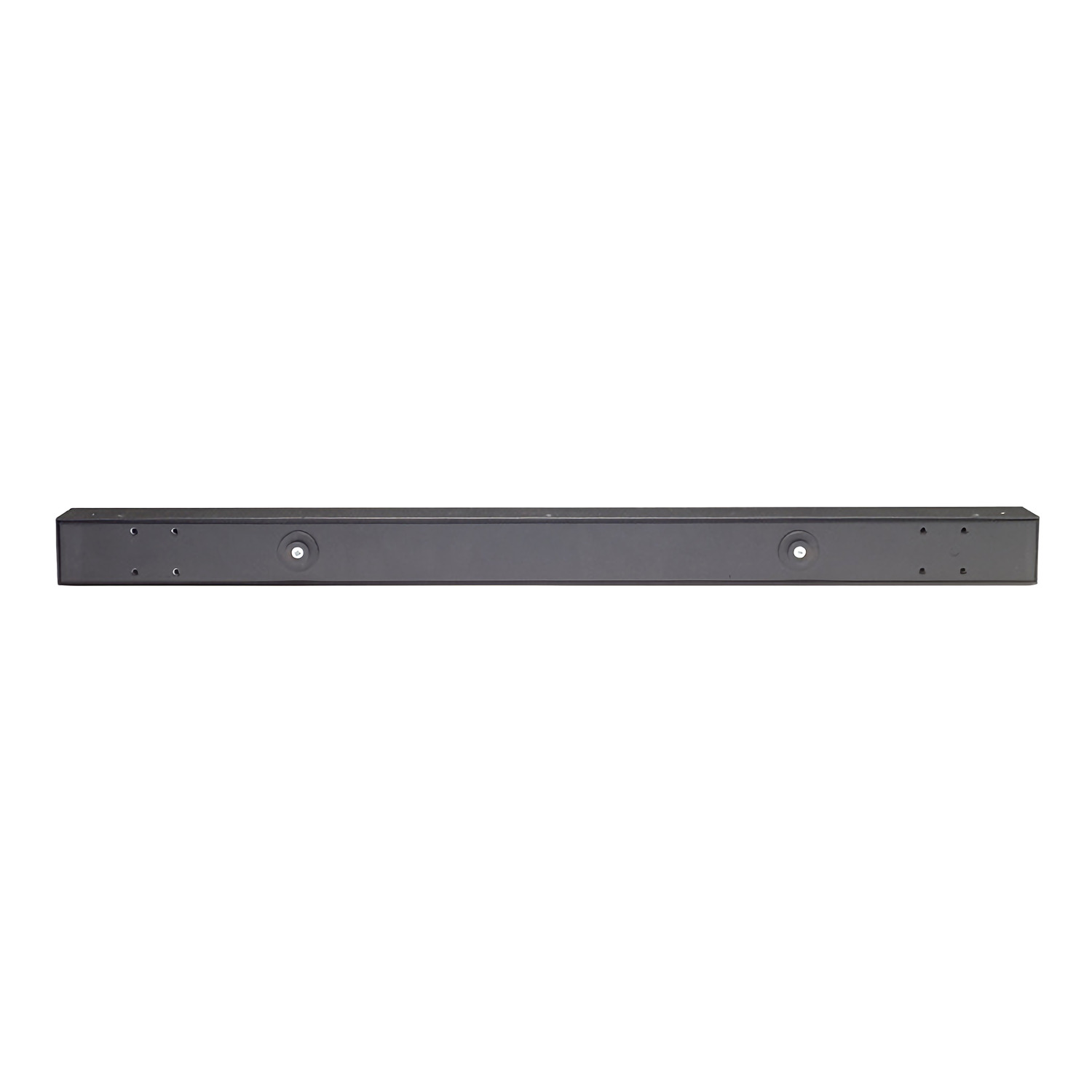

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13
SKU: AP9572 | Brand: APC Brand
Key Features
- Features 15 C13 outlets for comprehensive power distribution
- Vertical mounting to save valuable rack space
- Supports up to 16A, 208 and 230V power distribution
- Includes toolless mounting kit for quick setup
Description
It is a basic rack PDU with a Zero U vertical mounting design.
It supports a maximum input current of 16A and operates at 208 and 230V.
The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment.
It includes an 8.2-foot power cord with an IEC 60320 C20 plug.
The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
Product Images
Downloads & Documents
Compatible Products & Accessories
× ![]()
(AP9572)
Specifications - AP9572
Overview
| Lead time | Usually in Stock |
Main
| Colour | Black |
| Product or component type | PDU |
| PDU type | Basic |
| Cord length | 2.4 m |
| Number of cables | 1 |
| Provided equipment | Rack mounting brackets Toolless mounting kit User manual |
Complementary
| Input Voltage | 200 V 208 V 230 V |
| Height | 620 mm |
| Width | 44 mm |
| Output Voltage | 200 V 208 V 230 V |
| Depth | 44 mm |
| Net weight | 2 kg |
| Mounting location | Side |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting mode | Rack-mounted |
| Rack units | 0U |
| Mounting position | Vertical |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3680 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 15 IEC 60320 C13 |
Environment
| Product certifications | cUL listed CE Queensland Australia UL listed VDE |
| Standards | UL 60950 |
| Ambient air temperature for operation | 0…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 63.8 cm |
| Package 1 Width | 16.8 cm |
| Package 1 Length | 14.6 cm |
| Package 1 Weight | 2.724 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | AP9572 |
| Barcode # | 731304226369 |
| Brand | APC |
| Shipping Weight | 2.7500kg |
| Shipping Width | 0.015m |
| Shipping Height | 0.064m |
| Shipping Length | 0.016m |
