Eaton SKU 3S600AU

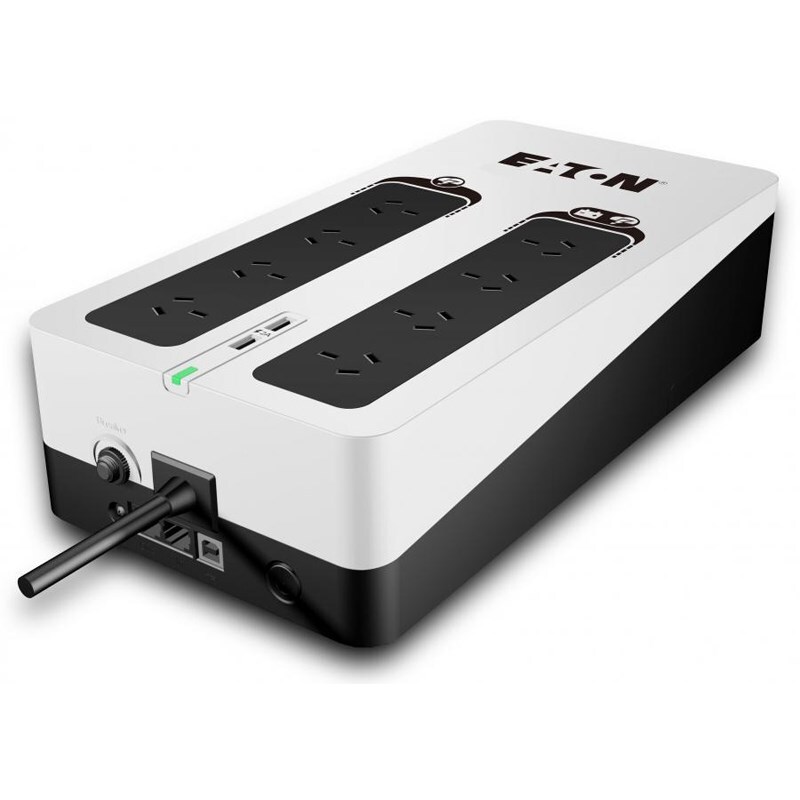

Eaton 3S600AU 600VA 360W Standby Powerboard UPS

The Eaton 3S600AU is a wall-mountable standby powerboard UPS rated at 600VA / 360W, with eight Australian outlets divided into four battery-and-surge outlets and four surge-only outlets.

The supplied specifications list a replaceable sealed 12V 5000mAh lead-acid battery, USB HID communication, RJ-11 dataline protection and overload protection.

600VA / 360W8 AU outlets4 battery and surge outletsReplaceable sealed batteryDeviceDeal authorised Eaton reseller

Eaton 3S600AU 600VA 360W standby powerboard UPS

Product overview

Powerboard UPS format

Eight AU outlets combine four battery-and-surge positions with four surge-only positions.

600VA / 360W capacity

The supplied load capacity is 600VA / 360W with a 10A thermal-breaker input protection claim in the description.

Communication and mounting

The source lists USB HID communication, an LED interface and a wall-mountable form factor.

Source review: Supplier confirmation required: the description lists 50/60Hz input frequency while the structured specification lists 65Hz. The warranty field and description list 12 months, while a structured warranty row lists 2 years. All values are preserved below.

Frequently asked questions

What power capacity is listed for the Eaton 3S600AU?

The supplied load capacity is 600VA / 360W.

How many outlets are listed?

The source lists eight AU outlets: four battery-and-surge outlets and four surge-only outlets.

Is the battery replaceable?

Yes. The structured specification lists a replaceable sealed 12V 5000mAh lead-acid battery.

What warranty duration applies?

The supplied fields conflict between 12 months and two years, so the applicable duration requires confirmation.

(3S600AU)

Features

Eaton 3S600AU 600VA 360W Standby Powerboard UPS

Power protection

Standby UPS
Load capacity: 600VA / 360W
Overload protection stated
10A thermal-breaker input protection stated

Outlets and connectivity

8 x AU outlets
4 x battery and surge outlets
4 x surge-only outlets
RJ-11 dataline protection
USB HID-compliant port
LED interface

Battery and installation

12V 5000mAh sealed lead-acid battery
User-replaceable battery
Wall mountable
325 x 140 x 86mm
Approximate weight: 3.20kg

The source contains input-frequency and warranty-duration conflicts that should be confirmed before final publication.

Technical specifications

Eaton 3S600AU 600VA 360W Standby Powerboard UPS

General and power
Brand	Eaton
Model / SKU	3S600AU
Product type	Standby UPS
Series	3S
Load capacity	600VA / 360W
Input mains voltage stated in description	220240V
Input voltage stated in structured specification	230V AC
Output voltage values listed	220V AC; 230V AC; 240V AC
Input voltage ranges listed	192276V AC; 220240V AC; 168295V AC
Description input frequency	50/60Hz
Structured input frequency	65Hz
Input protection stated	10A thermal breaker
Outlets, protection and interfaces
Plug / connector type	AU
Phase	Single phase
Receptacle type	AU
Battery and surge outlets	4
Surge-only outlets	4
Receptacle detail	8 x AU
Dataline protection	RJ-11
Overload protection	Yes
USB HID-compliant port	Yes
Status indicator	LED interface
Battery and environment
Battery chemistry	Lead acid
Battery voltage	12V
Battery capacity	5000mAh
Battery characteristics	Sealed
Replaceable battery	Yes
Maximum operating temperature	40°C
Storage temperature	-25°C to 55°C
Maximum operating elevation	3km
Physical properties
Form factor	Wall mountable
Dimensions (W x D x H)	325 x 140 x 86mm
Approximate weight	3.20kg
Application types listed
Applications	Workstation; computer; multimedia device; network; TV; gaming console; modem; decoder; telephone; video equipment; audio/video equipment; POS; desktop computer; home theatre; phone; internet gateway; home appliance; business-critical system
Warranty fields supplied
Description and warranty field	12 months limited warranty
Structured warranty row	2 years
Status	Supplier confirmation required

SKU	3S600AU
Barcode #	743172101846
Brand	EATON
Shipping Weight	4.0600kg
Shipping Width	0.240m
Shipping Height	0.160m
Shipping Length	0.390m
Shipping Cubic	0.014976000m3

Warranty information

Eaton 3S600AU 600VA 360W Standby Powerboard UPS

Eaton Manufacturer Warranty Duration Requires Confirmation

DeviceDeal is an authorised Eaton reseller. The supplied description and warranty field list a 12-month limited manufacturer warranty, while the structured specification lists two years. Please contact DeviceDeal to confirm the applicable Eaton manufacturer warranty period and conditions in Australia for SKU 3S600AU.
