Eaton SKU 3SM36AU

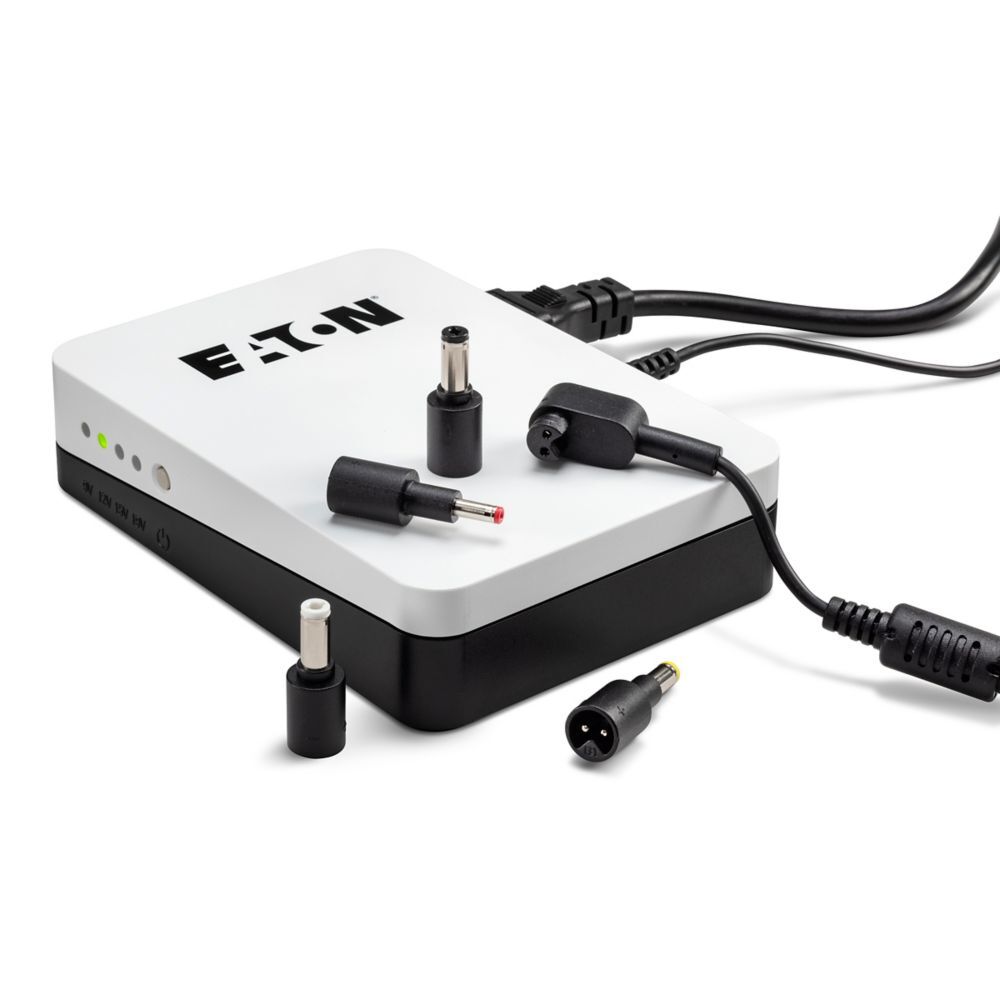

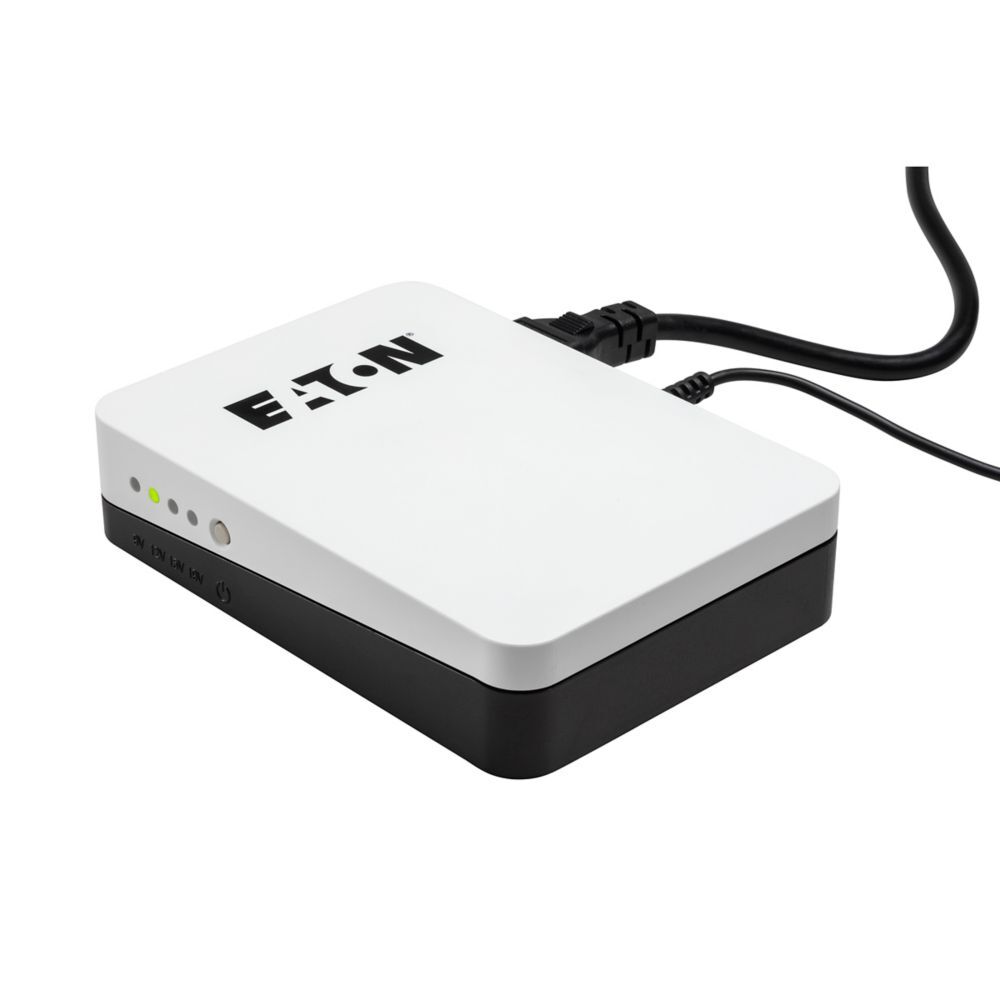

Eaton 3SM36AU 3S Mini 36W DC UPS

The Eaton 3SM36AU 3S Mini is a compact 36W offline DC UPS with four barrel adapters and selectable DC output voltages for compatible equipment.

The supplied description lists 9V at 3A, 12V at 3A, 15V at 2.4A and 19V at 1.89A outputs, while the structured specification lists a user-replaceable lithium-ion battery and 100240V input range.

36W DC UPS9V / 12V / 15V / 19V4 barrel adaptersLithium-ion batteryDeviceDeal authorised Eaton reseller

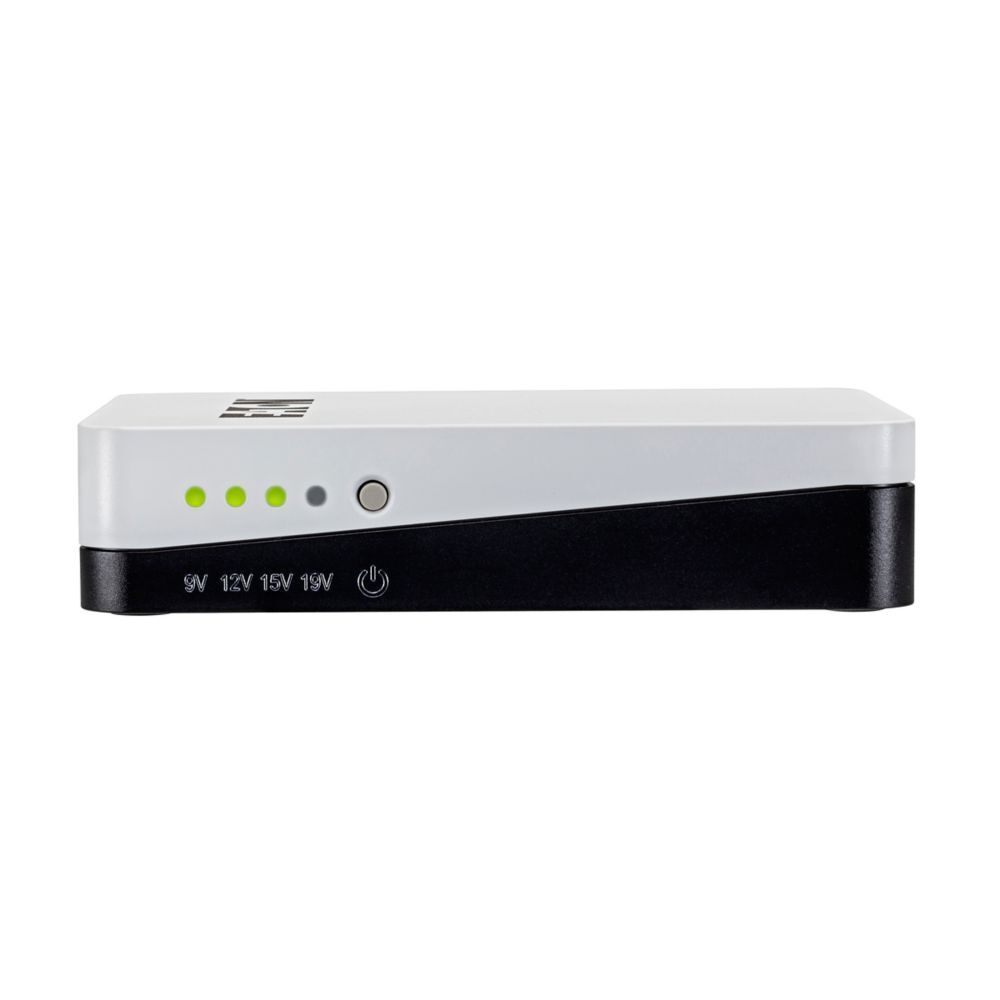

Eaton 3SM36AU 3S Mini 36W DC UPS shown in the supplied second product image

Product overview

Multiple DC outputs

The description lists 9V, 12V, 15V and 19V DC output options with four barrel adapters.

Compact 36W design

The structured specification lists a 136 x 95 x 30mm enclosure weighing 0.37kg.

Lithium-ion battery

The source lists a user-replaceable lithium-ion battery and an LED user interface.

Source review: Supplier confirmation required: the description labels the input as French while the structured specification says Other, and the SKU ends in AU. The warranty field lists 12 months, while the structured specification lists two years.

Frequently asked questions

Which DC output voltages are listed for the Eaton 3SM36AU?

The supplied description lists 9V, 12V, 15V and 19V DC outputs.

What is included?

The structured specification lists the UPS, input cable, four barrel adapters and a quick-start guide.

Is the battery replaceable?

Yes. The source lists a user-replaceable lithium-ion battery.

What warranty duration applies?

The supplied fields conflict between 12 months and two years, so the applicable duration requires confirmation.

(3SM36AU)

Features

Eaton 3SM36AU 3S Mini 36W DC UPS

DC power output

36W offline DC UPS
9V at 3A
12V at 3A
15V at 2.4A
19V at 1.89A
4 barrel adapters

Battery and operation

Lithium-ion battery
User replaceable
100240V input range
4670Hz input frequency range
LED user interface
Noise level below 25dB at 1m

Compact format

136 x 95 x 30mm
Weight: 0.37kg
Black and white
1m input cord
CE marked

Confirm the supplied input connection and applicable Australian warranty before purchase.

Technical specifications

Eaton 3SM36AU 3S Mini 36W DC UPS

General
Brand	Eaton
Store SKU	3SM36AU
Catalog number	3SM36
Model code	Eaton 3S Mini 36W
EAN	3553340705014
Topology	Offline
Wattage	36W
Colour	Black / white
Electrical output
Output nominal voltage	9V, with 12V / 15V / 19V options
Output ratings listed in description	9V-3A; 12V-3A; 15V-2.4A; 19V-1.89A
Receptacles	4 barrel adapters
Electrical input
Description input label	French
Structured input connection	Other
Input cord length	1m
Input voltage range	100240V
Input frequency range	4670Hz
Battery, communication and environment
Battery type	Lithium-ion
Battery replacement	User replaceable
User interface	LEDs
Altitude	2000m
Noise level	Less than 25dB at 1m
Relative humidity	085% non-condensing
Physical and compliance
Dimensions (L / D x W x H)	136 x 95 x 30mm
Weight	0.37kg
Compliance	CE marked
Certifications stated	CE; IEC/EN 62040-2; IEC 62477-1; IEC 62040-5-3
Package contents
Included items	UPS; input cable; 4 barrel adapters; quick-start guide
Warranty fields supplied
Warranty field	12 months limited warranty
Structured specification	2 years
Status	Supplier confirmation required

SKU	3SM36AU
Barcode #	3553340705014
Brand	EATON
Shipping Weight	1.0000kg
Shipping Width	0.240m
Shipping Height	0.160m
Shipping Length	0.390m
Shipping Cubic	0.014976000m3

Warranty information

Eaton 3SM36AU 3S Mini 36W DC UPS

Eaton Manufacturer Warranty Duration Requires Confirmation

DeviceDeal is an authorised Eaton reseller. The supplied warranty field lists a 12-month limited manufacturer warranty, while the structured specification lists two years. Please contact DeviceDeal to confirm the applicable Eaton manufacturer warranty period and conditions in Australia for SKU 3SM36AU.
