PILOT DC MINI 12

Name: PowerShield DC Mini 12V DC 18W (1.5A) Plug Pack UPS - PSDCMin-12-18
Brand: PowerShield
SKU: PSDCMINI12-18
Price: 100 AUD
Availability: InStock

12V

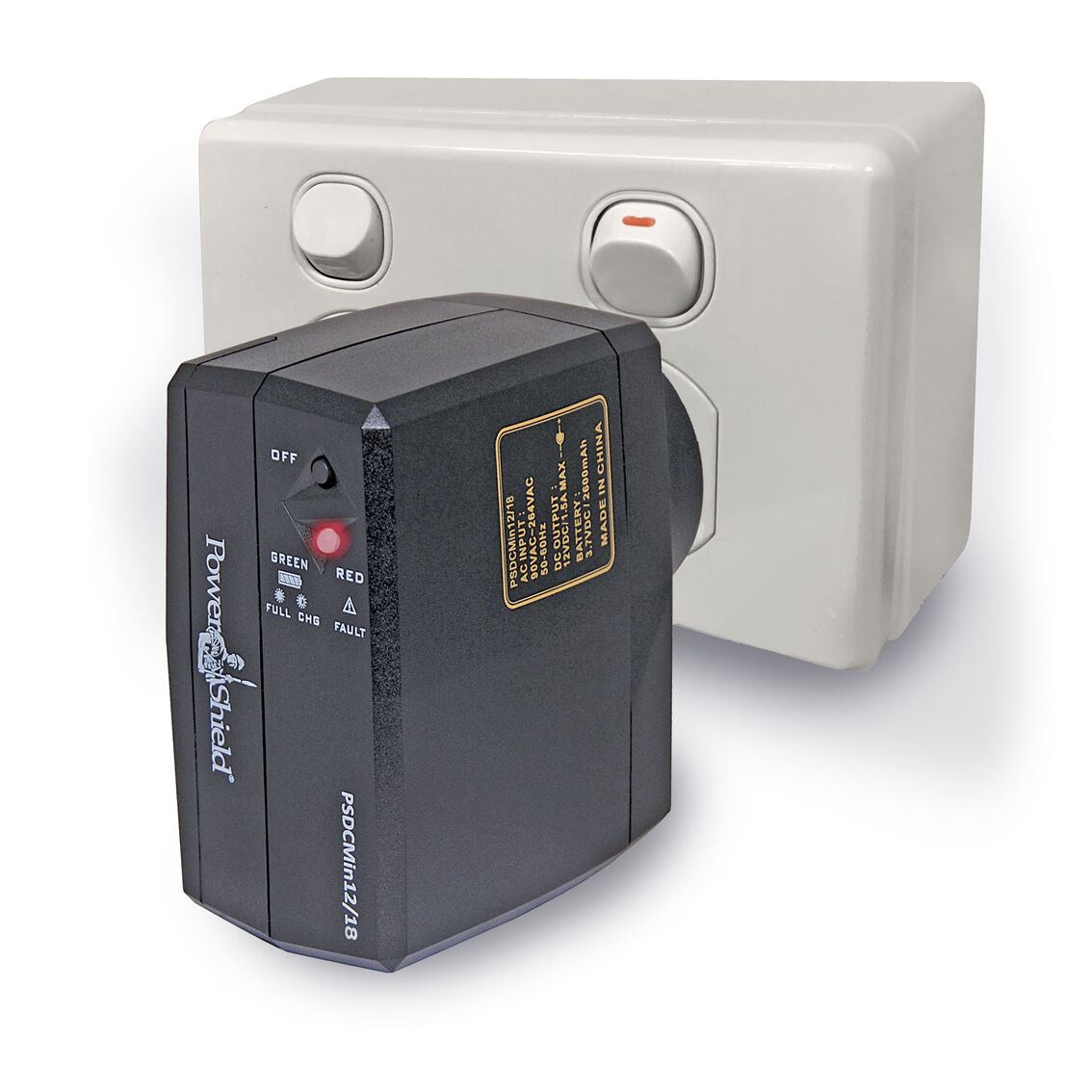

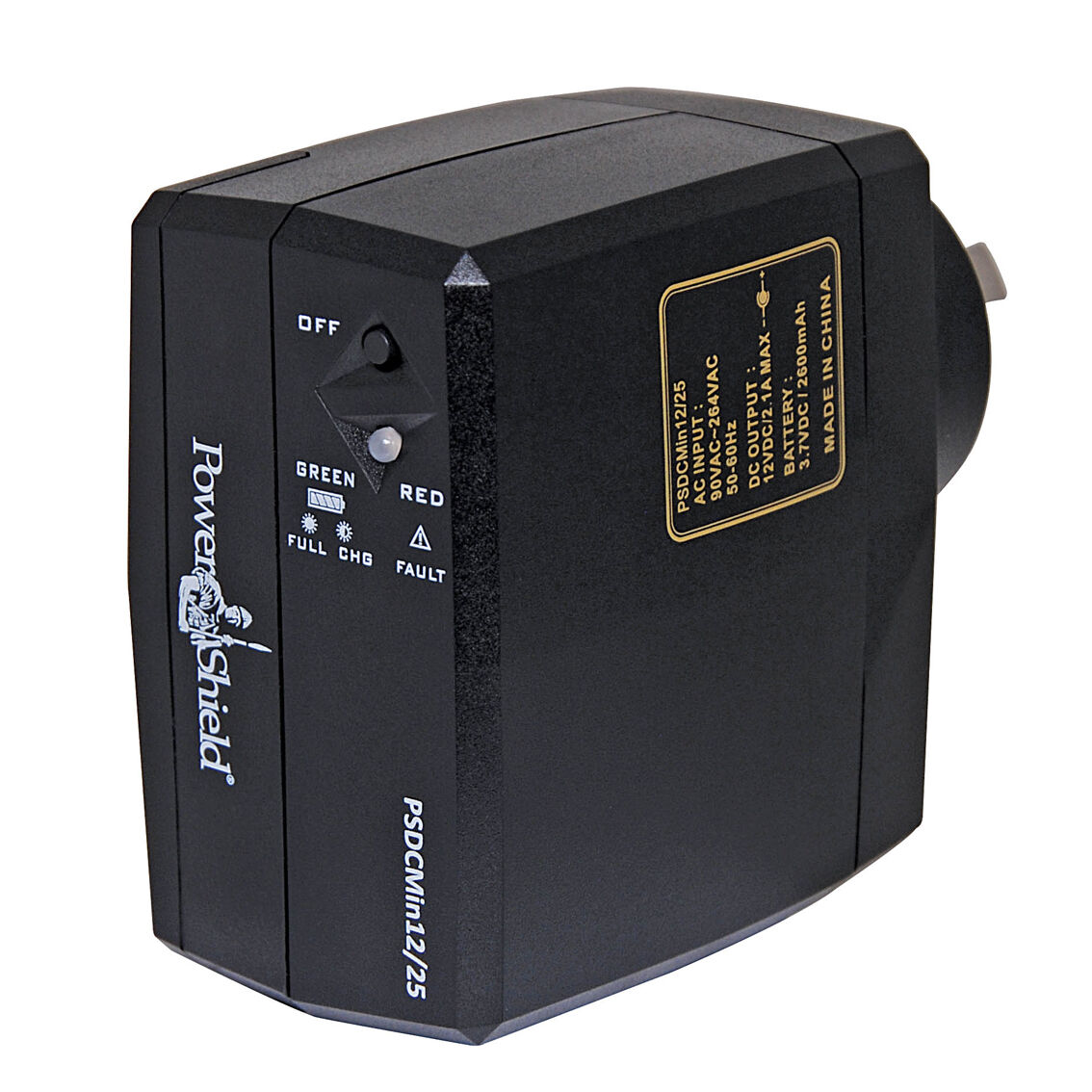

The PowerShield DC Mini is designed to provide emergency power backup to all kinds of DC powered equipment including routers, modems (including fibre optic - NBN), VOIP phone systems, surveillance equipment, alarm systems and many critical telecommunications devices. The DC Mini can economically provide hours of operation during power failure.

FEATURES

Built in replaceable Li-Ion battery

Auto start when plugged in

Freestanding Mini controller

Multi-colour indicator

Manual power off switch port

Overload, short-circuit, over-charge and over-discharge protection

Power Connectors Included: Complete set of DC Power Jacks for adapters allowing routers and other equipment to run using DC powered port outputs, such as modems, phones etc.

(PSDCMINI12-18)

PILOT DC SPECIFICATIONS

MODEL	Pilot DC Mini 12
Model Number	PSDCMINI12-18
INPUT
Voltage Range	90-265VAC
Frequency Range	50Hz to 60Hz
Surge Protection	1 Joule / 6500A
OUTPUT
Output Voltage	12V DC ± 5%
Regulation	≤5%
BATTERY
Battery	Lithium-ion Battery 1 x 7V DC / 2600mAh
Typical Charging Time	5 hours recover to 80% capacity
PROTECTION
Protection	Deep discharge, over charge and short circuit protection
Main Circuit	Main circuit and overload protection
LED INDICATORS
Full Battery	Green – Solid
Battery Charging	Green – Slow Flashing
Battery Discharging	Green – Quick Flashing
PHYSICAL
Dimensions D x W x H (mm)	76.2 x 46 x 79.8
Net Weight (g)	280
RUNTIME
Typical Small Booster (0.25 Amp / 3 Watt)	170 minutes
Typical Router (1 Amp / 12 Watt)	35 minutes

Product specifications are subject to change without prior notice.

SKU	PSDCMINI12-18
Barcode #	9346909000453
Brand	PowerShield
Shipping Weight	0.4000kg
Shipping Width	0.130m
Shipping Height	0.170m
Shipping Length	0.050m
Shipping Cubic	0.001105000m3
