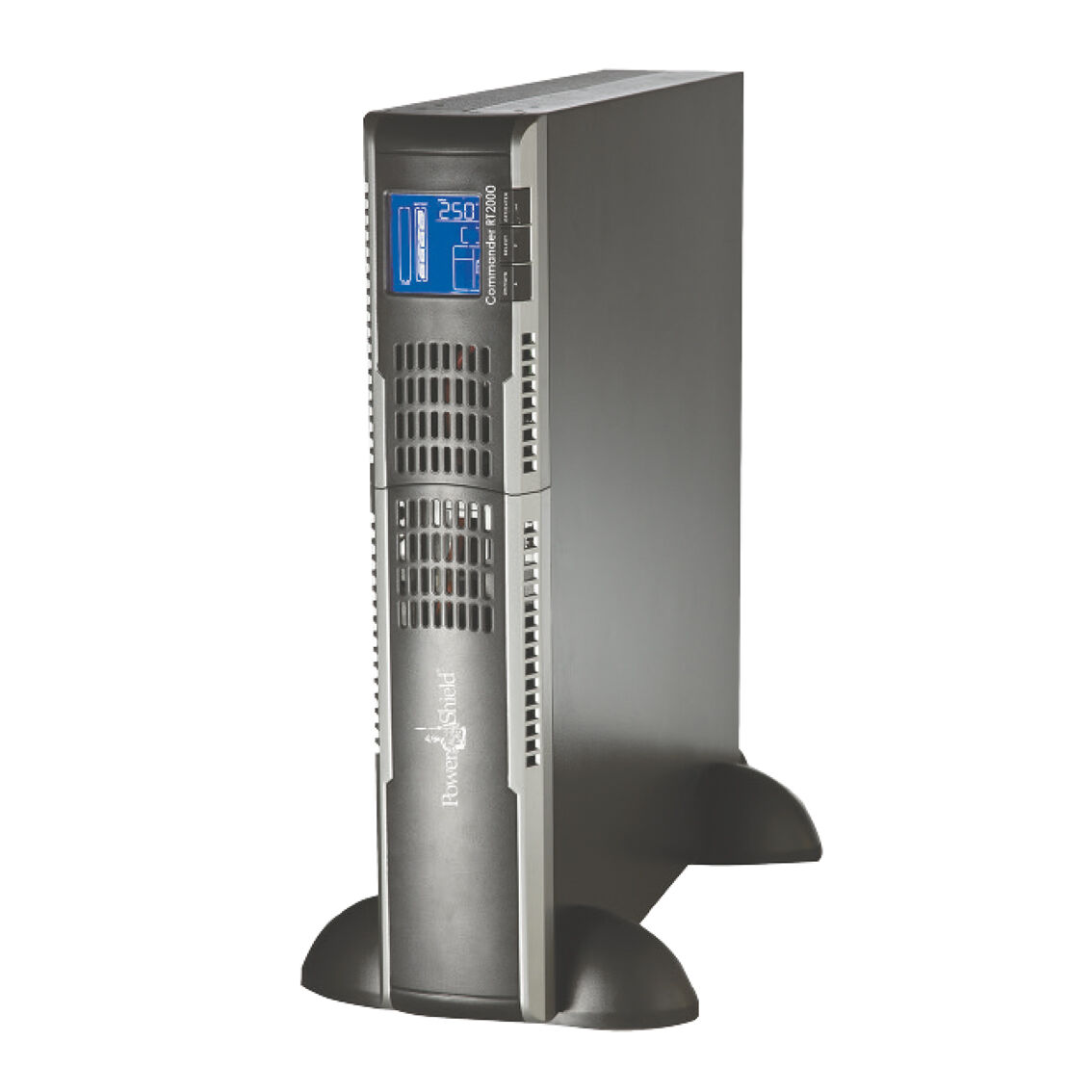

The PowerShield Commander Rack or Tower style UPS generates a Pure Sine Wave output, providing compatibility for many types of electrical loads. The Commander RT offers power protection for applications such as networking, phone system, security and motor control to name a few. The Advanced ECO mode function delivers cost effective operation with an efficiency as high as 98%. With features such as hot swappable batteries, highest surge rating in its class, and combination of Australian and IEC outlets, this sophisticated line interactive pure sine wave UPS is in a class of its own.
- 2000VA / 1600 Watts
- Pure Sine Wave output
- Built-in buck and boost AVR- Auto Voltage Regulation
- Output power factor 0.8
- Programmable Power Management outlets
- Advanced ECO mode operation for energy efficiency
- Rack or Tower operation (Rack Mounting Rails optional)
- EPO - Emergency Power Off Function
- Hot swappable batteries
- Surge protection that is best in its class
- Included Software: PowerShield NetGuard UPS monitoring and control
- Communications: Visual LCD, Audible Alarms, USB & RS232
- Optional Communication: SNMP, AS400 Dry Relays

(PSCRT2000)
Technical Details
| Model Number | PSCRT2000 |
|---|---|
| Capacity | 2000VA/1800W |
| Topology | Line Interactive, Pure Sine Wave |
| Voltage | 240Vac (Nominal) |
| Voltage Range | 162-290Vac |
| Frequency Range | 50/60 Hz (Auto Sensing) ?±5Hz |
| Output Voltage | 240Vac (Selectable200/208/220/230Vac) ?±10% AVR |
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ?± 1Hz |
| Transfer Time | 6ms (Typical) |
| Waveform (Batt. Mode) | Pure Sine Wave |
| Australian Outlets - UPS & Surge Protection | 3 |
| Battery Type & Number | 12V*9Ah (x 4) |
| Typical Recharge Time | 4 Hours Recover to 90% Capacity |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 1560Joules / 32500Amps |
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| Software | PowerShield?® NetGuard?® software supports Windows?®, Linux, Unix, and MAC |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | AC mode, Batt. mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Low Batt., Batt. T |
| Audible Alarm | Battery mode, low battery (batt. mode), fault, oveload |
| Dimension L x W x H (mm) | (480 x 438 x 88)mm |
| Net Weight (kgs) | (23kg / 25kg) |
| Temperature | 0 - 40?°C |
| Humidity | 0 - 90% (RH Non-condensing) |
| Noise Level | < 45dB |
| Safety/EMC | EN62040 - 1 - 1 2003, IEC60950 - 1 - 1/ EN62040 - 2 2006 |
| RoHS | Directive 2011 / 65 / EU |
| Warranty | 2 Year ARW |
| SKU | PSCRT2000 |
| Barcode # | 9346909000170 |
| Brand | PowerShield |
| Shipping Weight | 28.0000kg |
| Shipping Width | 0.710m |
| Shipping Height | 0.250m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.101175000m3 |
2 Year Warranty
