APC Smart-UPS C, Line Interactive, 2000VA, Tower, 230V, 6x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD

SKU: SMC2000I | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
2000VA/1300W line interactive pure sine wave tower UPS
Ideal for entry-level servers, networks, retail POS, business VOIP and desktops
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Graceful shutdown using serial or USB cables via PowerChute Business Edition
Peace of mind with 2-year UPS warranty

Description

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime.
This 2000VA/1300W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions.
The tower mount SMC operates in green mode for high operating efficiency.

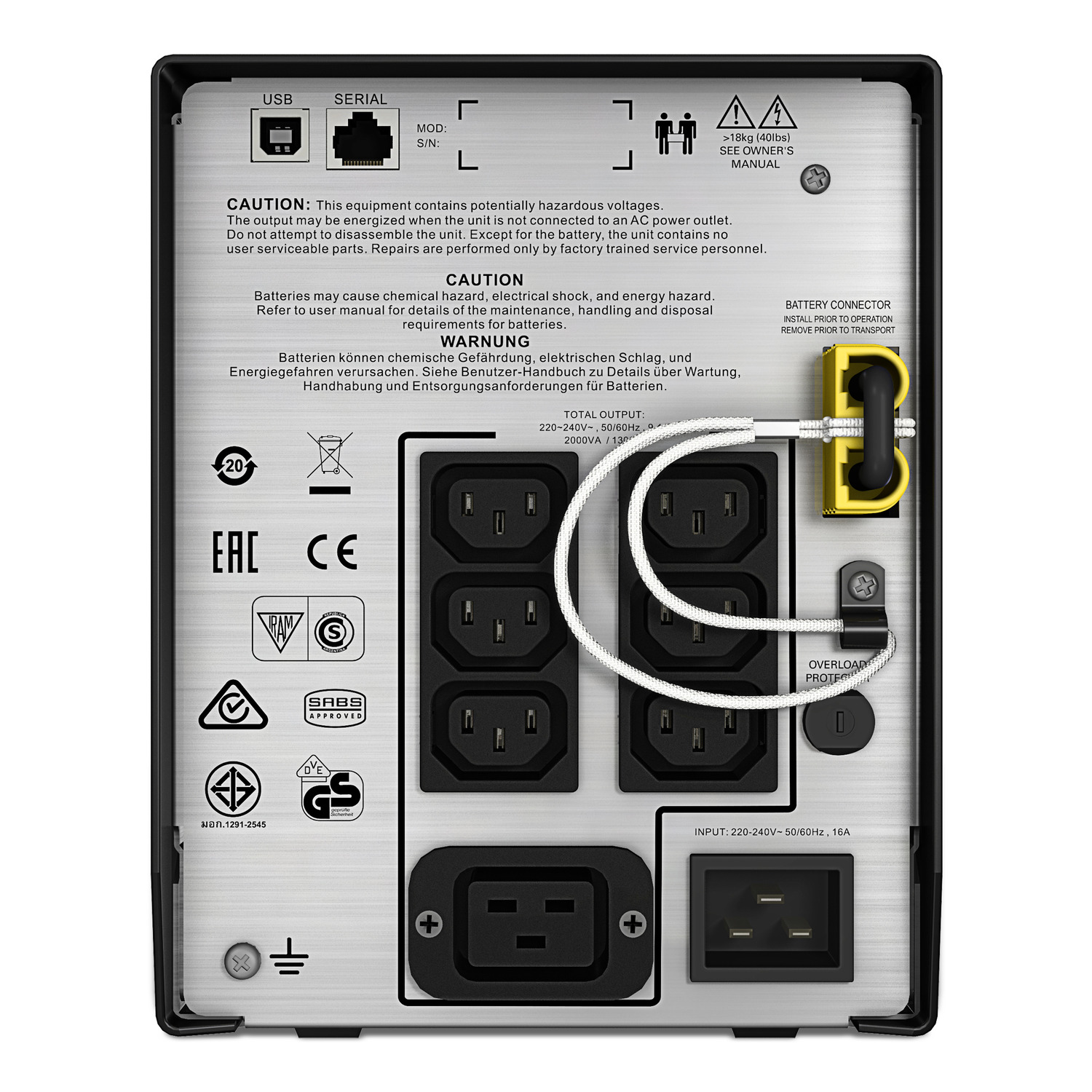

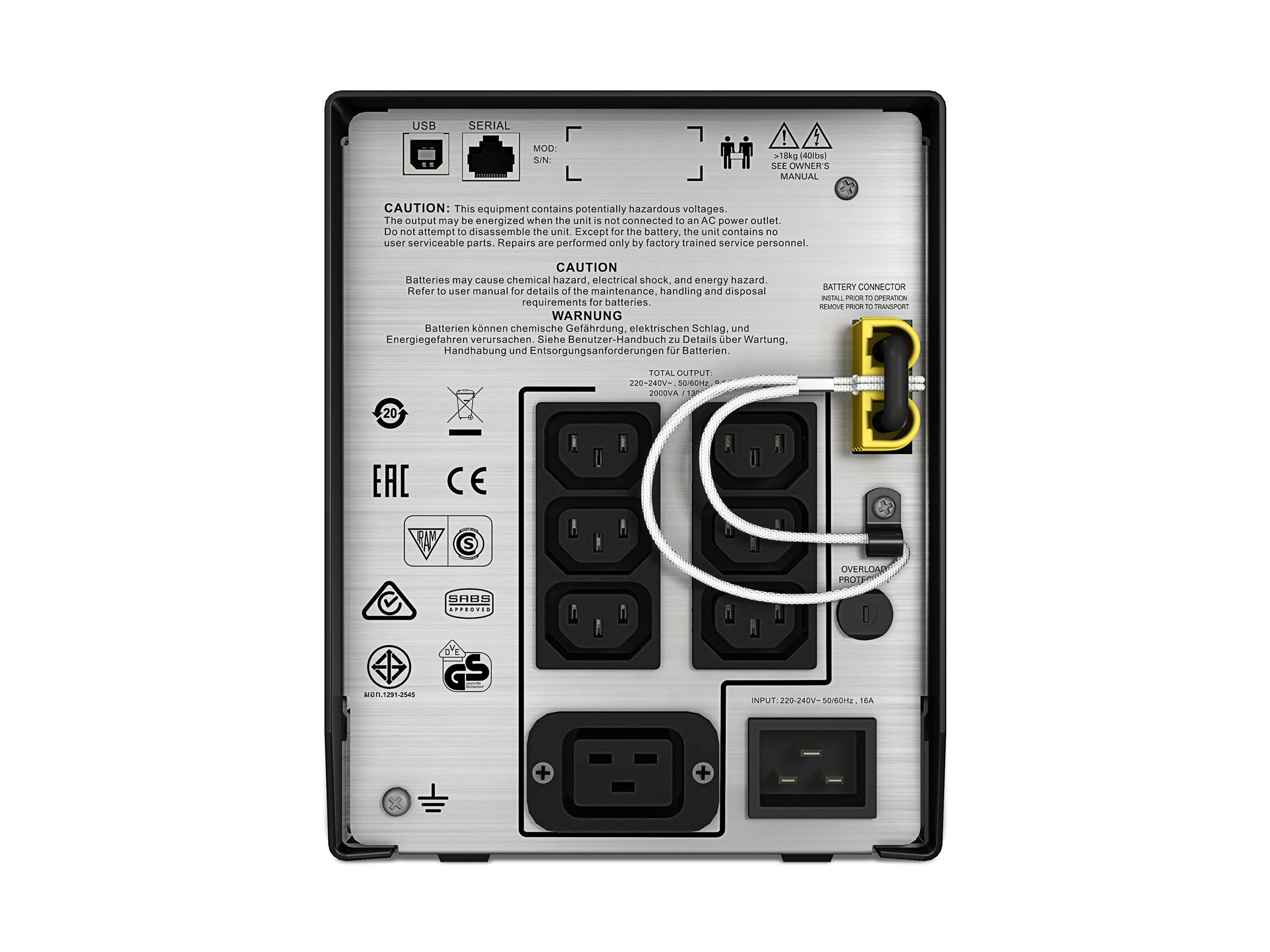

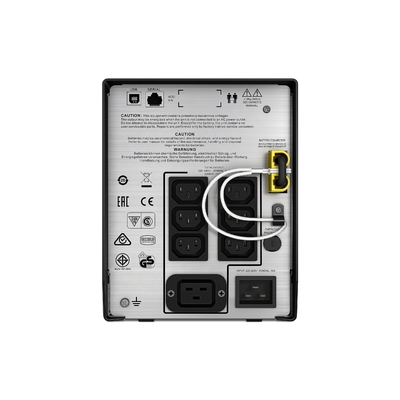

It comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets.
This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty.
Its dimensions are 440mm (depth) x 216mm (height) x 170mm (width) and weighs 27.5kg.
Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, edge networks and business desktops.
It conforms to CE, C-Tick, GOST, EAC, SABS and VDE.

Product Images

Downloads & Documents

Compatible Products & Accessories

(SMC2000I)

Specifications - SMC2000I

Overview

Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually Ships within 2 Weeks

Main

Main Input Voltage	230 V AC 1 phase
Input voltage	220 V 240 V
Input Connection Type	IEC 320 C20
Input voltage limits	170...300 V adjustable 180...287 V
Network frequency	47...63 Hz
Output voltage	230 V AC 1 phase
Rated power in W	1300 W
rated power in VA	2000 VA
Output connection type	6 IEC 320 C13 1 IEC 320 C19
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	2000 VA
Maximum configurable power in W	1300 W
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50 Hz sync to mains

Complementary

Battery type	Lead-acid internal included
Control panel	Multifunction LCD status and control console
Free slots	0
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
UPS connectivity	Serial port USB port
Surge energy rate	300 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	0U
Colour	Black
Height	216 mm
Width	170 mm
Depth	440 mm
Net weight	27.5 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Provided equipment	CD with software Documentation CD USB cable
Number of power module	0
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	Entry level
Redundant	No
Range of product	Smart-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	C-Tick CE EAC GOST SABS VDE UK PSTI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	135 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Battery type	Lead-acid battery
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC148
Battery charger power	166 W rated
