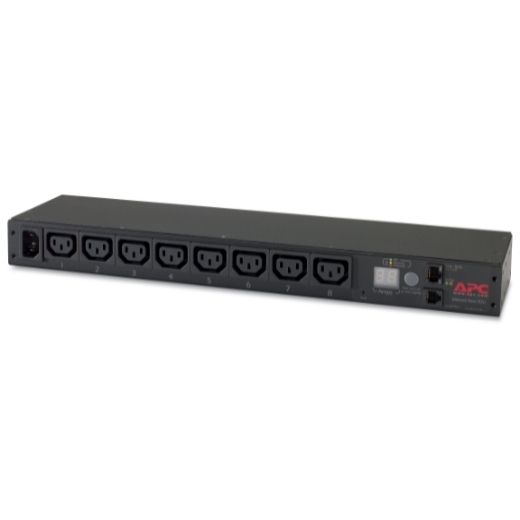

Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13

SKU: AP7820B | Brand: APC Brand

Key Features

1-Year Secure Network Management Card subscription included
Features 8 IEC 60320 C13 outlets for extensive power distribution
Horizontal mounting to fit various rack configurations, saving space
Supports up to 12A at 208V and 10A at 230V, ensuring reliable power delivery
Includes a cord retention bracket and toolless mounting kit for quick setup

Description

It is a metered rack PDU designed for 1U horizontal mounting.
It supports a maximum current of 12A at 208V and 10A at 230V.
The PDU features 8 IEC 60320 C13 outlets and a 6.5-foot power cord with an IEC 60320 C14 plug.
It has a load capacity of 2300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Product Images

Downloads & Documents

(AP7820B)

Specifications - AP7820B

Overview

Lead time

Usually in Stock

Main

Product or component type	PDU
PDU type	Metered
Cord length	1.98 m
Provided equipment	Cord retention bracket(s) Installation guide Rack mounting brackets User manual

Complementary

Input Voltage	200 V 208 V 230 V
Height	44 mm
Width	444 mm
Output Voltage	208 V 230 V
Depth	102 mm
Net weight	1.73 kg
Mounting location	Front Rear
Mounting preference	No preference
Input Plug Type	IEC 60320 C14
Mounting mode	Rack-mounted
Rack units	1U
Mounting position	Horizontal
[In] rated current	10 A
Input current limits	15 A
Load capacity	2300 VA
Rated current	10 A - 230 V 12 A - 208 V
Network frequency	50/60 Hz
Outlet type and quantity	8 IEC 60320 C13

Environment

Product certifications	cUL listed C-Tick CE CSA GOST UL listed VDE VCCI
Standards	FCC part 15 class A UL 60950
Ambient air temperature for operation	-5…45 °C
Relative humidity	5…95 %
Operating altitude	0...10000 ft
Ambient air temperature for storage	-25…65 °C
Storage Relative Humidity	5…95 %
Storage altitude	0…15240 m
