APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Model # SBP3000RMI
-
SKU: SBP3000RMI
- Pick Up Available
- Australian Warranty
- Checkout Securely
APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
SKU: SBP3000RMI | Brand: APC Brand
Key Features
- APC SERVICE BYPASS PDU
- Extremely reliable service bypass panels designed for APC InfraStruXure Type A - Smart-UPS - and Symmetra UPS products.
- Load capacity 3000VA
- Allows easy maintenance of a UPS by isolating it from the critical load
- 2 years repair or replace warranty
Description

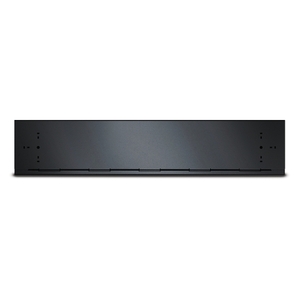

The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades.

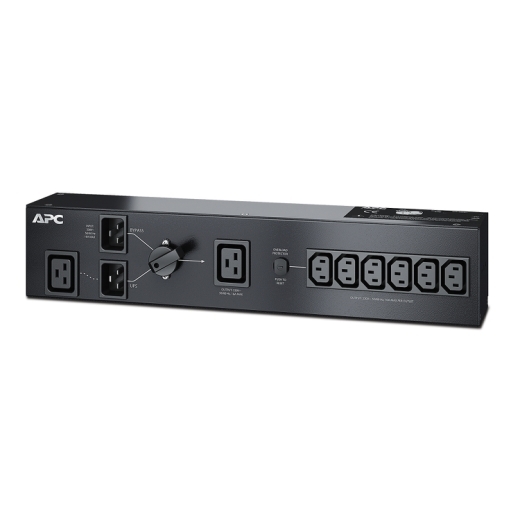

Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets.
The panel is 2U in height with 230V input and output voltage.
This panel comes with a 2-year warranty.
Product Images
Downloads & Documents
× ![]()
(SBP3000RMI)
Specifications - SBP3000RMI
Overview
| Lead time | Usually in Stock |
Main
| Main Input Voltage | 230 V |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 2U |
| Cable length | 2.5 m |
| Number of cables | 1 |
| Provided equipment | User manual Rack mounting brackets |
| Range of product | Maintenance Bypass Panels |
Physical
| Colour | Black |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 76 mm |
| Net weight | 2.09 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
Input
| Network frequency | 50/60 Hz |
| permissible voltage | 220…240 V |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3000 VA |
| Power factor | 0…1 |
Output
| Max current draw | 16 A |
| Number of power socket outlets | 7 |
| Protection type | Circuit breaker |
| Power cable length | 1.00 m |
| Efficiency | 99 % |
Conformance
| Product certifications | VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Environmental
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.1 cm |
| Package 1 Width | 29.5 cm |
| Package 1 Length | 46.3 cm |
| Package 1 Weight | 3.91 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | SBP3000RMI |
| Barcode # | 731304266747 |
| Brand | APC |
| Shipping Weight | 3.9100kg |
| Shipping Width | 0.015m |
| Shipping Height | 0.047m |
| Shipping Length | 0.030m |
