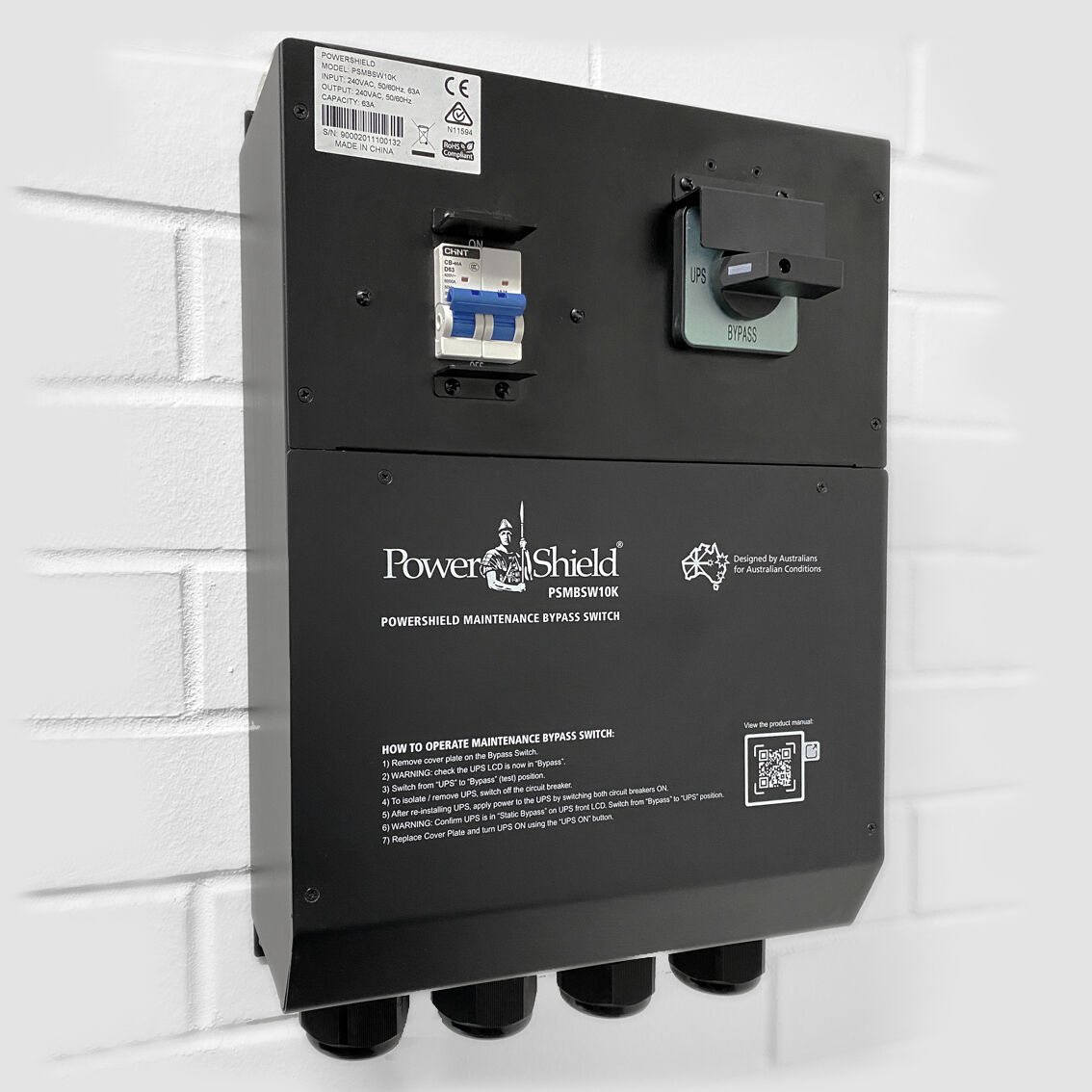

PowerShield PSMBSW10K maintenance bypass panel (MBP) Black 60 A
Model # PSMBSW10K
-
SKU: PSMBSW10K
- Pick Up Available
- Australian Warranty
- Checkout Securely
WALL MOUNT MBS
Maintenance Bypass Switch for 6-10kVA UPS
PowerShield Wall Mount MBS provides three modes of operation: UPS, Bypass and Isolate. Designed for wall mounting with mechanical interlock to prevent incorrect switching sequences. Provides safe maintenance access without interrupting power to connected equipment.
FEATURES
THREE MODES
UPS, Bypass and Isolate modes for complete flexibility.
MECHANICAL INTERLOCK
Prevents incorrect switching sequences for safety.
WALL MOUNTABLE
Compact design for wall mounting installation.
HARDWIRED
Terminal block connections for permanent installation.
For PowerShield UPS 6-10kVA
(PSMBSW10K)
WALL MOUNT MBS SPECIFICATIONS
| MODEL | WALL MOUNT MBS 6-10K |
|---|---|
| Model Number | PSMBSW10K |
| UPS Compatibility | 6-10kVA |
| Operation Modes | UPS, Bypass, Isolate |
| Input (Terminal) | Hardwired |
| Nominal Voltage | 220-240VAC |
| Max Current | 32A / 40A |
| Mounting | Wall Mount |
Product specifications are subject to change without prior notice.
| SKU | PSMBSW10K |
| Brand | PowerShield |
| Shipping Weight | 4.0000kg |
