UPS Systems BR1000ELCD

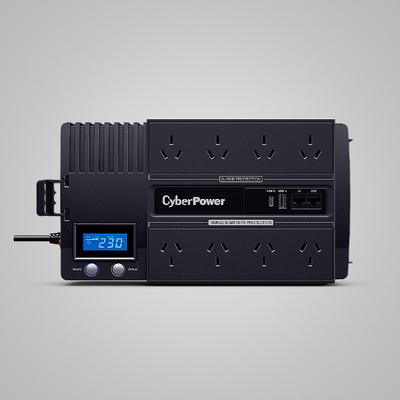

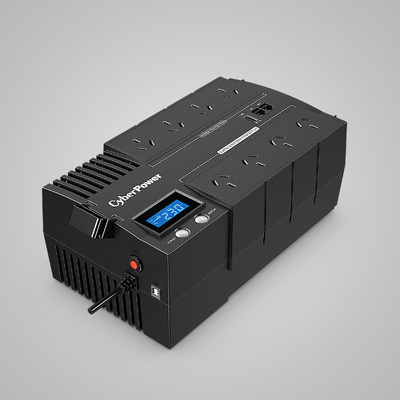

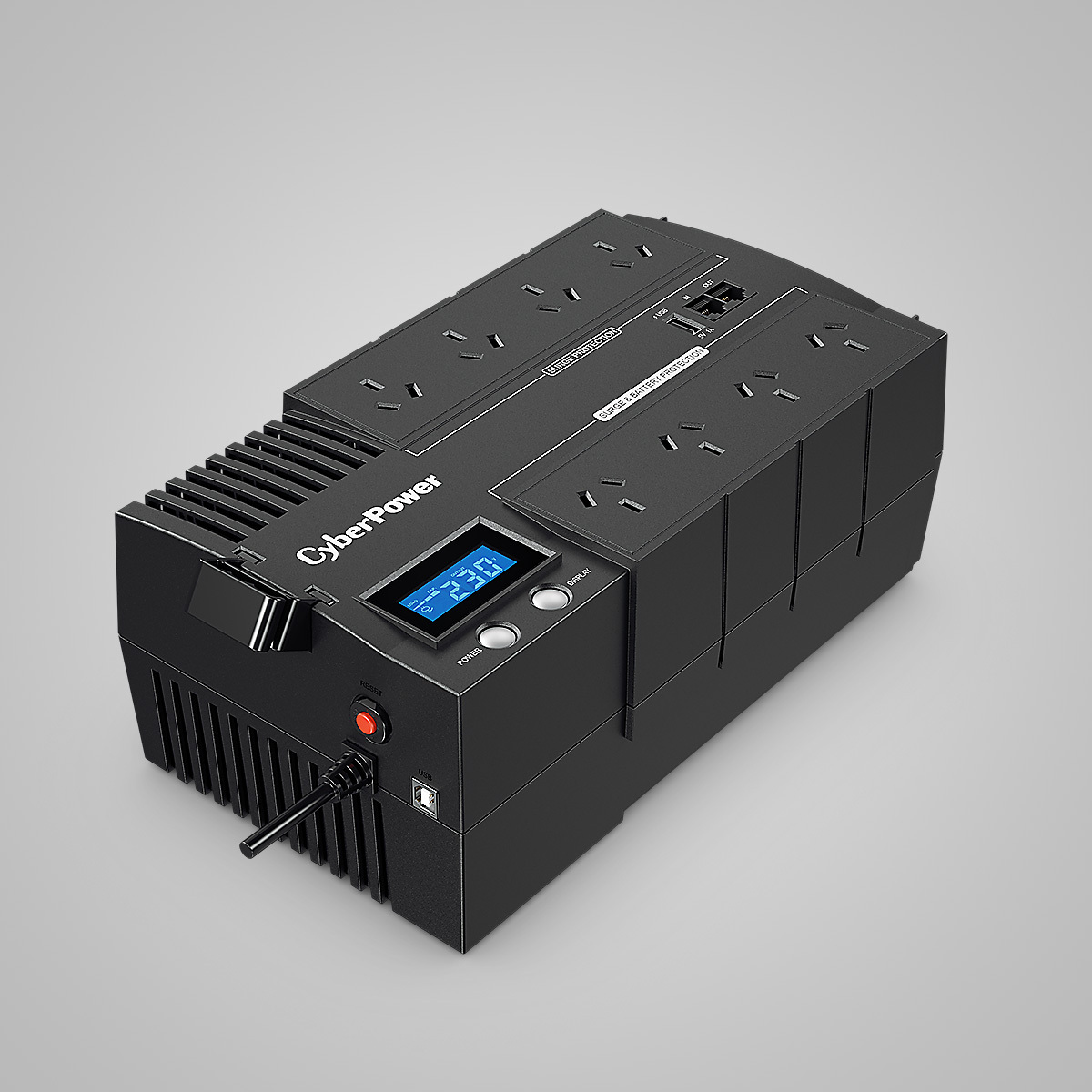

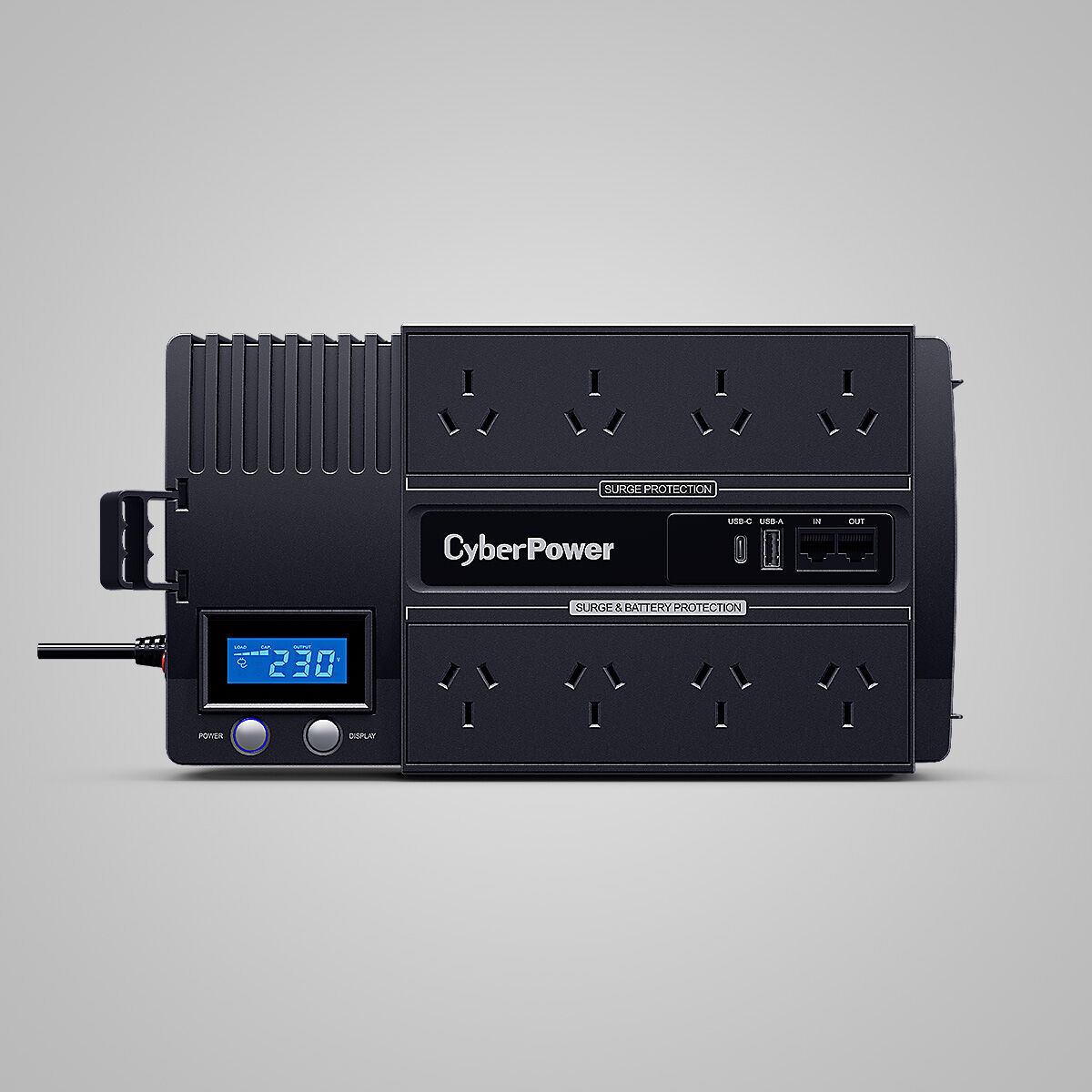

Name: CyberPower BR1000ELCD BRIC LCD 1000VA / 600W Simulated Sine Wave UPS
Brand: CYBERPOWER
SKU: BR1000ELCD
Price: 229 AUD
Availability: InStock

1000

Watts

600

Output Voltage ( Vac )

230 ± 10%

Half Load Runtime ( min )

Outlets

AU x 8

Energy Saving Technology

Automatic Voltage Regulation (AVR)

LCD Status Display

Wall Mount Installation

Overview

CyberPower BR1000ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surges/spikes and other power irregularities. Users can access precise information of critical power/battery conditions with the LCD status monitor.

Features

Line-interactive UPS Topology
Simulated Sine Wave Output
USB Charging Port(s)
Phone/Fax/Modem/DSL/Network Protection
PowerPanel Management Software
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Surge and Spike Protection
LCD Status Display
Wall Mount Installation

What's in the Box

BR1000ELCD UPS
USB Cable
Phone Line
User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(BR1000ELCD)

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

USB Charging Port

The UPS comes with USB charging port to power electronic devices. The USB charging port is plug-and-play design for quick and immediate use, allowing users to conveniently employ USB port to power devices.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Data Line Protection

The UPS provides data line protection to protect connected devices from surges and spikes caused by lightning, avoiding potential system damage.

Configurable Alarm

Configurable alarm immediately notifies users of unexpected issues, allowing users to resolve problems at their earliest convenience. Users can also switch the audible alarm on or off during battery mode to avoid unnecessary disturbances.

Wall Mount Installation

The product comes with mounting slots, allowing users to install it easily onto walls to achieve wall mount orientation, thereby saving space for users.

PowerPanel Personal Software

The PowerPanel Management Software allows UPS management and PC graceful shutdowns by connecting the UPS to a computer through a USB or serial port. This software supports easy UPS status monitoring, event logging, and power settings to protect connected devices. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase

Form FactorDesktop

UPS TopologyLine-interactive

Energy Saving TechnologyGreenPower UPS™ Bypass Technology

Input

Nominal Input Voltage ( Vac )230 ± 10%

Input Voltage Range ( Vac )167 ~ 295

Input Frequency ( Hz )50
60

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )4.46

Input Connector TypeAU

Power Cord Length (ft.)5

Power Cord Length (m.)1.5

Output

Capacity (VA)1000

Capacity (Watts)600

On Battery WaveformSimulated Sine Wave

On Battery Voltage(s) ( Vac )230 ± 10 %

On Battery Frequency ( Hz )50 ± 1%
60 ± 1%

Automatic Voltage Regulation (AVR)Single Boost, Single Buck

Overload ProtectionInternal Current Limiting, Circuit Breaker

Outlet(s) - Total8

Outlet TypeAU x 8

Outlet(s) - Battery & Surge Protected4

Outlet(s) - Surge-Only Protected4

Typical Transfer Time ( ms )4

USB Charging Port(s)USB-A x 1
USB-C x 1

USB Charging Total Output5 V/ 2.1 A

Battery

Runtime at Half Load ( min )5

Runtime at Full Load ( min )1

Runtime at 60W ( min )60

Runtime at 90W ( min )42

Typical Recharge Time ( Hours )8

Start On BatteryYes

User-replaceableYes - Qualified Personnel Only

Battery Cartridge (RBP)RBP0117

Battery Cartridge (RBP) Quantity ( pcs )1

Surge Protection & Filtering

Surge Suppression ( Joules )150

EMI/RFI FiltrationYes

Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning

LCD Setting & ControlAlarm Setting, Input & Output

LED IndicatorsPower On, Line Mode, Battery Mode, Low Battery

HID Compliant USB Port(s)1

Audible AlarmsBattery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )USB Cable x1, Phone Line x1

Power Management SoftwarePowerPanel Personal (Recommended)

Physical

Wall Mount InstallationYes

Enclosure ConstructionPlastic

ColorBlack

Physical Size - UPS Module

Dimensions (WxHxD) (in.)6.54 x 4.65 x 11.34

Dimensions (WxHxD) (mm.)166 x 118 x 288

Weight (lbs.)14.33

Weight (kg.)6.5

Shipping Dimensions

Dimensions (WxHxD) (in.)6.22 x 9.06 x 12.80

Dimensions (WxHxD) (mm.)158 x 230 x 325

Weight (lbs.)18.3

Weight (kg.)8.3

Environmental

Operating Temperature (°F)32 ~ 104

Operating Temperature (°C)0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )0 ~ 90

Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)-4 ~ 122

Storage Temperature (°C)-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )0 ~ 90

Storage Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )24.3

Audible Noise at 1.5M from Surface of Unit ( dBA )40

Certifications

CertificationsCE, RCM

RoHSYes
