Critical Power, Cooling and Racks > Uninterruptible Power Supply (UPS) > Network and Server > Smart-UPS On-Line > SRT8KRMXLI

APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

SKU: SRT8KRMXLI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
8kVA/8kW double-conversion on-line pure sine wave 6U rackmount UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit included)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192RMBP2) for extended runtime

Description

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection.
This 8000VA/8000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance.
The 6U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management.
The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown.
It comes with hard wire 3-wire/5-wire input, 6x IEC 320 C13, 4x IEC 60320 C19 outlets, and 2x IEC jumper cables.
The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Its dimensions are 715mm (depth) x 263mm (height) x 432mm (width) and weighs 111.82kg.
Ideal for servers, voice/data networks, medical labs, and light industrial applications.
It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE.
Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

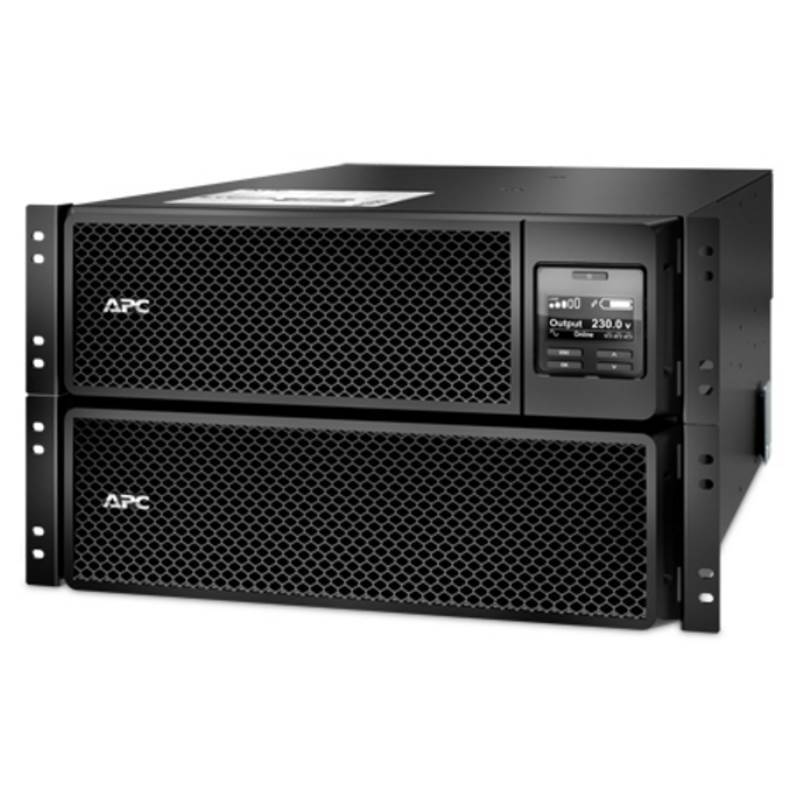

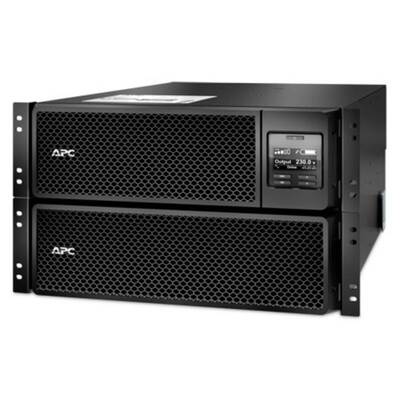

Product Images

Downloads & Documents

Compatible Products & Accessories

Batteries

SRT192RMBP2

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack

Racks

AR3130

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...

AR3140

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 19...

AR3140W

APC NetShelter SX, Networking Rack Enclosure, 42U, White, 19...

AR3150

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4...

AR3150SP

APC NetShelter SX, Server Rack Enclosure, 42U, Shock Packagi...

AR3150W

APC NetShelter SX, Server Rack Enclosure, 42U, White, 2258H ...

AR3155

APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H ...

AR3155SP

APC NetShelter SX, Server Rack Enclosure, 45U, Shock Packagi...

AR3157

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H ...

AR3157SP

APC NetShelter SX, Server Rack Enclosure, 48U, Shock Packagi...

AR3200

APC NetShelter SX, Server Rack Enclosure, Colocation, 42U, B...

AR3300

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...

Replacement battery

APCRBC140

APC Replacement Battery Cartridge for Smart-UPS On-Line, 192...

Service bypass panels

SBP6KRMI2U

APC Service Bypass Panel- 230V; 32A; MBB; Hardwire input; (4...

(SRT8KRMXLI)

Specifications - SRT8KRMXLI

Overview

Presentation	High density, double-conversion on-line power protection with scalable runtime.
Lead time	Usually in Stock

Main

Main Input Voltage	220 V AC 1 phase 230 V AC 1 phase 240 V AC 1 phase 380 V AC 3 phases 400 V AC 3 phases 415 V AC 3 phases
Input voltage	220 V 240 V 380 V 415 V
Input voltage limits	100...275 V adjustable (half load) 173...476 V adjustable (half load)
Number of input connectors	1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E)
Network frequency	40...70 Hz auto-sensing
Output voltage	220 V 240 V
Rated power in W	8000 W
rated power in VA	8000 VA
Output connection type	6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	Less than 2 %
Maximum configurable power in VA	8000 VA
Maximum configurable power in W	8000 W
UPS type	On-Line
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Complementary

Battery type	Lead-acid internal included
Emergency power off	Yes
Free slots	1
Preinstalled device	Network management card 3 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
UPS connectivity	Serial port USB port Embedded network management card 3 Available expansion slot
Surge energy rate	480 J
Number of rack unit	6U
Colour	Black
Height	263 mm
Width	432 mm
Depth	715 mm
Net weight	111.82 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Rack-mounted with included kit
Two post mountable	0
USB compatible	Yes
Provided equipment	CD with software Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails Temperature probe USB cable Warranty card Web/SNMP management card
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	High density
Redundant	No
Range of product	Smart-UPS On-Line
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE EAC IRAM RCM VDE
Marking	CE Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	55 dBA
Heat dissipation	1497 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	+/- 192 V (split battery referenced to neutral)
Extended runtime	1
Number of battery filled slots	0
Battery recharge time	1.5 h
Number of battery replacement quantity	2
Battery life	3…5 year(s)
Replacement battery	APCRBC140
Battery charger power	876 W rated
