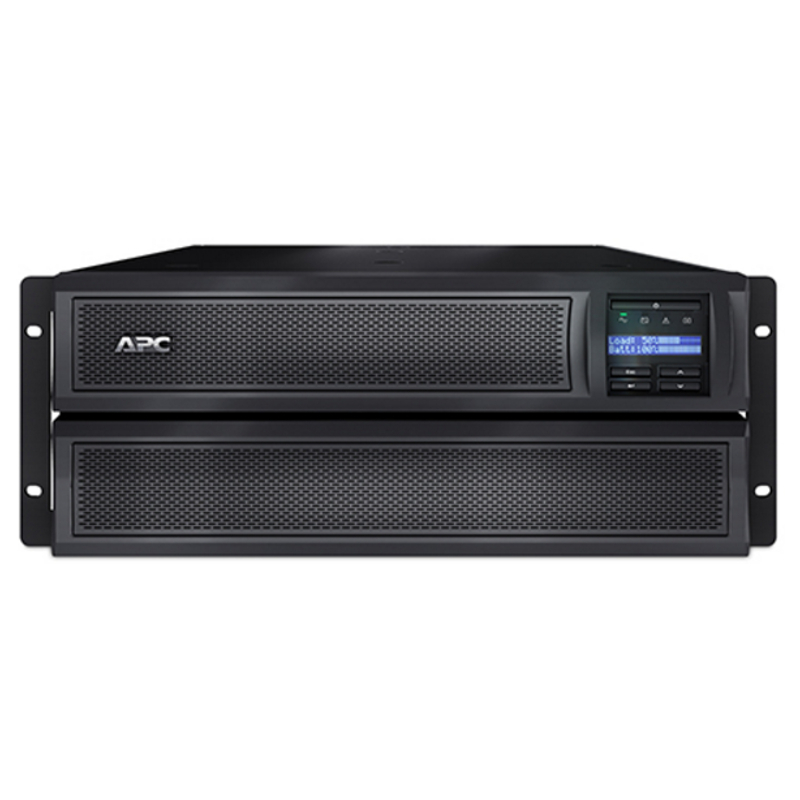

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

SKU: SMX3000HV | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
User-selectable high voltage setting of 200V-240V
Add up to 10 external battery packs (SMX120BP)
Short depth UPS provides extra space for cable management
Graceful shutdown using serial or USB cables via PowerChute Business Edition

Description

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime.
This 3000VA/2700W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications.
The 4U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown.
The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages.
It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, and 2x IEC jumper cables.
The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Its dimensions are 483mm (depth) x 432mm (height) x 178mm (width) and weighs 38.64kg.
Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters.
It conforms to EAC, CE, IRAM, RCM, TISI, and VDE, EN/IEC 62040-1/62040-2.

Product Images

Downloads & Documents

Compatible Products & Accessories

Batteries

SMX120BP

APC Smart-UPS X-Series External Battery Pack Rack/Tower 120V...

Communication Options

AP9640

Device monitoring and management, Network Management Cards, ...

AP9641

Device monitoring and management, Network Management Cards, ...

AP9643

Device monitoring and management, Network Management Cards, ...

AP9620

Protocol translation to UPS-Link, Management Options, Legacy...

AP9810

Dry contact, Management Options, Dry Contact I/O Accessory, ...

PDU

AP8702R-WW

Power Cord Kit (6 ea), Locking, C13 TO C14 (90 Degree), 0.6m

AP8702S-WW

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

AP8702S-WWX340

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Red

AP8702S-WWX590

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Blue

AP8704R-WW

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m

AP8704S-WW

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

AP8704S-WWX340

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Red

AP8704S-WWX590

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Blue

AP8706R-WW

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m

AP8706S-WW

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m

AP8706S-WWX340

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Red

AP8706S-WWX591

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Blue

Racks

AR3130

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...

AR3140

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 19...

AR3140W

APC NetShelter SX, Networking Rack Enclosure, 42U, White, 19...

AR3150

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4...

AR3150SP

APC NetShelter SX, Server Rack Enclosure, 42U, Shock Packagi...

AR3150W

APC NetShelter SX, Server Rack Enclosure, 42U, White, 2258H ...

NBRK0750

Rack Mount, Security and Environmental Appliance, NetBotz, 7...

AR8442

APC NetShelter Cable Management, Vertical Cable Manager, Cab...

AR8136BLK200

1U 19" Black Modular Toolless Airflow Management Blanking Pa...

AR3155

APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H ...

AR7580A

APC NetShelter Cable Manager, for 42U- 750W NetShelter SX, V...

AR3155SP

APC NetShelter SX, Server Rack Enclosure, 45U, Shock Packagi...

Replacement battery

APCRBC143

APC Replacement Battery Cartridge for Smart-UPS, 120V 5Ah le...

Sensors

AP9335T

Wired, Sensor, NetBotz, Temperature, 13 ft

AP9335TH

APC Temperature & Humidity Sensor

Service bypass panels

SBP3000RMI

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C1...

SBP3000RMHW

APC SERVICE BYPASS PDU, 230V 16AMP Hardwire

Subscriptions

SWNMC3SU-1Y-DIGI

Subscription, Network Management Cards, 1 year, Secure NMC S...

SWNMC3SU-2Y-DIGI

Subscription, Network Management Cards, 2 year, Secure NMC S...

SWNMC3SU-3Y-DIGI

Subscription, Network Management Cards, 3 year, Secure NMC S...

SWNMC3SU-4Y-DIGI

Subscription, Network Management Cards, 4 year, Secure NMC S...

SWNMC3SU-5Y-DIGI

Subscription, Network Management Cards, 5 year, Secure NMC S...

SWNMC3SU-6Y-DIGI

Subscription, Network Management Cards, 6 year, Secure NMC S...

(SMX3000HV)

Specifications - SMX3000HV

Overview

Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually in Stock

Main

Main Input Voltage	208 V AC 230 V AC
Input voltage	220 V 240 V
Input Connection Type	IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British
Input voltage limits	140...280 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	208 V 220 V 240 V
Rated power in W	2700 W
rated power in VA	3000 VA
Output connection type	8 IEC 320 C13 2 IEC Jumpers 2 IEC 320 C19
Crest factor	3 : 1
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	3000 VA
Maximum configurable power in W	2700 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Complementary

Battery type	Lead-acid internal included
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Emergency power off	Yes
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
UPS connectivity	Serial port USB port Available expansion slot
Surge energy rate	645 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit	4U
Cable length	1.8 m
Number of cables	1
Colour	Black
Height	432 mm
Width	178 mm
Depth	483 mm
Net weight	38.64 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Tower
Two post mountable	1
USB compatible	Yes
Provided equipment	CD with software Documentation CD Smart UPS signalling RS-232 cable User manual USB cable Rack mounting brackets
Number of power module	0
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	Extended run
Redundant	No
Range of product	Smart-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE EAC IRAM RCM TISI VDE UK PSTI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	55 dBA
Heat dissipation	184 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Extended runtime	1
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC143
Battery charger power	245 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	33.000 cm
Package 1 Width	59.500 cm
Package 1 Length	64.500 cm
Package 1 Weight	47.630 kg
Unit Type of Package 2	P12
Number of Units in Package 2	6
Package 2 Height	114.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	297.780 kg
Pallet unit layers	2
Pallet layers	4

Contractual warranty

Warranty (in months)

36 UPS|24 Battery
