Eaton SKU 5SX3000RAU

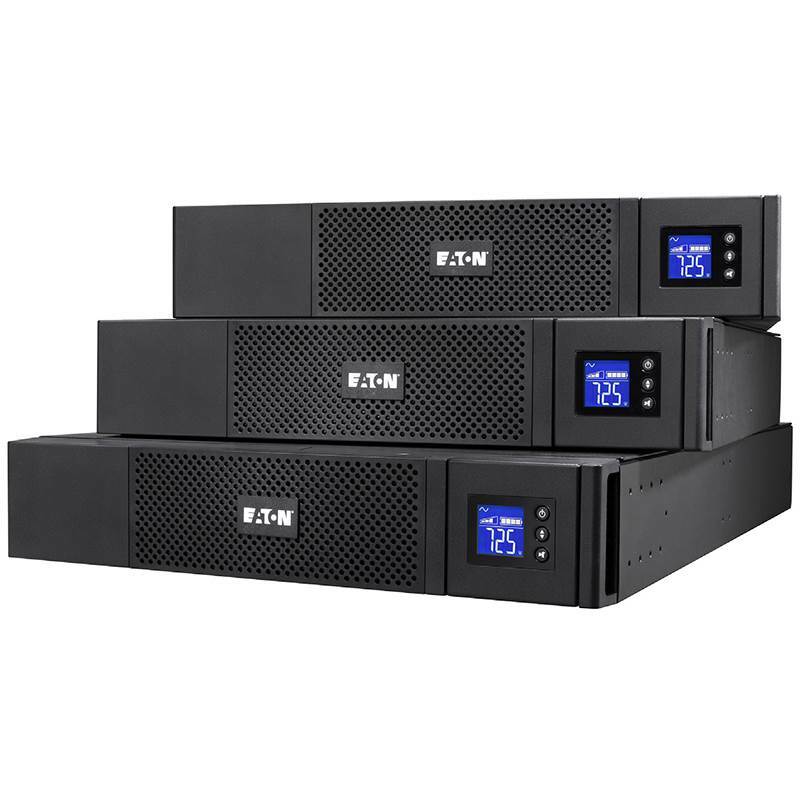

Eaton 5SX3000RAU 3000VA/3000W 230V 2U Rack/Tower UPS

The Eaton 5SX3000RAU 5SX is a 3000VA / 3000W line-interactive sine-wave UPS described for 230V operation in a 2U rackmount format; the structured specification also lists rack/tower installation.

The supplied description lists IEC C20-AU 16A input, 8 x IEC C13 outlets and 1 x IEC C19 outlet, an LCD monitoring interface, USB and serial connectivity. A rail kit is identified as not included.

3000VA / 3000WLine-interactive sine wave2U rack/tower2-year warrantyDeviceDeal authorised Eaton reseller

Product overview

3000VA / 3000W

The structured load capacity is 3000VA / 3000W with sine-wave output.

LCD and management ports

The source lists an LCD interface for real-time status and measurements, plus USB HID and serial connectivity.

2U installation

The product description identifies 2U rackmount installation and states that the rail kit is not included.

Source review: The structured dimensions are labelled height 441.2mm and width 86.2mm, which appears inconsistent with a 2U rack profile; the source labels are preserved and require confirmation.

Frequently asked questions

What capacity is listed for the Eaton 5SX3000RAU?

The structured specification lists 3000VA / 3000W.

How many output receptacles are listed?

The description lists 8 x IEC C13 outlets and 1 x IEC C19 outlet; the structured field lists 8 x IEC C13 10A; 1 x IEC C19 16A. Any difference is retained for review.

Is the rail kit included?

The supplied description states that the rail kit is not included.

What warranty is supplied?

The source lists a two-year limited Eaton manufacturer warranty.

(5SX3000RAU)

Features

Eaton 5SX3000RAU 3000VA/3000W 230V 2U Rack/Tower UPS

Power performance

Line-interactive topology
Sine-wave output
3000VA / 3000W
230V operation stated

Connections and monitoring

IEC C20-AU 16A
Description outputs: 8 x IEC C13 outlets and 1 x IEC C19 outlet
Structured outputs: 8 x IEC C13 10A; 1 x IEC C19 16A
LCD status and measurements
USB HID
Serial port

Installation and support

2U rackmount description
Rack/tower structured form factor
Rail kit not included
Two-year limited manufacturer warranty

Confirm the source differences noted above and the required rail kit before installation.

Technical specifications

Eaton 5SX3000RAU 3000VA/3000W 230V 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	5SX3000RAU
Series	5SX
Product type	Line-interactive UPS
Form factor	Rack / tower
Rack height	2U
Load capacity	3000VA / 3000W
Waveform	Sine wave
Power and connections
Input voltage	230V
Input connection stated in description	IEC C20-AU 16A
Structured plug / connector field	Australian 16A
Outputs stated in description	8 x IEC C13 outlets and 1 x IEC C19 outlet
Structured receptacle detail	8 x IEC C13 10A; 1 x IEC C19 16A
Serial port	Yes
USB HID-compliant port	Yes
Display and applications
Status display	LCD interface: real-time status and measurements
Applications listed	Ticket machine; kiosk; phone; ATM; server; desktop; IT equipment; storage
Physical properties
Approximate weight	35.30kg
Height field	441.2mm
Width field	86.2mm
Depth field	647mm

SKU	5SX3000RAU
Barcode #	743172088987
Brand	EATON
Shipping Weight	30.0000kg
Shipping Width	0.590m
Shipping Height	0.200m
Shipping Length	0.780m
Shipping Cubic	0.092040000m3

Warranty information

Eaton 5SX3000RAU 3000VA/3000W 230V 2U Rack/Tower UPS

2-Year Limited Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year limited Eaton manufacturer warranty in Australia, as listed in the supplied product information.
