UPS Systems OLS2000E

VA
2000
Watts
1800
Output Voltage ( Vac )
208 ± 1%220 ± 1%230 ± 1%240 ± 1%
Half Load Runtime ( min )
15
Outlets
Hardwire Terminal Block x 1IEC C13 x 4
ECO Mode
Pure Sine Wave Output
LCD Status Display
Generator Compatible

Overview

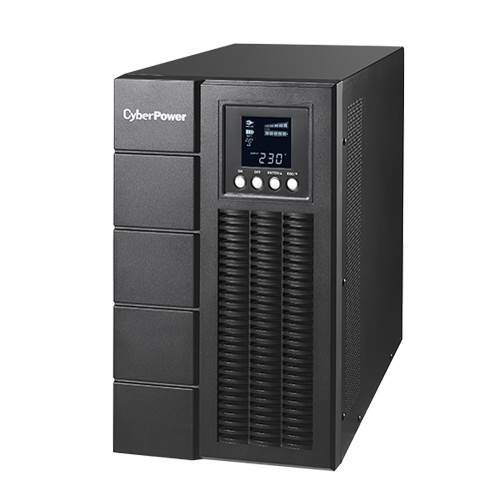

CyberPower OLS2000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

Features

  • Online (Double Conversion) UPS Topology
  • Generator Compatible
  • Zero Transfer Time
  • Extended Battery Module (EBM)
  • EMI and RFI Filtration
  • LCD Status Display
  • PowerPanel Management Software
  • ECO Mode
  • Overload Protection
  • Smart Battery Management (SBM)
  • Surge and Spike Protection
  • Phone/Fax/Modem/DSL/Network Protection
  • Emergency Power Off (EPO) Port
  • SNMP/HTTP Remote Management Capability (Optional)

What's in the Box

  • OLS2000E UPS
  • Power Cord
  • USB Cable
  • Phone Line
  • User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OLS2000E)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

Color LCD Panel

The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease. For Selected Models Only

Tiltable LCD Panel

The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position. For Selected Models Only

High Output Power Factor

The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. For Selected Models Only

UPS Parallel Expansion

The UPS parallel expansion capability allows users to customize their power systems by connecting multiple UPS units, therefore reaching even higher capacity and achieving N+X power redundancy to protect the systems against power failures. For Selected Models Only

Maintenance Bypass Switch

With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment. For Selected Models Only

Relay-type Dry Contact

With relay-type dry contact port, users can know UPS status from connected light bulb or alarm in order to monitor and manage UPS conveniently. For Selected Models Only

Extended Battery Module Auto-detection

The UPS comes with extended battery module auto-detection, which allows users to know the quantity of connected extended battery modules (EBM) in order to easily estimate UPS's runtime. For Selected Models Only

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

Built-in Remote Cloud Card by Ethernet

The UPS comes with a built-in Remote Cloud Card, which connects to PowerPanel Cloud to provide users with real-time UPS status information and enables remote monitoring of UPS systems installed in different places from anywhere. Free Trial Available | For Selected Models Only

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase
Form FactorTower
UPS TopologyOnline Double Conversion
Energy Saving TechnologyECO Mode Efficiency > 95%
Active PFC CompatibilityYes

Input

Generator CompatibilityYes
Nominal Input Voltage ( Vac )230 ± 10%
Input Voltage Range ( Vac )160 ~ 300
Adjustable Voltage Range ( Vac )0~50% Load for 110 ~ 300 Vac
0~60% Load for 120 ~ 300 Vac
0~80% Load for 140 ~ 300 Vac
0~100% Load for 160 ~ 300 Vac
Input Frequency ( Hz )50 ± 10
60 ± 10
Input Frequency DetectionAuto-sensing
Rated Input Current ( A )9
Input Power Factor0.98
Input Connector TypeIEC C20
Detachable Power Cord Plug TypeAU x 1
Power Cord Length (ft.)5.9
Power Cord Length (m.)1.8

Output

Capacity (VA)2000
Capacity (Watts)1800
On Battery WaveformPure Sine Wave
On Battery Voltage(s) ( Vac )208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Output Voltage SettingConfigurable
On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%
Output Frequency SettingConfigurable
Power Factor0.9
ECO Mode Voltage Tolerance± 15 %
Overload ProtectionInternal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode)110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode)>130% Load Immediately
Crest Factor3 : 1
Harmonic Distortion (Linear Load)THD＜3%
Harmonic Distortion (Non-linear Load)THD＜5%
Internal BypassAutomatic Bypass, Manual Bypass
Outlet(s) - Total5
Outlet TypeHardwire Terminal Block x 1
IEC C13 x 4
Outlet(s) - Battery & Surge Protected4
Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )15
Runtime at Full Load ( min )5
Typical Recharge Time ( Hours )5
Maximum Charging Current ( A )1
Start On BatteryYes
Smart Battery Management (SBM)Yes
User-replaceableNo
Compatible Extended Battery Module (EBM)BPSE72V45A
Max. EBM Quantity ( pcs )3

Surge Protection & Filtering

Surge Suppression ( Joules )440
EMI/RFI FiltrationYes
Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes
LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s)1
Emergency Power Off (EPO) PortYes
Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs )Power Cord x2, USB Cable x1, Phone Line x1
Power Management SoftwarePowerPanel Business (Recommended)
SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal
ColorBlack

Physical Size - UPS Module

Dimensions (WxHxD) (in.)7.72 x 12.27 x 16.38
Dimensions (WxHxD) (mm.)196 x 337 x 416
Weight (lbs.)52.47
Weight (kg.)23.8

Shipping Dimensions

Dimensions (WxHxD) (in.)11.61 x 18.03 x 20.43
Dimensions (WxHxD) (mm.)295 x 458 x 519
Weight (lbs.)57.32
Weight (kg.)26

Environmental

Operating Temperature (°F)32 ~ 104
Operating Temperature (°C)0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )20 ~ 90
Operating Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)
Storage Temperature (°F)-4 ~ 122
Storage Temperature (°C)-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )10 ~ 90
Storage Elevation ( feet/meters )0-4,921 feet (0-1,500 meters)
Online Thermal Dissipation ( BTU/hr )666
Audible Noise at 1.5M from Surface of Unit ( dBA )45

Certifications

CertificationsCE, RCM
RoHSYes

WARRANTY

Product Warranty Period ( Year )2
Battery Warranty Period ( Year )2
SKU OLS2000E
Barcode # 4712856271324
Brand CYBERPOWER
Shipping Weight 34.2000kg
