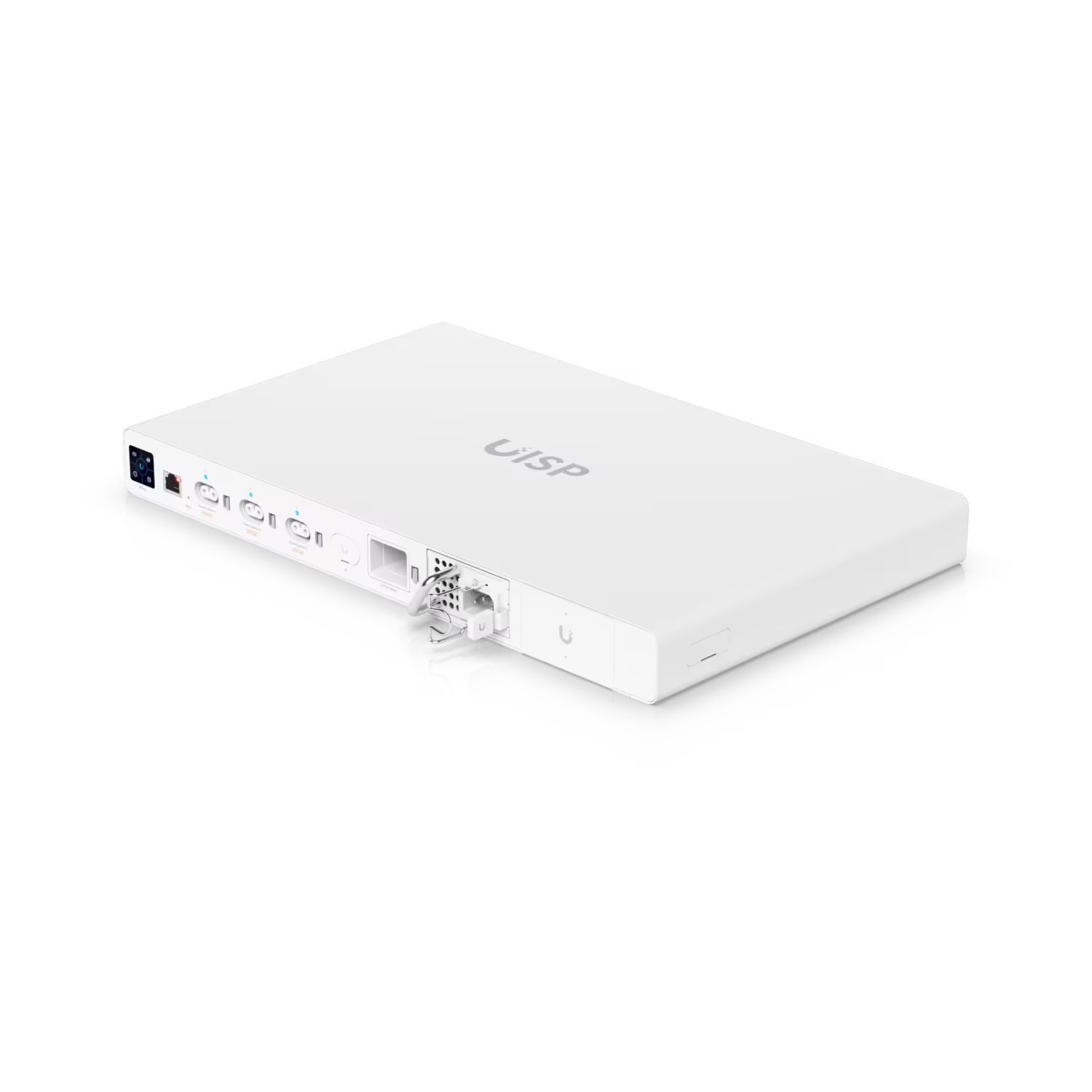

UISP Power Professional UISP-P-Pro, 10/100 MbE RJ45 LAN port, Universal AC inputs
Model # UISP-P-PRO
-
SKU: UISP-P-PRO
- Pick Up Available
- Australian Warranty
- Checkout Securely
UISP Power Professional UISP-P-Pro, 10/100 MbE RJ45 LAN port, Universal AC inputs,Compatible with UISP Console/ Router/Router Pro/Switch/Switch Pro
Uninterruptible power management system designed to support high-capacity WISP deployment sites.
(3) Power TransPort outputs
Delivers up to 480W* (27V DC) to supported UISP devices
(2) PSU bays with (1) 250W AC/DC Power Supply included
(1) DC battery port for an external 24V lead-acid battery (not included)
Supports SMS-over-LTE (Cat M1) notification**
Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
*With (2) power supplies installed.
**Requires a nano-SIM card from a Cat M1 SMS provider.
(UISP-P-PRO)

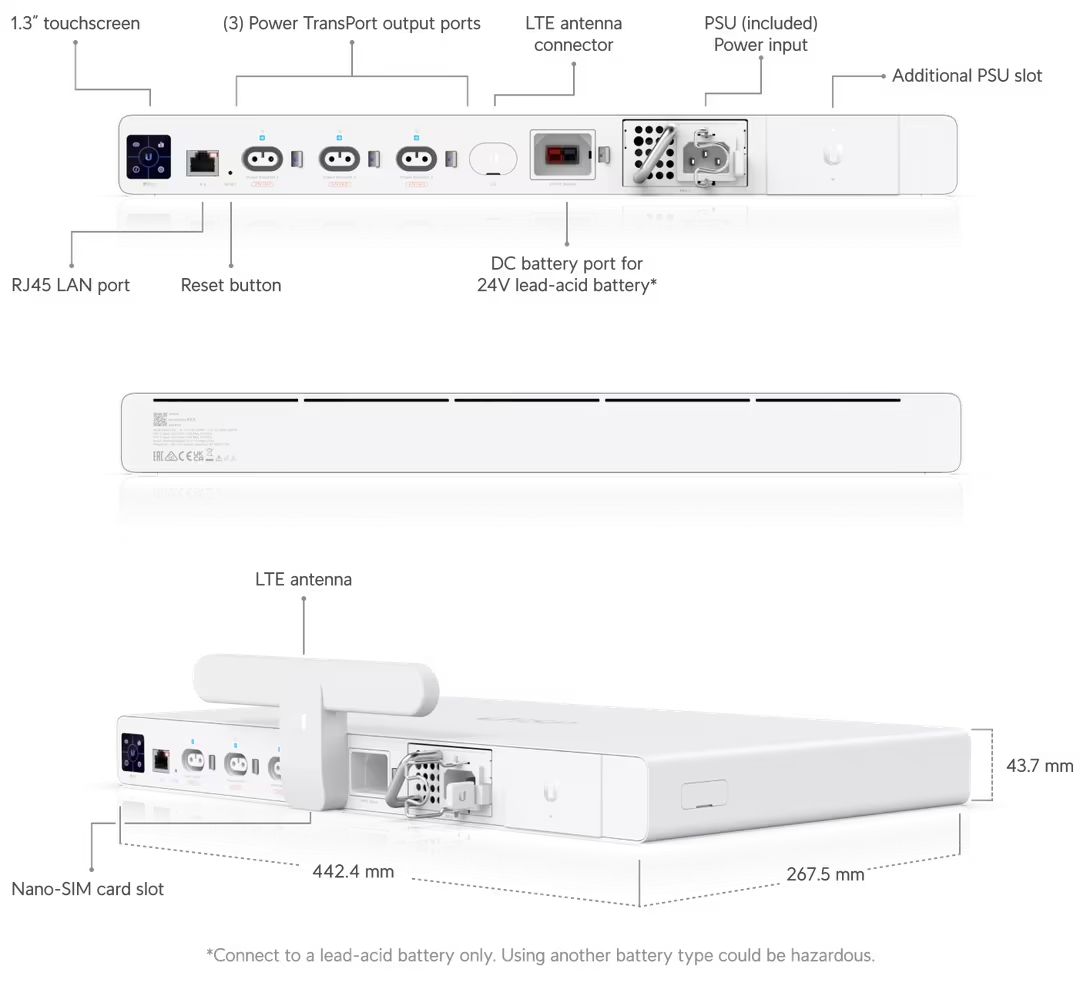

Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight | 4.16 kg (9.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate/ABS |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-Band Bluetooth |
| Power TransPort interface | (3) Power TransPort ports [up to 250W (27V DC) output each] Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs |
| Primary power | (2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz) (1) PSU included (Additional modules sold separately.) |
| Backup power | (1) 24V DC, 20.83A lead-acid battery input* (Battery not included.) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Supported voltage range | 100 to 240V AC |
| Max. power consumption | 3W (Excludes Power TransPort output and battery charger.) |
| ESD/EMP protection | Air: ±15 kV / Contact: ± 8 kV |
| LCM display | 1.3" touchscreen |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, PTCRB, AT&T |
| LTE | |
| Antenna | External (included) |
| SIM | Nano-SIM |
| Category | Cat M1 |
| Bands | US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready) EU: FDD-LTE Bands 1, 3, 8, 20, 28 |
| Notification type | SMS (Requires a nano-SIM card from a Cat M1 SMS provider.) |
| Input rating | 5V DC, 0.5A |
| LEDs | |
| System | Status |
| RJ45 data ports | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
| Software | |
| Management application | UISP: Version 1.4.8 and later |
| SKU | UISP-P-PRO |
| Barcode # | 810010076328 |
| Brand | UBIQUITI |
| Shipping Weight | 4.6000kg |
