Eaton SKU 9E3000IAU

Eaton 9E3000IAU 3000VA/2400W Online Tower UPS

The Eaton 9E3000IAU is a single-phase online double-conversion tower UPS identified as 3000VA / 2400W in the product name and description.

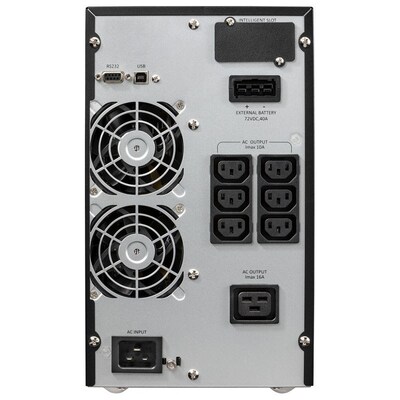

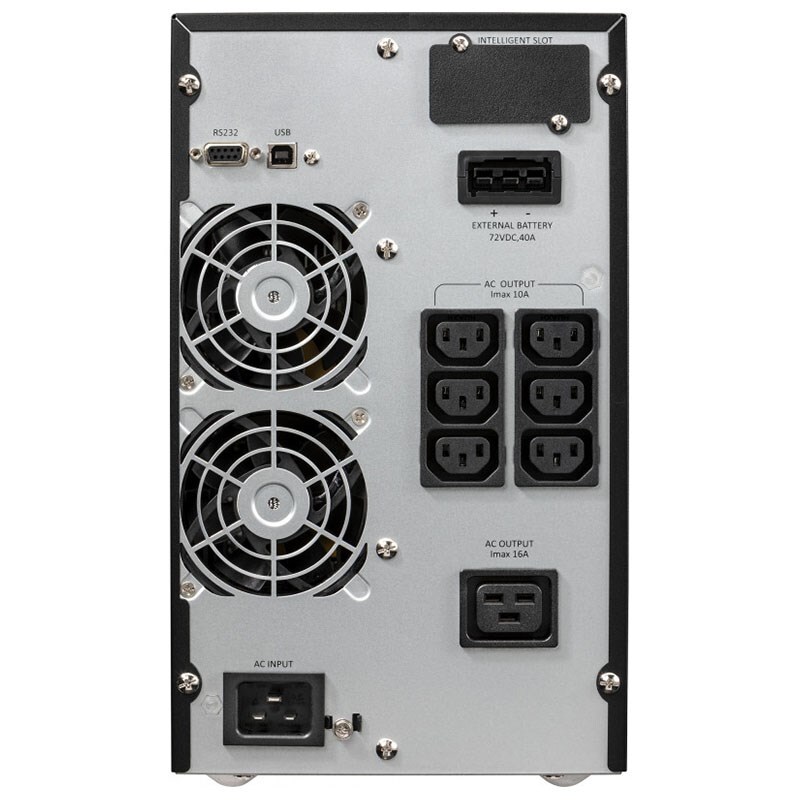

The source lists one IEC C20 16A input, six IEC C13 10A outputs, one IEC C19 16A output, 50/60Hz autosensing and RS-232 serial plus USB communication.

3000VA / 2400W description ratingOnline double conversionTower1-year warrantyDeviceDeal authorised Eaton reseller

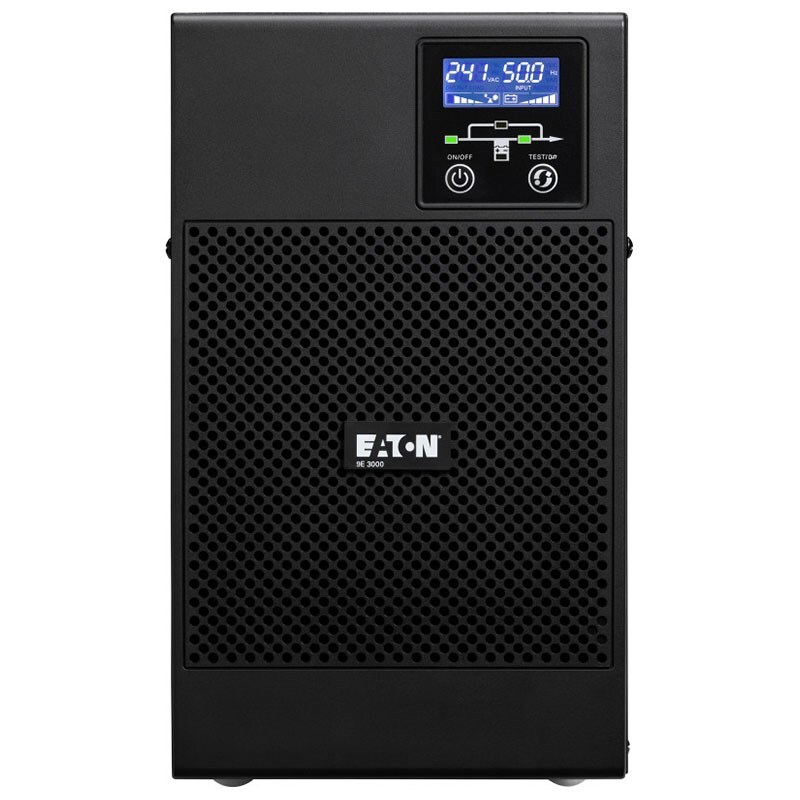

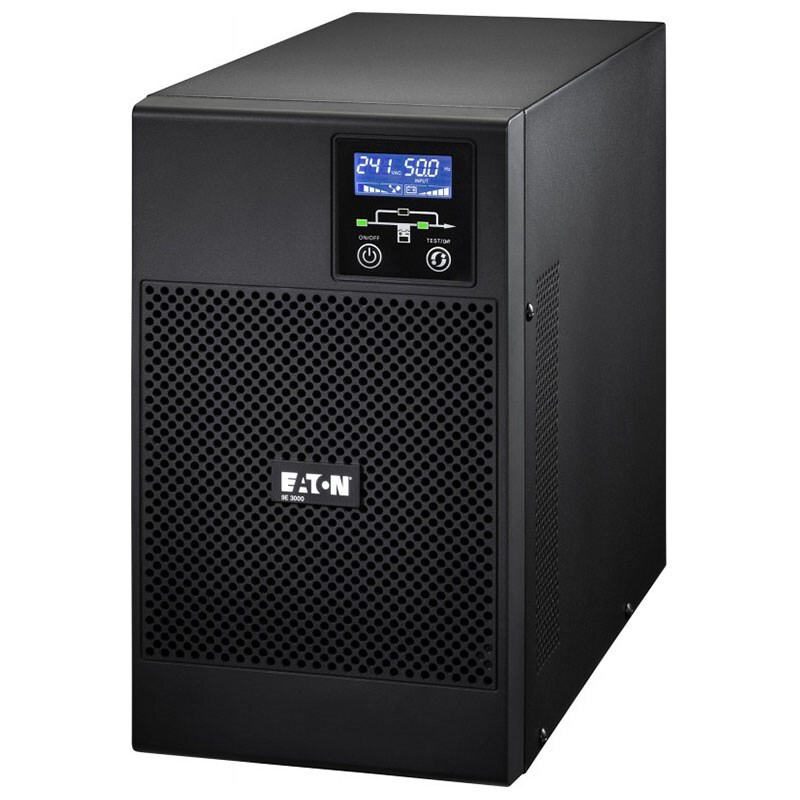

Eaton 9E3000IAU 3000VA 2400W online tower UPS shown in Image 02

Product overview

Online double conversion

The structured source classifies this model as a double-conversion online UPS.

IEC output mix

The description lists six IEC C13 10A outputs and one IEC C19 16A output.

Tower installation

The structured physical fields list a tower chassis measuring 330 x 190 x 399mm and weighing approximately 24.20kg.

Source review: The product name and description state 3000VA / 2400W, while the structured load-capacity field states 3000VA / 2700W. Both source values are preserved and require confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9E3000IAU?

The description lists 3000VA / 2400W, while the structured field lists 3000VA / 2700W.

Which output receptacles are listed?

The source lists six IEC C13 10A outputs and one IEC C19 16A output.

Which communication ports are listed?

The description lists RS-232 serial and USB.

What warranty is supplied?

The source lists a one-year Eaton manufacturer warranty, also expressed as 12 months limited.

(9E3000IAU)

Features

Eaton 9E3000IAU 3000VA/2400W Online Tower UPS

Power performance

Online double conversion
Single phase
Description rating: 3000VA / 2400W
Structured rating: 3000VA / 2700W

Connections and frequency

1 x IEC C20 16A input
6 x IEC C13 10A outputs
1 x IEC C19 16A output
50/60Hz autosensing
4070Hz frequency range

Communication and installation

RS-232 serial
USB
Tower form factor
330 x 190 x 399mm
Approximate weight: 24.20kg

Confirm the conflicting watt ratings in the supplied source before publication or purchase.

Technical specifications

Eaton 9E3000IAU 3000VA/2400W Online Tower UPS

Product details and ratings
Brand	Eaton
Model / SKU	9E3000IAU
Series	9E
Product type	Double-conversion online UPS
Phase	Single phase
Description rating	3000VA / 2400W
Structured load capacity	3000VA / 2700W
Power and connections
Input connector	1 x IEC C20 16A
Output receptacles	6 x IEC C13 10A; 1 x IEC C19 16A
Nominal-voltage options stated	208V; 220V; 230V; 240V
Nominal frequency	50/60Hz autosensing
Frequency range	4070Hz
Communication	RS-232 serial; USB
Physical properties
Form factor	Tower
Height	330mm
Width	190mm
Depth	399mm
Approximate weight	24.20kg

SKU	9E3000IAU
Barcode #	786689166625
Brand	EATON
Shipping Weight	26.4000kg
Shipping Width	0.032m
Shipping Height	0.049m
Shipping Length	0.045m

Warranty information

Eaton 9E3000IAU 3000VA/2400W Online Tower UPS

1-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a one-year Eaton manufacturer warranty in Australia, as listed in the supplied product information. The description also expresses this duration as a 12-month limited warranty.
