Critical Power, Cooling and Racks > Uninterruptible Power Supply (UPS) > Computer and Peripheral > Back-UPS > BX1600MI-AZ

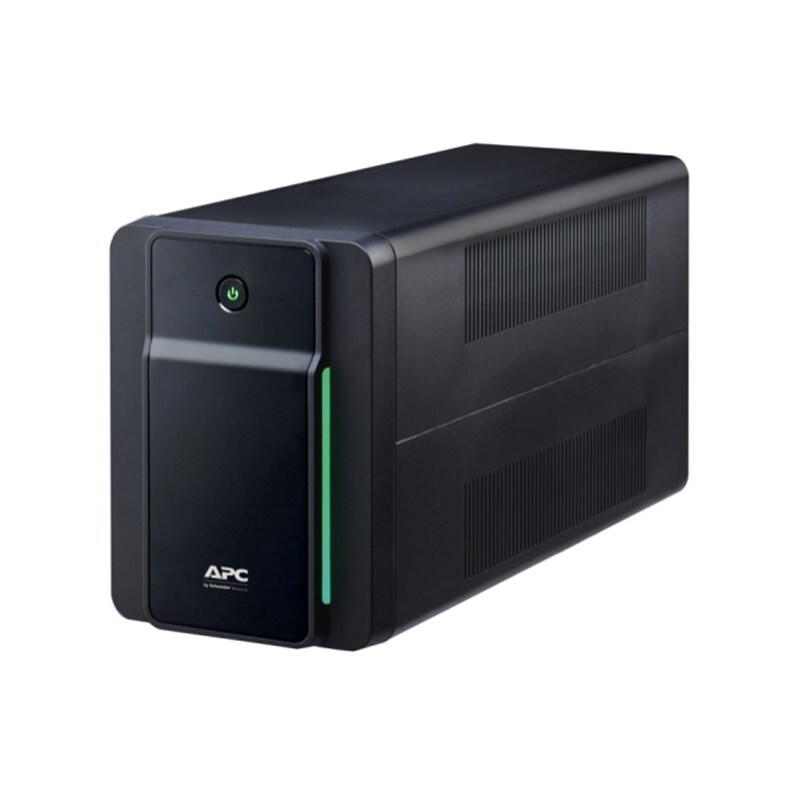

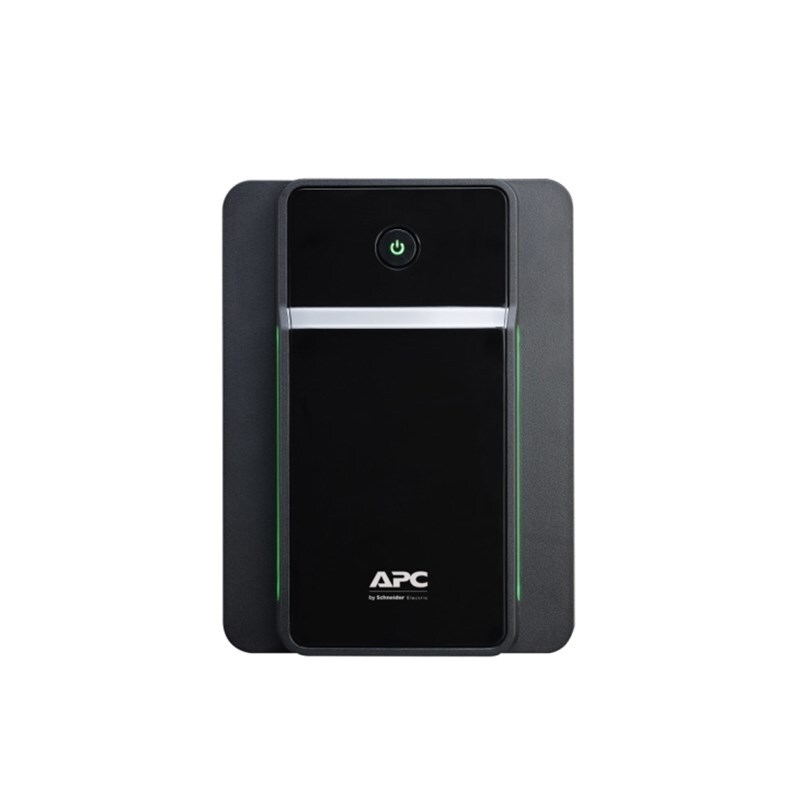

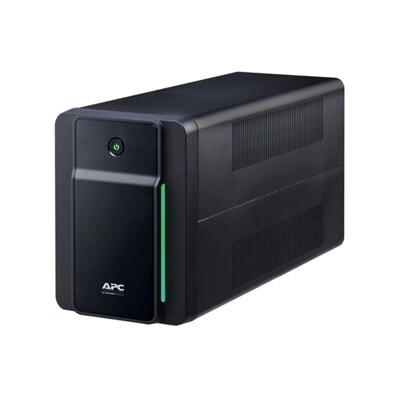

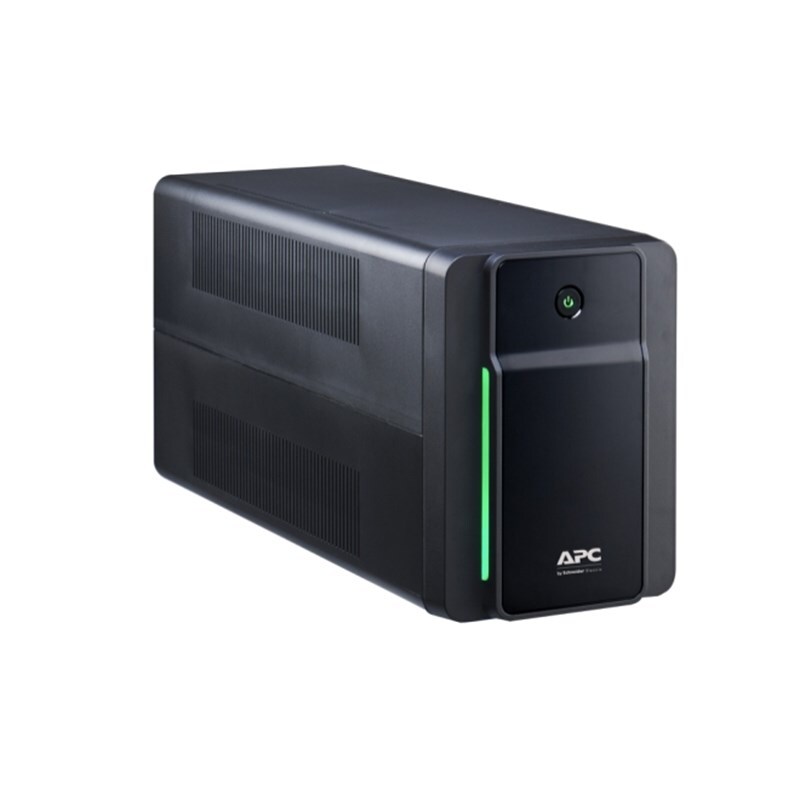

APC Back-UPS, Back-UPS, 1600VA, 230V, AVR, 4 Australian outlets

SKU: BX1600MI-AZ | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
Provides 1600VA and 900W of power, suitable for protecting multiple devices during power outages
AVR corrects voltage variations, ensuring stable power supply
Easy-to-read LED display provides real-time status of unit and utility power conditions
Allows the UPS to be powered on even when utility power is unavailable

Description

It provides 1600VA and 900W of power and nominal output voltage of 230V.
It features Automatic Voltage Regulation (AVR) to correct voltage fluctuations and includes 4 Australian outlets for battery backup and surge protection.
The UPS has a lead-acid battery with a recharge time of 8 hours.

Product Images

Downloads & Documents

Compatible Products & Accessories

Replacement battery

APCRBC176

APC Replacement Battery Cartridge #176

(BX1600MI-AZ)

Specifications - BX1600MI-AZ

Overview

Lead time

Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Cos phi	0.56
Input voltage limits	140...300 V
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	900 W
rated power in VA	1600 VA
Output connection type	4 Australian
USB Charging Port	None
Maximum configurable power in VA	1600 VA
Maximum configurable power in W	900 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Full load runtime	00:01:00 900 W
Half load runtime	00:06:30 450 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains

Complementary

Battery type	Lead-acid internal included
Control panel	LED Status display with on line : on battery
UPS connectivity	None
Surge energy rate	273 J
Cable length	1.2 m
Number of cables	1
Colour	Black
Height	190 mm
Width	140 mm
Depth	390 mm
Net weight	10.3 kg
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	CE CB RCM
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…3000 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	40 dBA
Operating altitude	0...3000 m

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	24 V
Battery graph comments	Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Battery life	3…5 year(s)
Replacement battery	APCRBC176

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	29.7 cm
Package 1 Width	49.5 cm
Package 1 Length	23.5 cm
Package 1 Weight	11.3 kg
SCC14	10731304410772

Contractual warranty

Warranty (in months)

SKU	BX1600MI-AZ
Barcode #	731304410829
Brand	APC
Shipping Weight	11.6000kg
Shipping Width	0.290m
Shipping Height	0.240m
Shipping Length	0.490m
