2200VA / 2200W
The supplied VA and watt ratings are equal, with pure-sine-wave output stated.
Eaton 5PX Gen 2 2200VA/2200W 230V Line Interactive 2U Rack/Tower UPS - 5PX2200IRT2UAUG2
Model # 5PX2200IRT2UAUG2
-
SKU: 5PX2200IRT2UAUG2
- Pick Up Available
- Australian Warranty
- Checkout Securely
Eaton SKU 5PX2200IRT2UAUG2
Eaton 5PX2200IRT2UAUG2 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS

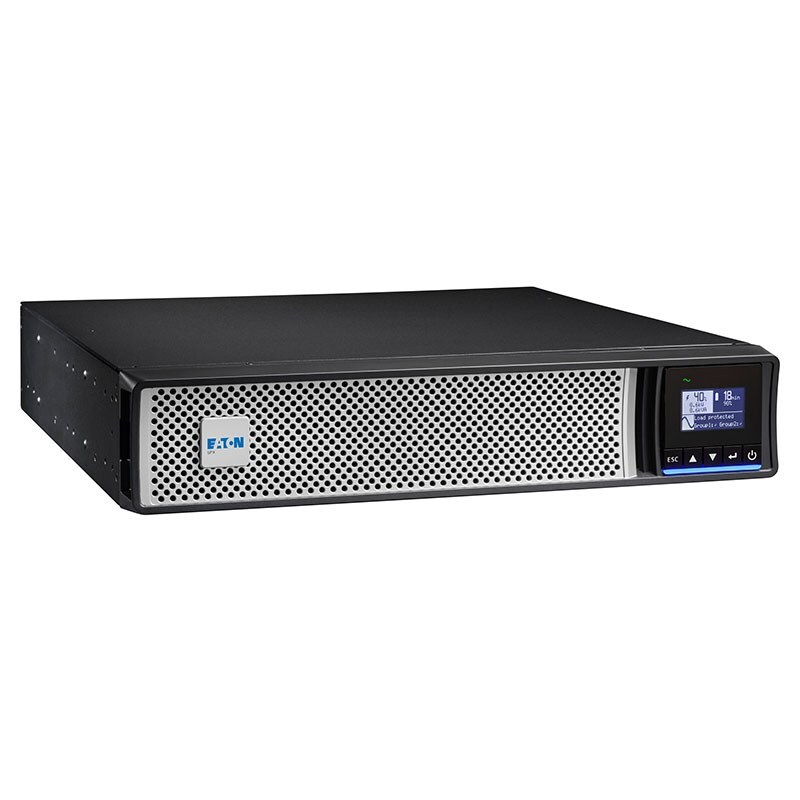

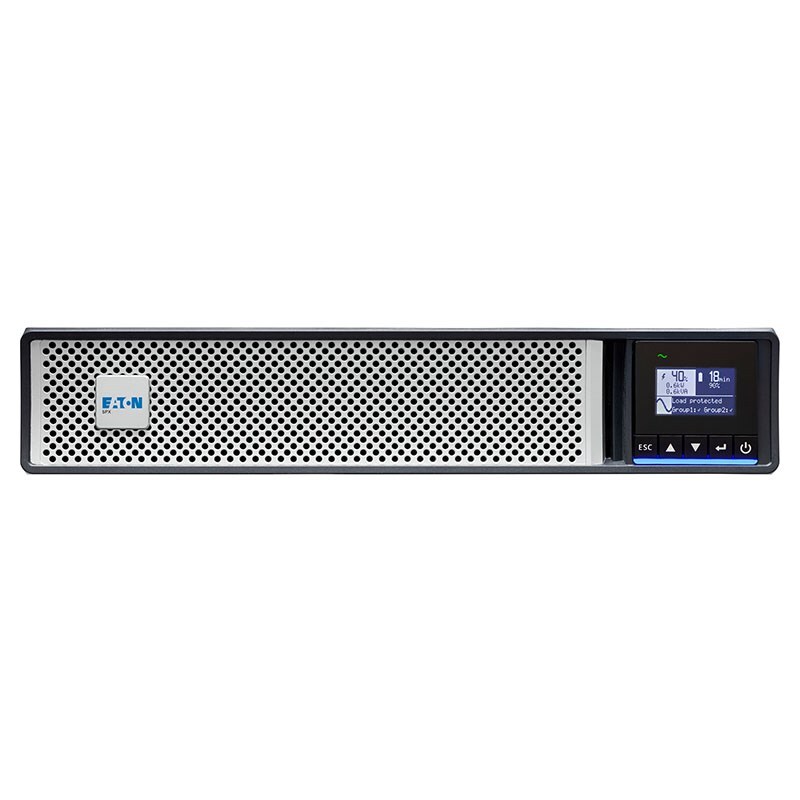

The Eaton 5PX2200IRT2UAUG2 5PX Gen 2 is a 230V line-interactive pure-sine-wave UPS rated at 2200VA / 2200W in a rack/tower format.
The supplied connection set lists 1 x IEC 60320 C20 (16A) input and 8 x IEC 60320 C13 (10A); 2 x IEC 60320 C19 (16A), with RS-232 serial, USB HID, a communication-card slot and ROO/RPO terminals.
2200VA / 2200WPure sine wave2U rack/tower3-year warrantyDeviceDeal authorised Eaton reseller
Product overview
Rack or tower deployment

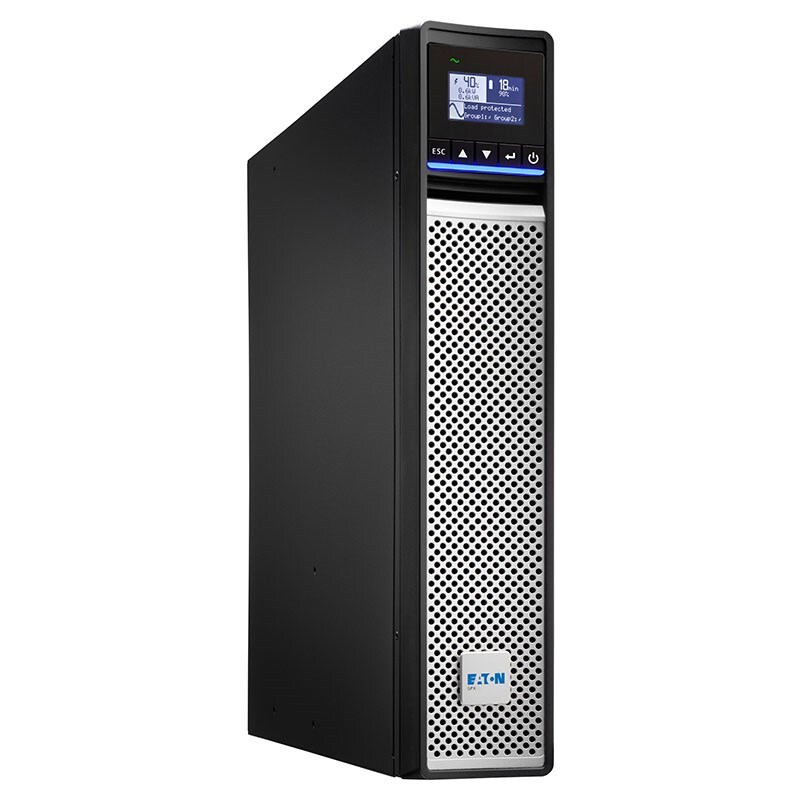

The product is supplied as a rack/tower UPS with a 2U description and replaceable hot-swappable battery.
Management connectivity
The source lists a graphical LCD, RS-232 serial, USB HID, communication-card slot and Network-M2 or Relay-MS management-card options.
Source review: Source review: The structured fields label the dimensions as height 438mm, width 603mm and depth 85.5mm, which appears inconsistent with the supplied 2U rack-height description; the source labels are preserved and require confirmation. The product name and description state 2U, while the structured rack-height field lists 2U / 3U; confirm the intended rack configuration.
Frequently asked questions
What power rating is listed for the Eaton 5PX2200IRT2UAUG2?
The supplied load capacity is 2200VA / 2200W.
What input and output connections are listed?
The source lists 1 x IEC 60320 C20 (16A) input and 8 x IEC 60320 C13 (10A); 2 x IEC 60320 C19 (16A).
Is the battery replaceable while installed?
The supplied specification lists the battery as replaceable and hot swappable.
What warranty is supplied?
The source lists a three-year Eaton manufacturer warranty.
(5PX2200IRT2UAUG2)
Features
Eaton 5PX2200IRT2UAUG2 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS
Power performance
- Line-interactive topology
- Pure sine wave
- Load capacity: 2200VA / 2200W
- Nominal voltage stated: 230V
Connections
- 1 x IEC 60320 C20 (16A)
- 8 x IEC 60320 C13 (10A)
- 2 x IEC 60320 C19 (16A)
- RS-232 serial
- USB HID
- Communication-card slot
- ROO / RPO terminals
Operation and installation
- Graphical LCD
- Replaceable hot-swappable battery
- Rack / tower form factor
- Rack-height field: 2U / 3U
- 40dB sound emission
- 40°C maximum operating temperature
Confirm the supplied physical-dimension labels and rack-height details before installation.
Technical specifications
Eaton 5PX2200IRT2UAUG2 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS
| General and power | |
|---|---|
| Brand | Eaton |
| Model / SKU | 5PX2200IRT2UAUG2 |
| Series | 5PX G2 |
| Product type | Line-interactive UPS |
| Topology / waveform | Line-interactive; pure sine wave |
| Load capacity | 2200VA / 2200W |
| Nominal voltage stated in description | 230V |
| Structured input-voltage values | 230V AC; 120V AC |
| Structured output-voltage values | 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Input voltage ranges listed | 150294V AC; 160294V AC |
| Description input-frequency ranges | 4770Hz (50Hz); 56.570Hz (60Hz) |
| Structured input frequency | 70Hz |
| Structured output frequency | 60Hz |
| Connections and receptacles | |
| Input connector | 1 x IEC 60320 C20 (16A) |
| Output receptacles | 8 x IEC 60320 C13 (10A); 2 x IEC 60320 C19 (16A) |
| Serial port | Yes |
| USB HID-compliant port | Yes |
| Communication card slot | Stated in description |
| Terminals | ROO / RPO |
| Network-management options | Network-M2 card; Relay-MS card |
| Battery, display and environment | |
| Hot-swappable battery | Yes |
| Replaceable battery | Yes |
| Status display | Graphical LCD display |
| Sound emission | 40dB |
| Maximum operating temperature | 40°C |
| Physical properties | |
| Form factor | Rack / tower |
| Rack-height field | 2U / 3U |
| Height field | 438mm |
| Width field | 603mm |
| Depth field | 85.5mm |
| Approximate weight | 28.20kg |
| Product colours listed | Silver; black |
| Applications listed | |
| Application / usage | Server; Switch; Storage device; Router |
| Package contents | |
| Included items | 5PX G2 2200VA rack/tower UPS; rack kit |
| Environmental and energy statements | |
| ENERGY STAR | Yes |
| SKU | 5PX2200IRT2UAUG2 |
| Barcode # | 743172033857 |
| Brand | EATON |
| Shipping Weight | 35.0000kg |
| Shipping Width | 0.024m |
| Shipping Height | 0.078m |
| Shipping Length | 0.058m |
Warranty information
Eaton 5PX2200IRT2UAUG2 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS
3-Year Eaton Manufacturer Warranty
DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
