Eaton SKU 5PXEBM72RT2UG2

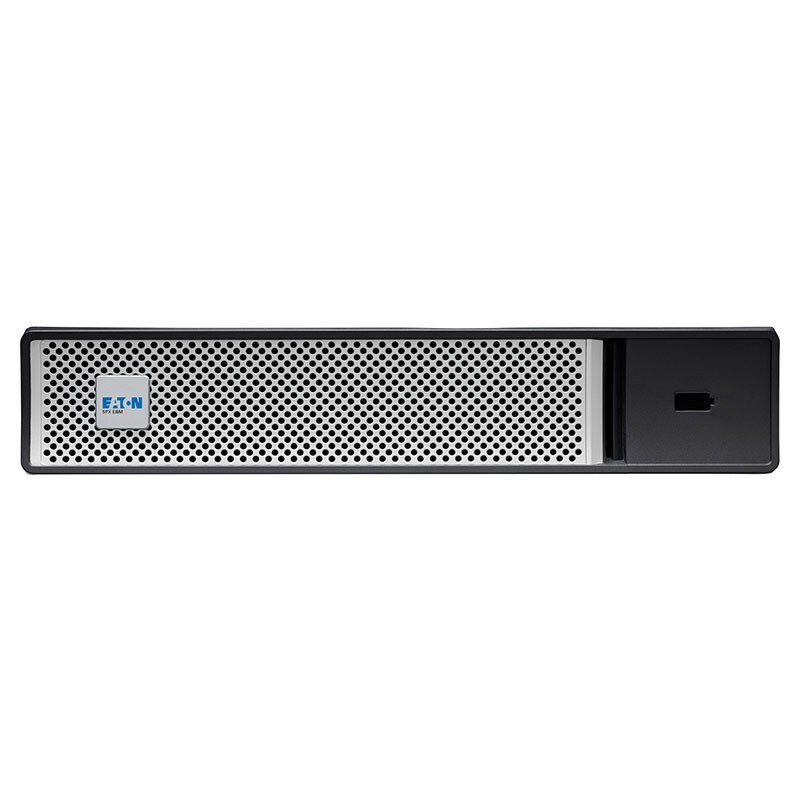

Eaton 5PXEBM72RT2UG2 5PX Gen 2 72V 2U Rack/Tower Extended Battery Module

The Eaton 5PXEBM72RT2UG2 is a 5PX Gen 2 extended battery module described for 2000VA3000VA UPS models, with a 72V DC battery system in a 2U rack/tower format.

The supplied description lists sealed lead-acid batteries rated at 12V / 9Ah and identifies compatibility with Eaton 5PX2000IRT2UAUG2, 5PX2200IRT2UAUG2 and 5PX3000IRT2UAUG2.

72V battery module2U rack/tower2000VA3000VA3-year warrantyDeviceDeal authorised Eaton reseller

Eaton 5PXEBM72RT2UG2 5PX Gen 2 72V 2U Rack/Tower Extended Battery Module

Product overview

72V extended runtime module

The description identifies a 72V DC extended battery module for compatible Eaton 5PX Gen 2 UPS systems.

2U rack/tower format

The supplied form factor is 2U rack/tower, with physical dimensions and weight listed in the specifications.

Compatibility requires confirmation

Use the model lists supplied in the technical table and confirm the exact UPS model before purchase.

Source review: The description lists a 72V DC battery module, while the structured output-voltage field lists 12V DC. Both source values are preserved and should be confirmed for the intended installation.

Frequently asked questions

Which UPS systems are listed for the Eaton 5PXEBM72RT2UG2?

The description lists Eaton 5PX2000IRT2UAUG2, 5PX2200IRT2UAUG2 and 5PX3000IRT2UAUG2. The structured compatibility field is also preserved in the technical specifications.

What battery voltage is stated for the Eaton 5PXEBM72RT2UG2?

The product description lists a 72V DC battery module.

What battery chemistry is listed?

The supplied record lists sealed lead-acid batteries rated at 12V / 9Ah.

What warranty is supplied?

The source lists a three-year Eaton manufacturer warranty.

(5PXEBM72RT2UG2)

Features

Eaton 5PXEBM72RT2UG2 5PX Gen 2 72V 2U Rack/Tower Extended Battery Module

Battery configuration

72V DC module voltage stated
12V / 9Ah battery rating
Sealed lead-acid battery
Battery quantity description: 12 (2 x 6 x 12V, 9Ah)

Installation

2U rack/tower format
Approximate weight: 40.40kg
Dimensions (H x W x D): 85.5mm x 438mm x 603mm

Compatibility and support

For 2000VA3000VA Eaton 5PX Gen 2 UPS models
Exact model list retained in specifications
Three-year Eaton manufacturer warranty

This is an extended battery module, not a standalone UPS. Confirm electrical and model compatibility before installation.

Technical specifications

Eaton 5PXEBM72RT2UG2 5PX Gen 2 72V 2U Rack/Tower Extended Battery Module

Product details
Brand	Eaton
Model / SKU	5PXEBM72RT2UG2
Series	5PX Gen 2
Product type	UPS battery pack
Form factor stated in description	2U rack / tower
UPS capacity range stated	2000VA3000VA
Battery information
Module battery voltage stated in description	72V DC
Battery rating stated	12V / 9Ah
Battery chemistry	Lead acid
Battery characteristics	Sealed
Battery quantity stated in description	12 (2 x 6 x 12V, 9Ah)
Structured output-voltage field	12V DC
Structured battery capacity	9000mAh
Compatibility
Compatible UPS models stated in description	Eaton 5PX2000IRT2UAUG2, 5PX2200IRT2UAUG2 and 5PX3000IRT2UAUG2
Compatibility in structured specifications	Eaton 5PX Gen 2 UPS
Physical properties
Approximate weight	40.40kg
Height	85.5mm
Width	438mm
Depth	603mm
Additional structured fields
Packaged quantity field	12
Environmentally friendly	Yes

SKU	5PXEBM72RT2UG2
Barcode #	743172104687
Brand	EATON
Shipping Weight	47.0000kg
Shipping Width	0.024m
Shipping Height	0.078m
Shipping Length	0.059m

Warranty information

Eaton 5PXEBM72RT2UG2 5PX Gen 2 72V 2U Rack/Tower Extended Battery Module

3-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
