Eaton SKU 5PXEBM48RT2UG2

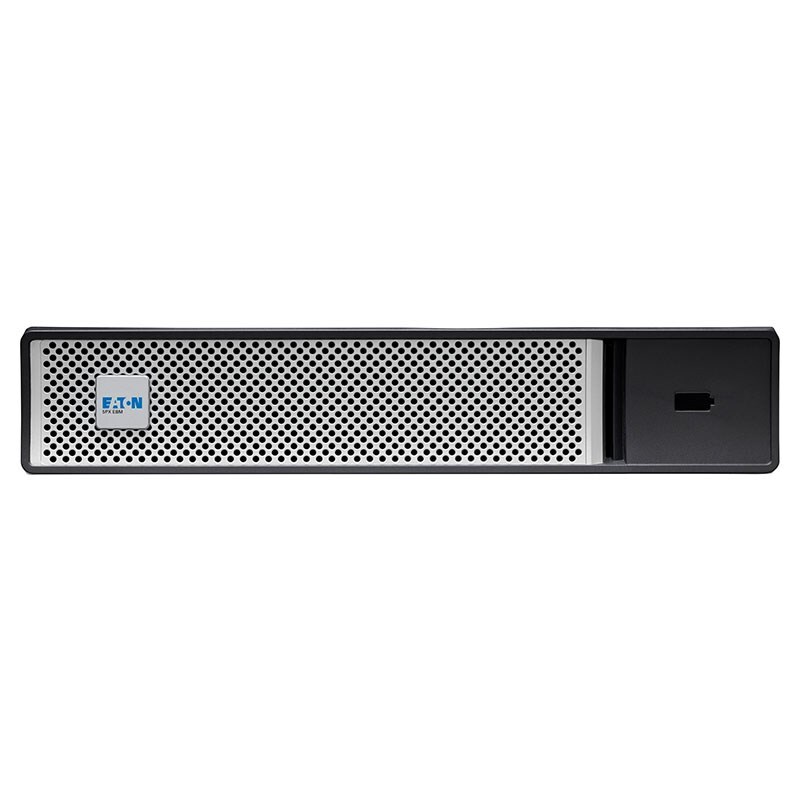

Eaton 5PXEBM48RT2UG2 5PX Gen 2 48V 2U Rack/Tower Extended Battery Module

The Eaton 5PXEBM48RT2UG2 is a 5PX Gen 2 extended battery module described for 1500VA UPS models, with a 48V DC battery system in a 2U rack/tower format.

The supplied description lists sealed lead-acid batteries rated at 12V / 9Ah and identifies compatibility with Eaton 5PX1500IRT2UAUG2.

48V battery module2U rack/tower1500VA3-year warrantyDeviceDeal authorised Eaton reseller

Eaton 5PXEBM48RT2UG2 5PX Gen 2 48V 2U Rack/Tower Extended Battery Module

Product overview

48V extended runtime module

The description identifies a 48V DC extended battery module for compatible Eaton 5PX Gen 2 UPS systems.

2U rack/tower format

The supplied form factor is 2U rack/tower, with physical dimensions and weight listed in the specifications.

Compatibility requires confirmation

Use the model lists supplied in the technical table and confirm the exact UPS model before purchase.

Source review: The description states a battery quantity of 12 but also gives the configuration as 2 x 4 batteries, and the description and structured specification provide different exact compatibility lists. These source details are preserved and require confirmation.

Frequently asked questions

Which UPS systems are listed for the Eaton 5PXEBM48RT2UG2?

The description lists Eaton 5PX1500IRT2UAUG2. The structured compatibility field is also preserved in the technical specifications.

What battery voltage is stated for the Eaton 5PXEBM48RT2UG2?

The product description lists a 48V DC battery module.

What battery chemistry is listed?

The supplied record lists sealed lead-acid batteries rated at 12V / 9Ah.

What warranty is supplied?

The source lists a three-year Eaton manufacturer warranty.

(5PXEBM48RT2UG2)

Features

Eaton 5PXEBM48RT2UG2 5PX Gen 2 48V 2U Rack/Tower Extended Battery Module

Battery configuration

48V DC module voltage stated
12V / 9Ah battery rating
Sealed lead-acid battery
Battery quantity description: 12 (2 x 4 x 12V, 9Ah)

Installation

2U rack/tower format
Approximate weight: 27.80kg
Dimensions (H x W x D): 85.5mm x 438mm x 448mm

Compatibility and support

For 1500VA Eaton 5PX Gen 2 UPS models
Exact model list retained in specifications
Three-year Eaton manufacturer warranty

This is an extended battery module, not a standalone UPS. Confirm electrical and model compatibility before installation.

Technical specifications

Eaton 5PXEBM48RT2UG2 5PX Gen 2 48V 2U Rack/Tower Extended Battery Module

Product details
Brand	Eaton
Model / SKU	5PXEBM48RT2UG2
Series	5PX Gen 2
Product type	External battery pack
Form factor stated in description	2U rack / tower
UPS capacity range stated	1500VA
Battery information
Module battery voltage stated in description	48V DC
Battery rating stated	12V / 9Ah
Battery chemistry	Lead acid
Battery characteristics	Sealed
Battery quantity stated in description	12 (2 x 4 x 12V, 9Ah)
Structured output-voltage field	48V DC
Structured battery capacity	9000mAh
Compatibility
Compatible UPS models stated in description	Eaton 5PX1500IRT2UAUG2
Compatibility in structured specifications	Eaton 5PX1000IRT2UG2; 5PX1000IRTNG2; 5PX1500IRT2UG2; 5PX1500IRTNG2
Physical properties
Approximate weight	27.80kg
Height	85.5mm
Width	438mm
Depth	448mm

SKU	5PXEBM48RT2UG2
Barcode #	743172104700
Brand	EATON
Shipping Weight	33.0000kg
Shipping Width	0.024m
Shipping Height	0.058m
Shipping Length	0.050m

Warranty information

Eaton 5PXEBM48RT2UG2 5PX Gen 2 48V 2U Rack/Tower Extended Battery Module

3-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
