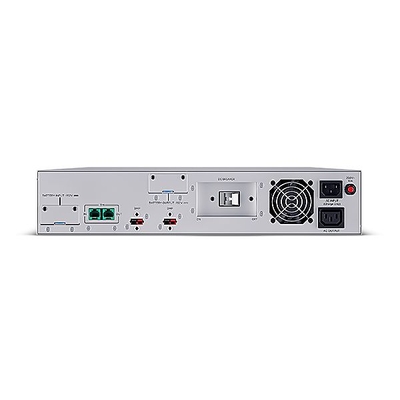

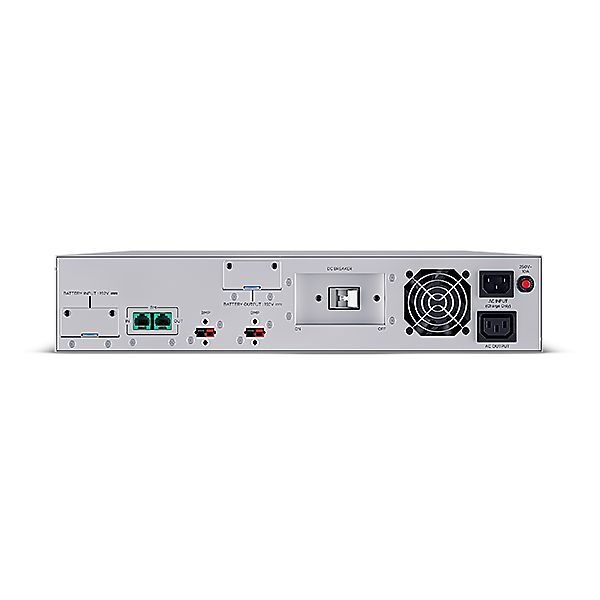

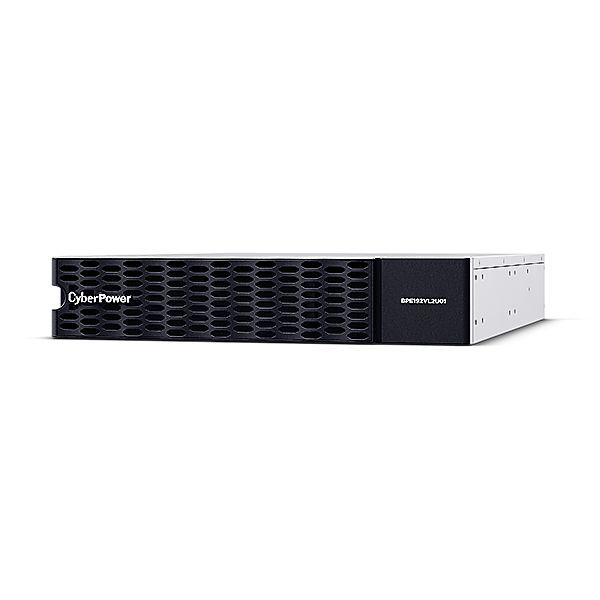

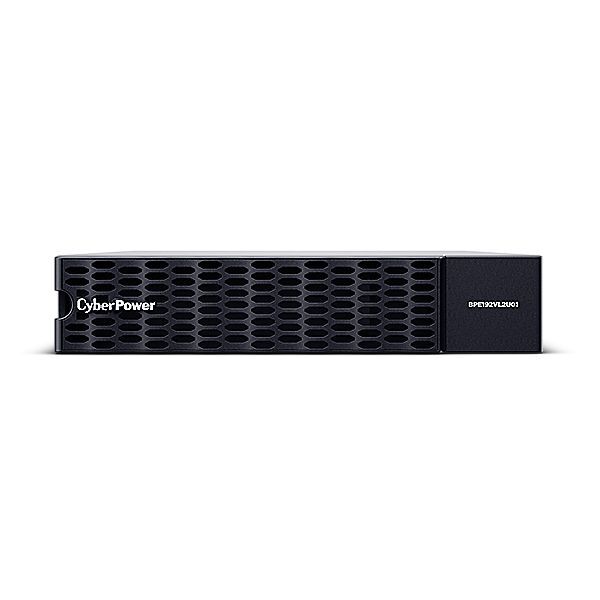

CyberPower BPE192VL2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs. The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system's reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.

Features

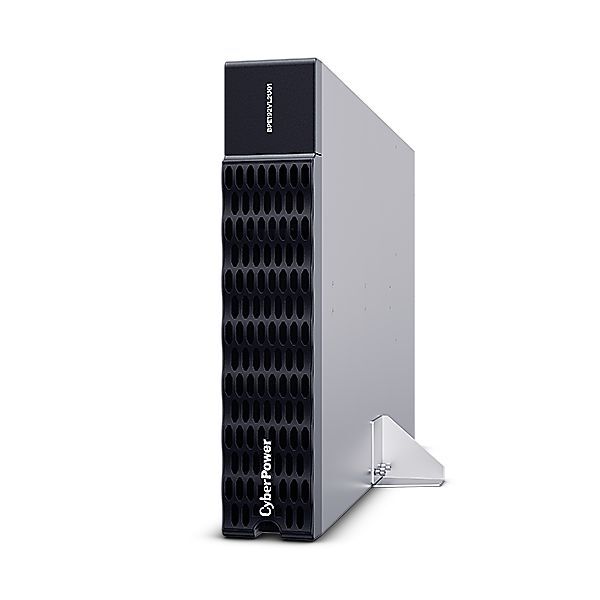

Rack/Tower Convertible Configurations
Built-in charger for Extended Battery Module (EBM)
EBM Expansion Capability

Sealed Lead-acid Batteries
Hot-swappable Batteries
Metal Housing

(BPE192VL2U01)

Category	Parameter	Specification
General	Nominal Output Voltage (Vdc)	192
	Rated Output Current (A)	60
Battery	Battery Type	Sealed Lead-acid
	Battery Quantity (pcs)	16
	Single Battery Voltage (V)	12
	Single Battery Capacity (AH)	6
Built-in Charger	Built-in Charger	Yes
	Typical Recharge Time (Hours)	4
	User-replaceable	Qualified Personnel Only
	Hot-swappable	Yes
	Expansion Ready	Yes
	Replacement Battery Pack	RBP0163 x 1 / RBP0164 x 1
	Replacement Battery Pack Quantity (pcs)	2
Physical	Form Factor	Rackmount, Tower
	Enclosure Construction	Metal
	Color	Silver
	Rackmount Rail	Yes
	Rackmount Ears	Yes
	Dimensions (WxHxD) (in.)	17.05 x 3.4 x 28.3
	Dimensions (WxHxD) (mm.)	433 x 86.5 x 720
	Weight (lbs.)	101.4
	Weight (kg.)	46
	Installed Rack Height (U)	2
Shipping Dimensions	Dimensions (WxHxD) (in.)	23.54 x 8.39 x 43.23
	Dimensions (WxHxD) (mm.)	598 x 213 x 1098
	Weight (lbs.)	119.3
	Weight (kg.)	54.1
Environmental	Operating Temperature (°F)	32 ~ 104
	Operating Temperature (°C)	0 ~ 40
	Operating Relative Humidity (Non-condensing) (%)	0 ~ 90
	Operating Elevation (feet/meters)	0-9,843 feet (0-3,000 meters)
	Storage Temperature (°F)	-4 ~ 113
	Storage Temperature (°C)	-20 ~ 45
	Storage Relative Humidity (Non-condensing) (%)	0 ~ 95
	Storage Elevation (feet/meters)	0-49,213 feet (0-15,000 meters)
Certifications	Certifications	FCC Class A, UL1778
	RoHS	Yes

SKU	BPE192VL2U01
Brand	CYBERPOWER
Shipping Weight	46.0000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Cyberpower BPE192VL2U01 Extended Batterey Module OL6000

Name: Cyberpower BPE192VL2U01 Extended Batterey Module OL6000
Brand: CYBERPOWER
SKU: BPE192VL2U01
Price: 2285 AUD
Availability: InStock
