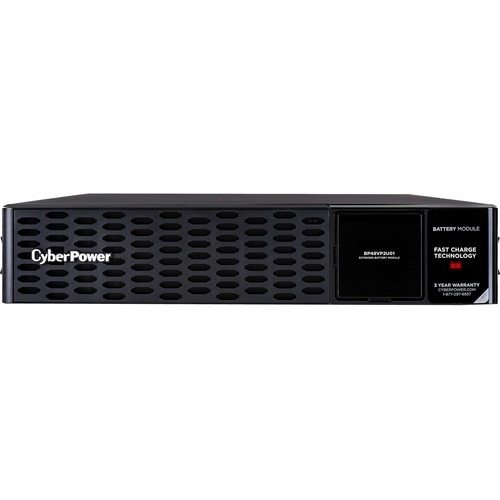

CyberPower BP48VP2U01 UPS Battery Pack - 48 V DC - Lead Acid
Model # BP48VP2U01
-
SKU: BP48VP2U01
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
CyberPower BP48VP2U01 UPS Battery Pack - 48 V DC - Lead Acid - User Replaceable - Hot Swappable - 6 Hour Recharge Time The CyberPower BP48VP2U01 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR750LCDRTXL2U, PR750RTXL2U, PR1000LCDRTXL2U, PR1000RTXL2U, and PR1500LCDRTXL2UA. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U01.
(BP48VP2U01)
Nominal Output Voltage ( Vdc )
| 48 |
Rated Output Current ( A )
| 60 |
Battery
Battery Type
| Sealed Lead-acid |
Battery Quantity ( pcs )
| 8 |
Single Battery Voltage ( V )
| 12 |
Single Battery Capacity ( AH )
| 7 |
Built-in Charger
| Yes |
Typical Recharge Time ( Hours )
| 6 |
User-replaceable
| Yes |
Hot-swappable
| Yes |
Expansion Ready
| Yes |
Battery Cartridge
| RBP0128 |
Battery Cartridge Quantity ( pcs )
| 2 |
Physical
Form Factor
| Rackmount, Tower |
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
Physical Size
Dimensions (WxHxD) (in.)
| 17.1 x 3.4 x 16.2 |
Dimensions (WxHxD) (mm.)
| 433 x 86.5 x 412 |
Weight (lbs.)
| 55.8 |
Weight (kg.)
| 25.3 |
Installed Rack Height ( U )
| 2 |
Shipping Dimensions
Dimensions (WxHxD) (in.)
| 22.1 x 10.8 x 20.9 |
Dimensions (WxHxD) (mm.)
| 560 x 275 x 530 |
Weight (lbs.)
| 70.8 |
Weight (kg.)
| 32.1 |
Environmental
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-49,213 feet (0-15,000 meters) |
Certifications
Certifications
| CE, FCC Class B, UL, RCM, VCCI |
RoHS
| Yes |
| SKU | BP48VP2U01 |
| Barcode # | 4712856277432 |
| Brand | CyberPower |
| Shipping Weight | 32.1000kg |
| Shipping Width | 0.026m |
| Shipping Height | 0.056m |
| Shipping Length | 0.053m |
