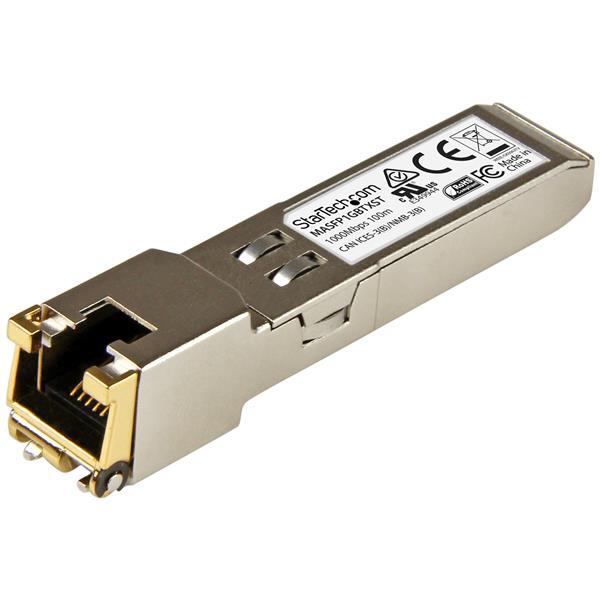

StarTech Cisco Meraki MA-SFP-1GB-TX Compatible SFP Transceiver Module - 10/100/1000BASE-TX MASFP1GBTXST
Model # MASFP1GBTXST
-
SKU: MASFP1GBTXST
- Pick Up Available
- Australian Warranty
- Checkout Securely
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
- Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
(MASFP1GBTXST)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Compatible Brand | Cisco Meraki | |
| Industry Standards | IEEE 802.3i 10BASE-T | |
| IEEE 802.3ab 1000BASE-T | ||
| IEEE 802.3u 100BASE-TX | ||
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| DDM | No | |
| Fiber Operating Mode | Full-Duplex | |
| Max Transfer Distance | 100 m (328 ft) | |
| Maximum Data Transfer Rate | 1000 Mbps | |
| MTBF | 4,655,371 hours | |
| Type | Copper | |
| Connector(s) | ||
| Local Unit Connectors | 1 - RJ-45 Female | |
| Special Notes / Requirements | ||
| System and Cable Requirements | MSA or Cisco Meraki compliant SFP port | |
| For use in 1 Gigabit networking equipment and media converters | ||
| Power | ||
| Power Consumption (In Watts) | < 1.3 W | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Storage Temperature | -40¡C to 85¡C (-40¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.5 in [1.4 cm] | |
| Product Length | 2.7 in [68 mm] | |
| Product Width | 0.7 in [18 mm] | |
| Weight of Product | 0.7 oz [21 g] | |
| Packaging Information | ||
| Package Height | 1.4 in [35 mm] | |
| Package Length | 3.7 in [93 mm] | |
| Package Width | 4.6 in [11.8 cm] | |
| Shipping (Package) Weight | 1.8 oz [51 g] | |
| What's in the Box | ||
| Included in Package | 1 - SFP transceiver | |
| SKU | MASFP1GBTXST |
| Barcode # | 65030869461 |
| Brand | STARTECH |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000550000m3 |
