StarTech.com SFP10GSRXST

Cisco SFP-10G-SR-X compatible 10GBASE-SR SFP+ transceiver

A Cisco SFP-10G-SR-X compatible 10GbE SFP+ optical module for multimode fibre, with duplex LC, 850nm optics, DDM and reach up to 300m.

10GbEMultimode fibreLC / 850nm / 300mLifetime warranty

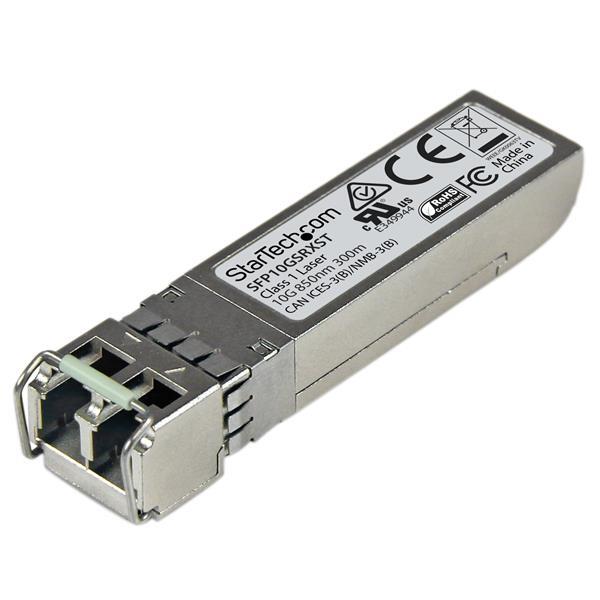

StarTech SFP10GSRXST Cisco-compatible 10GBASE-SR multimode SFP+ transceiver

Key capabilities

Cisco SFP-10G-SR-X compatible

Programmed and tested for compatible Cisco switches and routers.

300m multimode reach

Supports 10GBASE-SR links up to 300m / 984ft.

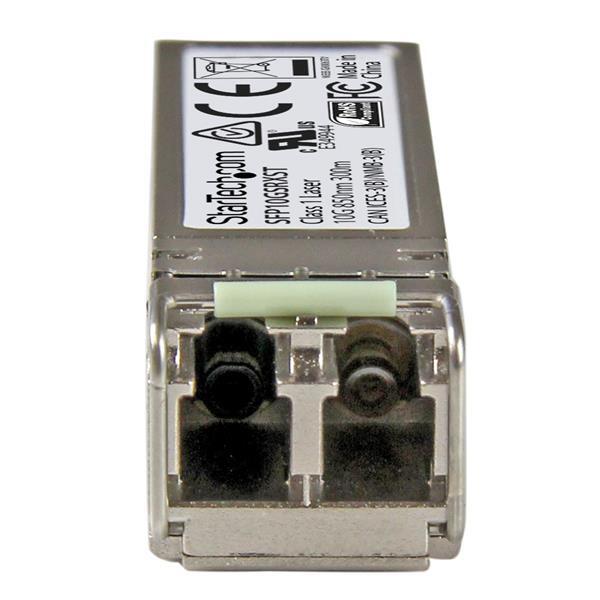

850nm duplex LC

Uses an LC duplex optical interface operating at 850nm.

DDM and hot swap

Digital Diagnostics Monitoring is supported and the module is hot-swappable.

What to know before buying

Confirm the target networking equipment accepts Cisco SFP-10G-SR-X compatible SFP+ modules and that the multimode fibre installation is suitable for the required 10GBASE-SR distance.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFP10GSRXST compatible with?

It is designed as a Cisco SFP-10G-SR-X compatible SFP+ transceiver.

What speed does it support?

10Gbps / 10 Gigabit Ethernet.

What fibre type does it use?

Multimode fibre.

What connector and wavelength are used?

Duplex LC at 850nm.

What is the maximum distance?

Up to 300m / 984ft.

Does it support DDM?

Yes.

Is it hot-swappable?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFP10GSRXST)

Features and highlights

Cisco SFP-10G-SR-X compatible

Programmed and tested for compatible Cisco switches and routers.

300m multimode reach

Supports 10GBASE-SR links up to 300m / 984ft.

850nm duplex LC

Uses an LC duplex optical interface operating at 850nm.

DDM and hot swap

Digital Diagnostics Monitoring is supported and the module is hot-swappable.

10GbE
Multimode fibre
LC / 850nm / 300m
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFP10GSRXST.

Warranty Information

Warranty	Lifetime

Hardware

Compatible Brand	Cisco
Industry Standards	IEEE 802.3ae 10GBASE-SR
WDM	No

Performance

Compatible Networks	10 Gbps
DDM	Yes
Fiber Operating Mode	Full-Duplex
Max Transfer Distance	300 m (984 ft)
Maximum Data Transfer Rate	10 Gbps
MTBF	1,967,709 hours
Type	Multi Mode
Wavelength	850nm

Connector(s)

Local Unit Connectors	1 - Fiber Optic LC Duplex Female

Special Notes / Requirements

Note	For use in 10 Gigabit fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP+ port

Power

Power Consumption (In Watts)	< 1.2 W (exact-product narrative)

Environmental

Humidity	5~95% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Color	Silver
Enclosure Type	Aluminum
Product Height	0.5 in [1.3 cm]
Product Length	2.3 in [58.4 mm]
Product Width	0.5 in [13.9 mm]
Weight of Product	0.8 oz [22 g]

Packaging Information

Package Height	1.3 in [32 mm]
Package Length	3.7 in [93 mm]
Package Width	4.7 in [11.9 cm]
Shipping (Package) Weight	1.8 oz [50 g]

What's in the Box

Included in Package	1 - SFP+ transceiver

SKU	SFP10GSRXST
Barcode #	65030869256
Brand	Startech
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
