StarTech.com · J4858CST

StarTech J4858CST HPE J4858C-Compatible 1000BASE-SX SFP Transceiver

HPE J4858C-Compatible 1000BASE-SX SFP Transceiver for professional networking or ergonomic workstation applications.

Quick answer: J4858CST provides a 1GbE 1000BASE-SX link over multimode fibre with an LC duplex connection.

Best forShort-range fibre uplinks in compatible HPE switches and routers, including links up to 550m with suitable multimode fibre.

Check before orderingConfirm the host accepts an HPE J4858C-coded SFP and verify fibre type, LC duplex connectors, link distance and wavelength.

Answers before you buy

Frequently asked questions

What is StarTech J4858CST?

It is a HPE-compatible multimode SFP transceiver that provides a 1GbE 1000BASE-SX link over multimode fibre with an LC duplex connection.

Which connections or mounting method are provided?

SFP slot to LC duplex fibre

What performance is specified?

1000BASE-SX; up to 1.25Gbps; 850nm; multimode fibre; up to 550m

Does it require power?

Less than 1W

What fibre and distance does it support?

It supports multimode fibre at 850nm for links up to 550m, subject to the fibre grade and host equipment.

Does it support Digital Diagnostic Monitoring?

Yes. DDM is supported when used with a compatible host and management platform.

What should be checked before ordering?

Confirm the host accepts an HPE J4858C-coded SFP and verify fibre type, LC duplex connectors, link distance and wavelength.

What warranty applies?

J4858CST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(J4858CST)

Features & highlights

Why choose J4858CST?

?Purpose-built designSFP slot to LC duplex fibre

?Specified performance1000BASE-SX; up to 1.25Gbps; 850nm; multimode fibre; up to 550m

?Power arrangementLess than 1W

?Construction and deploymentHot-swappable aluminium SFP module with DDM

?Key capabilityDigital Diagnostic Monitoring reports supported transceiver operating information to compatible management tools.

?Installation advantageDesigned, programmed and tested for HPE J4858C host compatibility.

Compatibility reminder: Confirm the host accepts an HPE J4858C-coded SFP and verify fibre type, LC duplex connectors, link distance and wavelength.

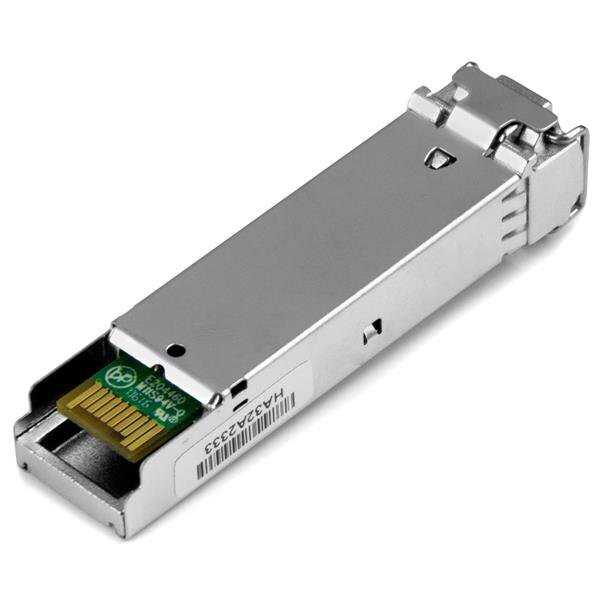

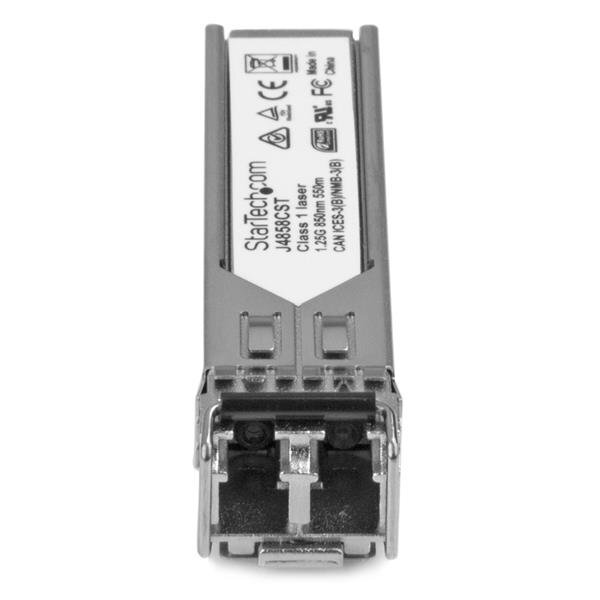

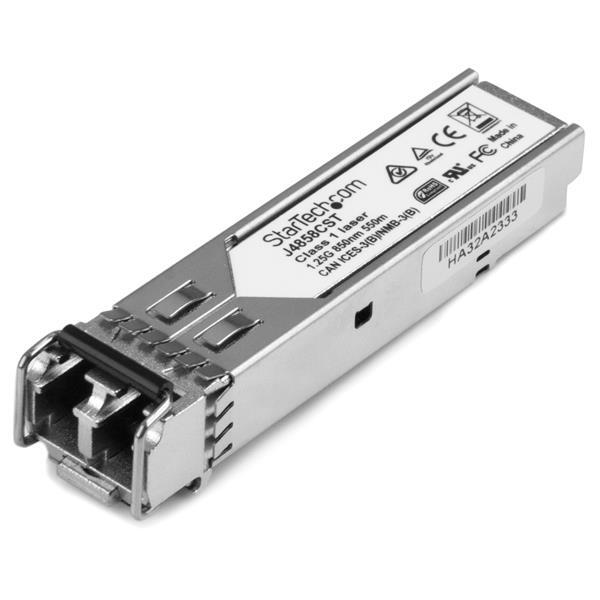

StarTech J4858CST HPE J4858C-Compatible 1000BASE-SX SFP Transceiver product image

Technical specifications

J4858CST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3z 1000BASE-SX
Material	Aluminium
Performance
Maximum Data Transfer Rate	1.25Gbps
Fibre Type	Multimode
Wavelength	850nm
Maximum Distance	550m
DDM	Yes
Power Consumption	<1W
MTBF	3,381,761 hours
Connectors
Connector A	SFP slot
Connector B	LC duplex fibre
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Physical Characteristics
Dimensions	57 × 14 × 13mm
Weight	18g
What's in the Box
Included	1 × SFP transceiver module
