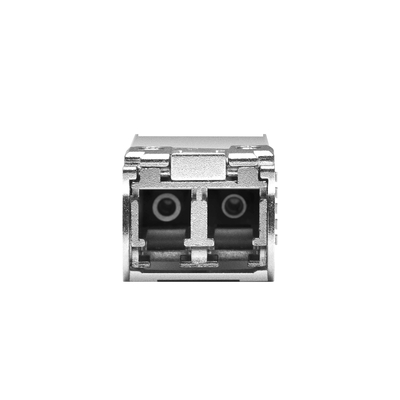

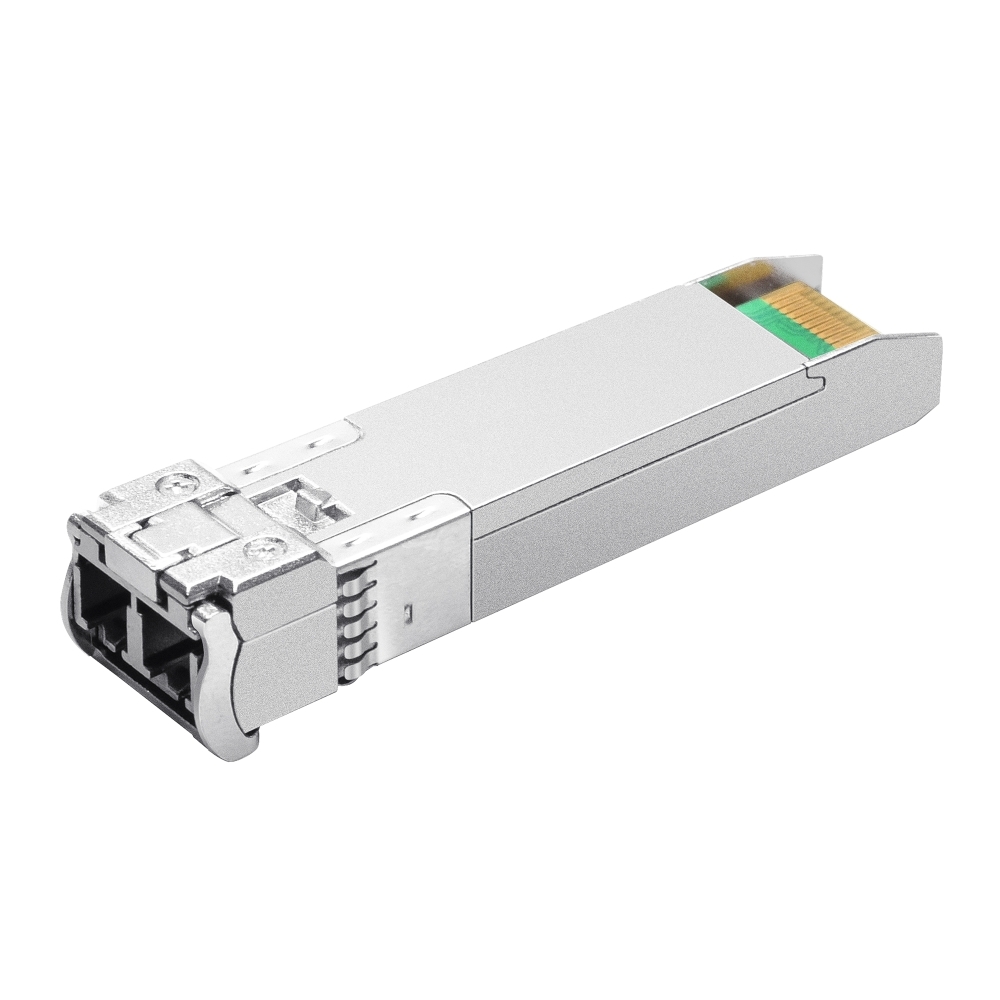

TP-LINK SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
(SM6110-LR)
PACKAGE CONTENTS | |
---|---|
Package Contents | • SM6110-LR • Installation Guide |
HARDWARE FEATURES | |
---|---|
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Dimensions ( W x D x H ) | 2.24*0.55*0.47 in (57*14*12 mm) |
TRANSCEIVER | |
---|---|
Standards and Protocols | • IEEE 802.3ae, 802.3cc • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP |
Wavelength | 1310 nm |
Power Supply | 3.3V |
Fiber Type | 9/125um Single-Mode |
Max. Cable Length | 10 km |
Support Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |
Connector | Duplex LC/UPC |
Regulatory Compliance | CE, FCC, RoHS |
Environment | • Operating Temperature: 0°C to 70°C (32°F to 158°F) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH, Non-Condensing • Storage Humidity: 5% to 90% RH, Non-Condensing |
SKU | SM6110-LR |
Brand | TP-LINK |
Manufacturer Warranty : 3 Manufacturer Warranty
