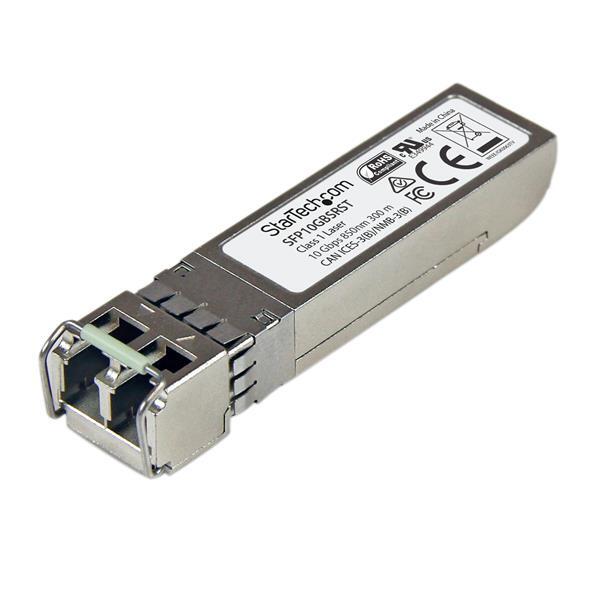

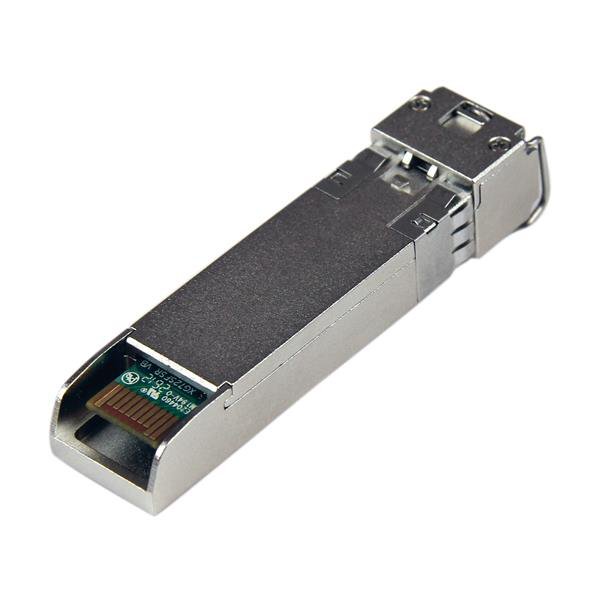

StarTech MSA Compliant SFP+ Transceiver Module - 10GBASE-SR SFP10GBSRST
Model # SFP10GBSRST
-
SKU: SFP10GBSRST
- Pick Up Available
- Australian Warranty
- Checkout Securely
MSA compliant 10GBASE-SR multimode SFP+ transceiver
An MSA-compliant 10GBASE-SR SFP+ module for 10GbE multimode fibre links up to 300m, using duplex LC at 850nm with DDM.
Key capabilities
MSA compliant
Designed for 10GBASE-SR compatible MSA switches and routers.
300m multimode reach
Supports optical links up to 300m / 984ft.

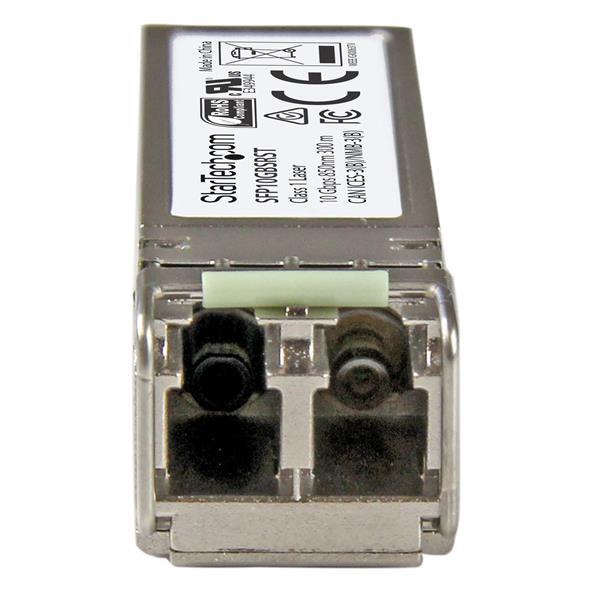

850nm duplex LC
Uses 850nm multimode optics with an LC duplex connector.
DDM and hot-swap
DDM is supported and the module is hot-swappable.
What to know before buying
DeviceDeal's description lists power below 1.6W, while its current technical table lists below 1.3W. The technical-table value is used in Specifications and the source conflict is recorded in Review 165.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What speed does SFP10GBSRST support?
What fibre type does it use?
What connector is used?
What wavelength does it use?
What is the maximum distance?
Does it support DDM?
What power value is used in the specifications?
What warranty applies in Australia?
(SFP10GBSRST)
Features and highlights
MSA compliant
Designed for 10GBASE-SR compatible MSA switches and routers.
300m multimode reach
Supports optical links up to 300m / 984ft.
850nm duplex LC
Uses 850nm multimode optics with an LC duplex connector.
DDM and hot-swap
DDM is supported and the module is hot-swappable.
- 10GbE
- Multimode fibre
- LC / 850nm / 300m
- Lifetime warranty
Specifications
Verified specifications for StarTech SFP10GBSRST.
Warranty Information
| Warranty | Lifetime |
|---|
Hardware
| Compatible Brand | MSA Compliant |
|---|---|
| Industry Standards | IEEE 802.3ae 10GBASE-SR |
| WDM | No |
Performance
| Compatible Networks | 10 Gbps |
|---|---|
| DDM | Yes |
| Fiber Operating Mode | Full-Duplex |
| Max Transfer Distance | 300 m (984 ft) |
| Maximum Data Transfer Rate | 10 Gbps |
| Type | Multi Mode |
| Wavelength | 850nm |
Connector(s)
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female |
|---|
Power
| Power Consumption (In Watts) | < 1.3 W |
|---|
Environmental
| Humidity | 5~95% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Physical Characteristics
| Color | Silver |
|---|---|
| Enclosure Type | Aluminum |
| Product Height | 0.5 in [1.3 cm] |
| Product Length | 2.3 in [58.4 mm] |
| Product Width | 0.5 in [13.9 mm] |
| Weight of Product | 0.7 oz [20 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 4.5 in [11.5 cm] |
| Package Width | 3.5 in [90 mm] |
| Shipping (Package) Weight | 1.8 oz [50 g] |
What's in the Box
| Included in Package | 1 - SFP+ transceiver |
|---|
| SKU | SFP10GBSRST |
| Barcode # | 65030873338 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000550000m3 |
