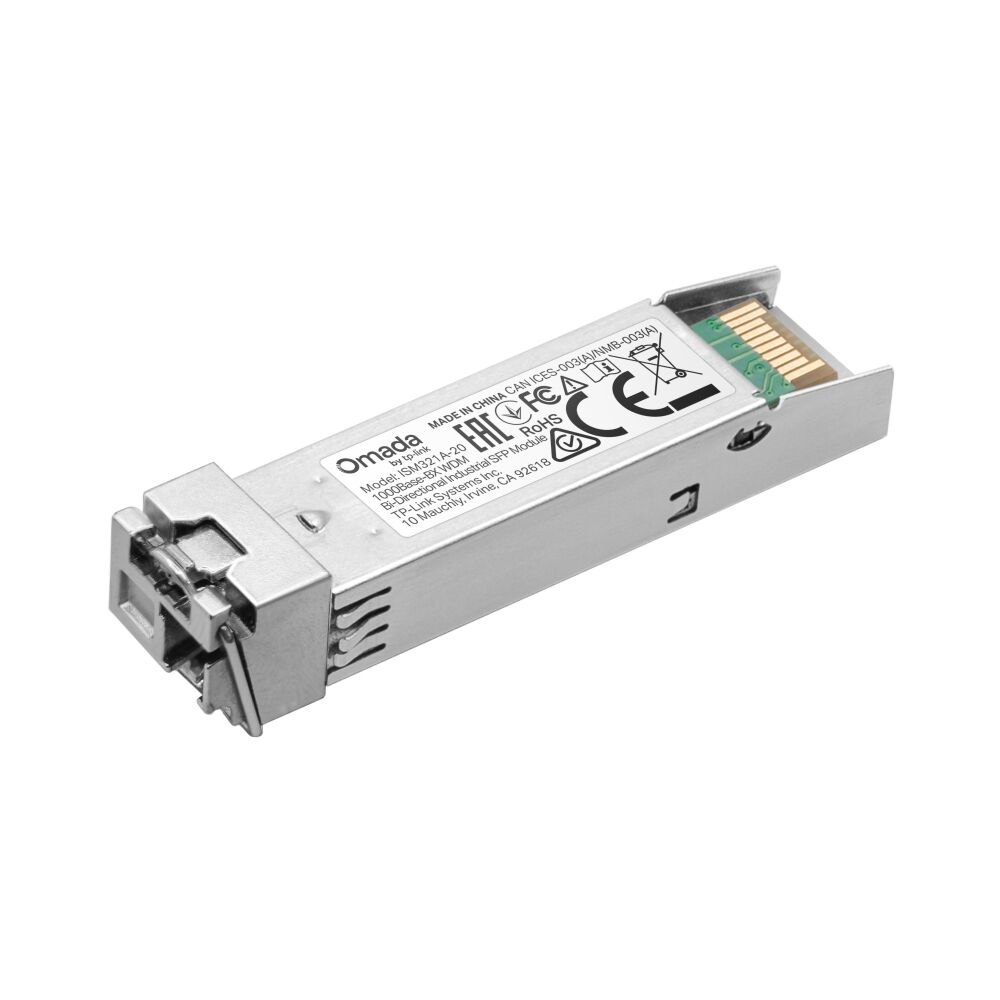

TP-LINK ISM321A-20 Omada 1000Base-BX WDM Bi-Directional Industrial SFP Module
Model # ISM321A-20
-
SKU: ISM321A-20
- Pick Up Available
- Australian Warranty
- Checkout Securely
1000Base-BX WDM Bi-Directional Industrial SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Industrial Product Operating Temperature Range: -40-85°C
(ISM321A-20)
| Transceiver | |
|---|---|
| Standards and Protocols | IEEE 802.3z,TCP/IP |
| Wave Length | Tx: 1550 nm Rx: 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125 µm Single-mode |
| Max. Cable Length | 20 km |
| Data Rate | 1.25 Gbps |
| Connector | LC Simplex |
| Regulatory Compliance | FCC, CE |
| Environment | • Operating Temperature: -40˚C~ 85˚C (-40˚C~ 185˚F) • Storage Temperature: -40℃~85℃ (-40˚C~ 185˚F) • Operating Humidity: 5%~85% non-condensing • Storage Humidity: 5%~85% non-condensing |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 2.2*0.5* 0.4 in (56.4*13.4*11.0 mm) |
| Package Content | |
|---|---|
| Package Content | • ISM321LA-20 • Installation Guide |
| SKU | ISM321A-20 |
| Barcode # | 1210002601993 |
| Brand | TP-LINK |
| Shipping Weight | 0.3000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
