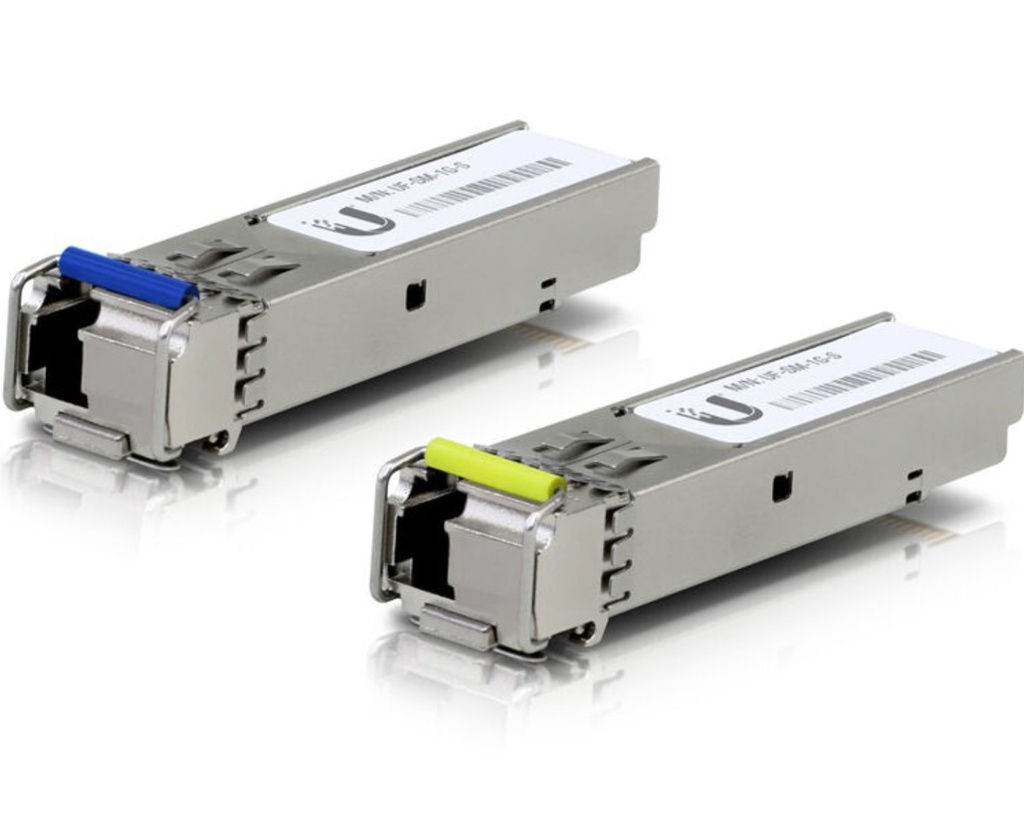

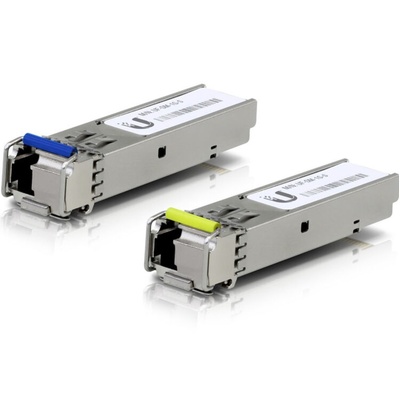

Ubiquiti UACC-OM-SM-1G-S U Fiber, Single-Mode Module, 1G, BiDi, 2-Pack

Single-mode, simplex, fiber transceiver module.

1.25 Gbps throughput

Simplex LC connector

Supports connections up to 3 km*

_{*Fiber cable is not included.}

UACC-OM-SM-1G-S: Single-mode, simplex, ber transceiver module.

The Ubiquiti 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.

UACC-OM-SM-1G-S

Supported Media Single-Mode Fiber

Connector Type (1) LC

BiDi Yes

TX Wavelength* Blue Latch: 1310 nm

Yellow Latch: 1550 nm

*Itmustbeusedinpairs (bluelatchandyellow latch)

RX Wavelength* Blue Latch: 1550 nm

Yellow Latch: 1310 nm

*Itmustbeusedinpairs (bluelatchandyellow latch)

Data Rate 1.25 Gbps

Max. Power Consumption 0.66W

Cable Distance 3 km

Operating Temperature 0 to 70° C (32 to 158° F)

Pack Options 2-pack, 20-pack

WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do notlook into the ends of the ber optic cable or SFP module while converters are powered.
