StarTech.com · J9151E-ST

StarTech J9151E-ST HPE J9151E-Compatible 10GBASE-LR SFP+ Transceiver

HPE J9151E-Compatible 10GBASE-LR SFP+ Transceiver for professional networking or ergonomic workstation applications.

Quick answer: J9151E-ST provides a 10GbE 10GBASE-LR link over single-mode fibre through LC duplex.

Best forLong-distance uplinks for compatible HPE switches and routers requiring up to 10km over single-mode fibre.

Check before orderingConfirm HPE J9151E coding, SFP+ host support, LC duplex single-mode fibre, 1310nm optics and link distance.

Answers before you buy

Frequently asked questions

What is StarTech J9151E-ST?

It is a HPE-compatible single-mode SFP+ transceiver that provides a 10GbE 10GBASE-LR link over single-mode fibre through LC duplex.

Which connections or mounting method are provided?

SFP+ slot to LC duplex fibre

What performance is specified?

10GBASE-LR; 10GbE; 1310nm; single-mode fibre; up to 10km

Does it require power?

Less than 1.3W; 3.3V DC output specification

What fibre type is required?

This 10GBASE-LR transceiver uses single-mode fibre with LC duplex connections at 1310nm.

What is the stated MTBF?

The official specification lists an MTBF of 1,386,624,697 hours.

What should be checked before ordering?

Confirm HPE J9151E coding, SFP+ host support, LC duplex single-mode fibre, 1310nm optics and link distance.

What warranty applies?

J9151E-ST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(J9151E-ST)

Features & highlights

Why choose J9151E-ST?

?Purpose-built designSFP+ slot to LC duplex fibre

?Specified performance10GBASE-LR; 10GbE; 1310nm; single-mode fibre; up to 10km

?Power arrangementLess than 1.3W; 3.3V DC output specification

?Construction and deploymentHot-swappable steel SFP+ module with DDM

?Key capabilityDDM reports supported operating information to compatible network management tools.

?Installation advantageDesigned, programmed and tested for HPE J9151E-compatible hosts.

Compatibility reminder: Confirm HPE J9151E coding, SFP+ host support, LC duplex single-mode fibre, 1310nm optics and link distance.

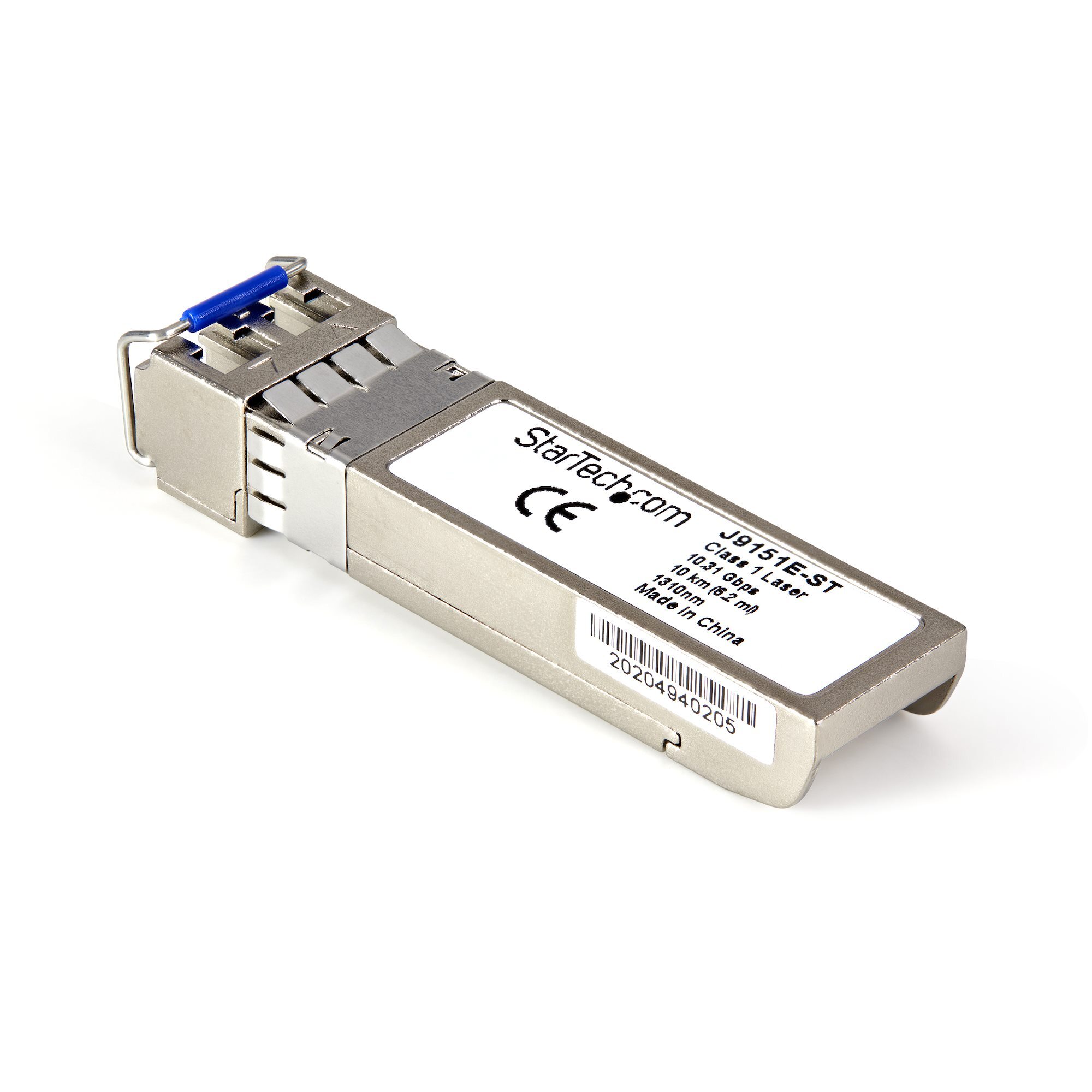

StarTech J9151E-ST HPE J9151E-Compatible 10GBASE-LR SFP+ Transceiver product image

Technical specifications

J9151E-ST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3ae 10GBASE-LR
Material	Steel
Performance
Maximum Data Transfer Rate	10.00Gbps
Fibre Type	Single-mode
Wavelength	1310nm
Maximum Distance	10km
DDM	Yes
Power Consumption	<1.3W
MTBF	1,386,624,697 hours
Power
Output Voltage	3.3V DC
Connectors
Connector A	SFP+ slot
Connector B	LC duplex fibre
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	085%
Physical Characteristics
Dimensions	58 × 14 × 14mm
Weight	21g
What's in the Box
Included	1 × SFP+ transceiver module

Sources: https://www.devicedeal.com.au/startech-j9151e-st-sfp-hp-j9151e-compatible and https://www.startech.com/

SKU	J9151E-ST
Barcode #	65030886345
Brand	Startech
Shipping Weight	0.0500kg
Shipping Width	0.003m
Shipping Height	0.011m
Shipping Length	0.009m

Manufacturer warranty

Lifetime

This Australian-version product is supplied by DeviceDeal and is covered by the limited lifetime manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
