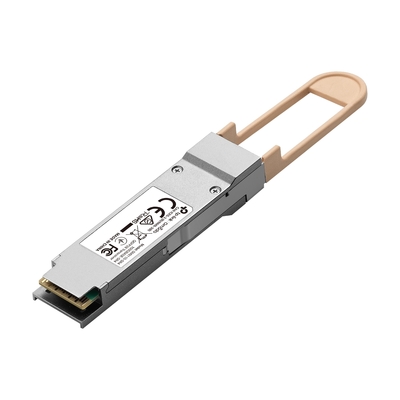

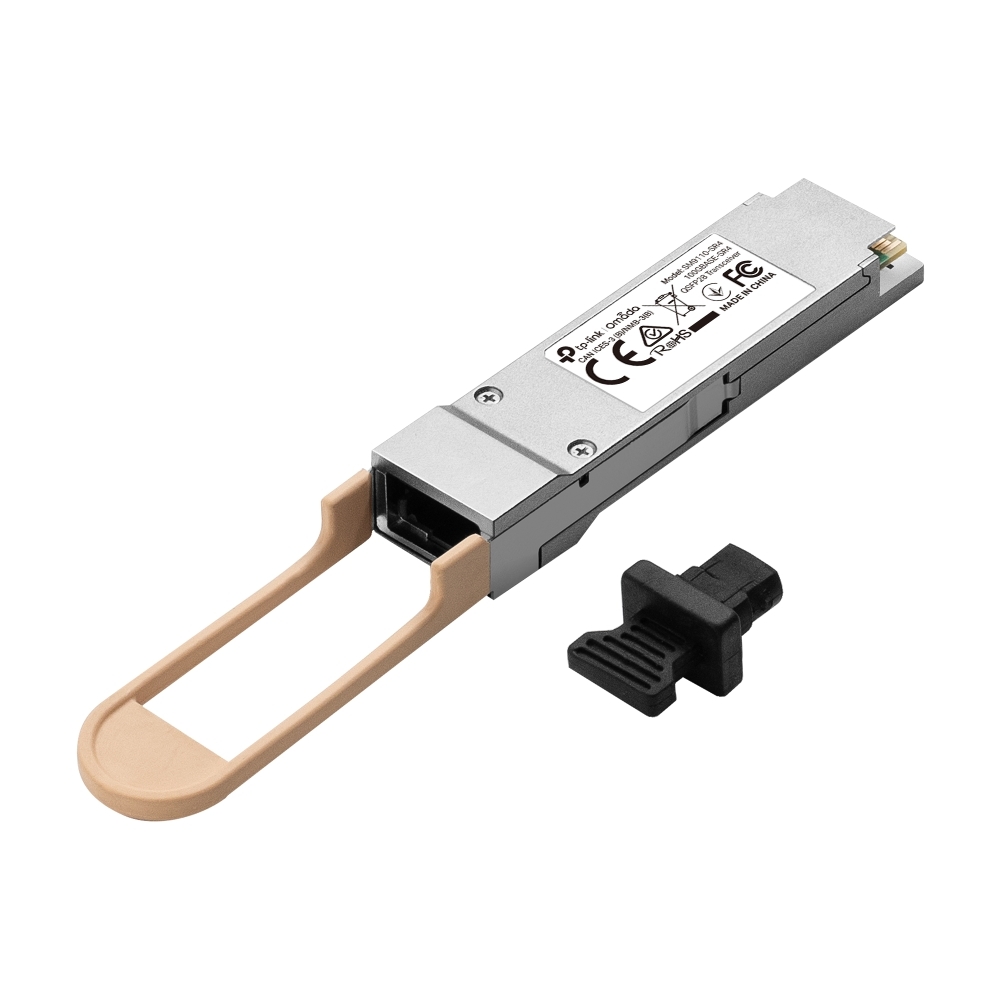

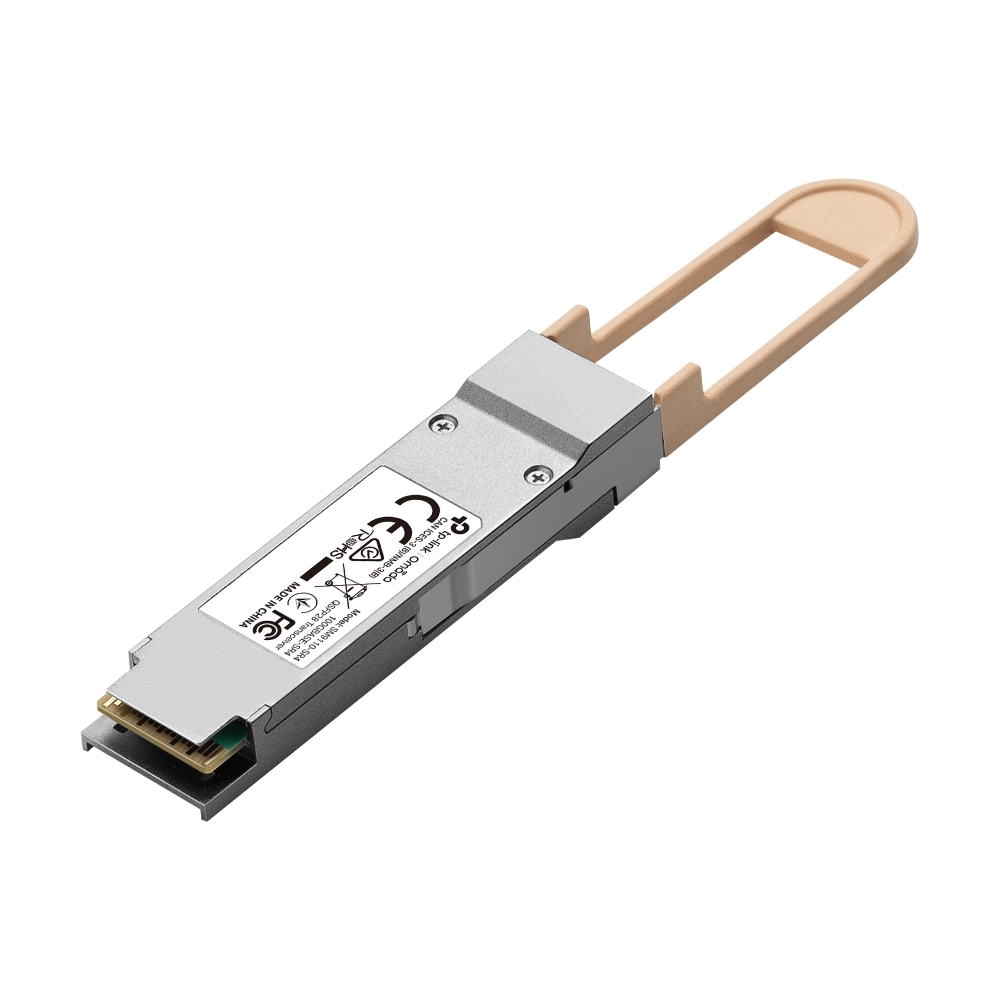

Omada 100GBASE-SR4 QSFP28 Transceiver 100GBASE-SR4 multi-mode QSFP28 Transceiver Supports Digital Diagnostic Monitoring (DDM) Up to 100 m transmission distance Hot-Pluggable with maximum flexibility Wide operating temperature Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

(SM9110-SR4)

Transceiver Form Factor QSFP28 Standards and Protocols • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, • SFF-8665, SFF-8636, SFF-8436, • CPRI, eCPRI • TCP/IP Wave Length 850 nm Power Supply 3.3 V Power Consumption Max 1.8 W at 100 Gbps Max 1.54 W at 40 Gbps Fiber Type 50/125um MMF (Multimode) Max. Cable Length 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps) Data Rate Dual Rate 103.125 Gbps and 41.2 Gbps Connector MTP/MPO-12 Transmitter Type VCSEL 850 nm Receiver Type PIN Transmitter Power -8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 Gbps Receiver Sensitivity <-10.3 dBm @103.125 Gbps <-9.5 dBm @41.2 Gbps Receiver Overload >2.4 dBm @103.125 Gbps >2.4 dBm @41.2 Gbps Extinction Ratio >2 dB @103.125 Gbps >3 dB @41.2 Gbps Regulatory Compliance CE, FCC, RoHS HARDWARE FEATURES DDM Yes QSFP28 MSA Yes Hot Swappable Yes Dimensions ( W x D x H ) 4.88*0.72*0.46 in (124*18.35*11.7 mm) PACKAGE CONTENTS Package Contents • SM9110-SR4 • Installation Guide ENVIRONMENT Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Operating Humidity 0 to 85% RH Non-condensing Storage Humidity 0 to 85% RH Non-condensing
SKU SM9110-SR4
Brand TP-LINK
Shipping Weight 0.2000kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

TP-LINK SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver

Model # SM9110-SR4

  • SKU: SM9110-SR4

$109.00
$142.00
SAVE $33.00 (23%)
In Stock
