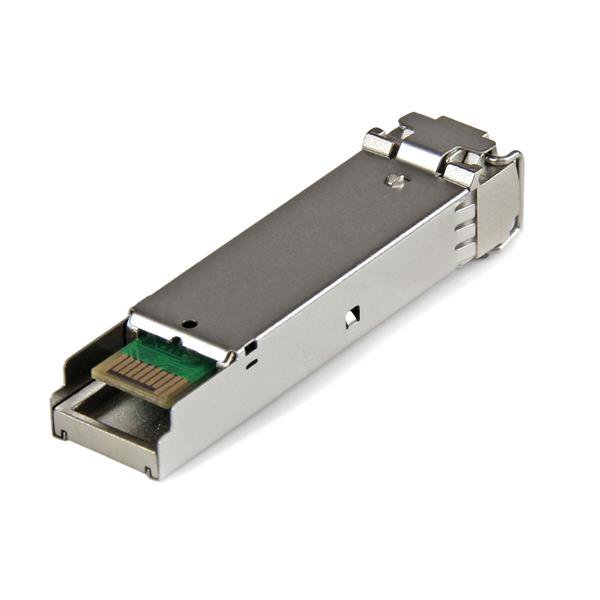

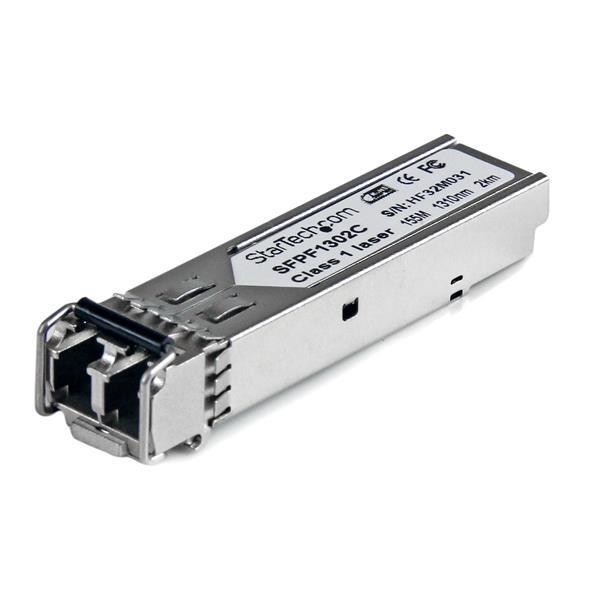

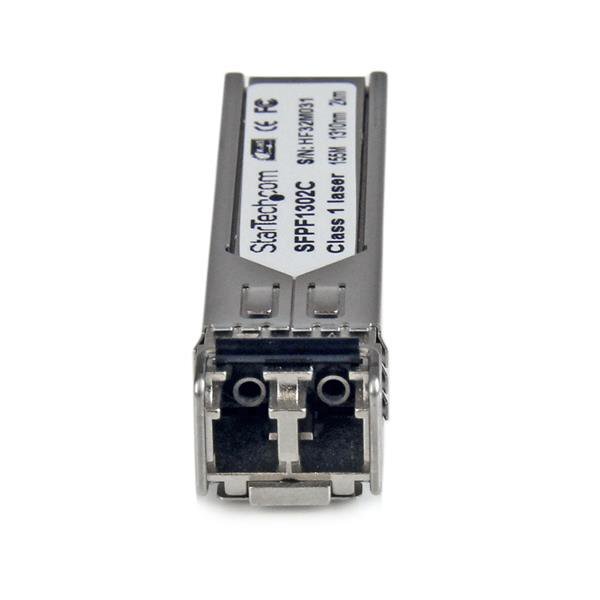

StarTech.com SFPF1302C

Cisco GLC-FE-100FX compatible 100BASE-FX multimode SFP

A Cisco GLC-FE-100FX compatible SFP optical transceiver for 100Mbps fibre networking, using duplex LC multimode fibre at 1310nm with reach up to 2km.

100BASE-FXMultimode fibreLC / 1310nm / 2kmLifetime warranty

StarTech SFPF1302C Cisco compatible 100BASE-FX multimode SFP transceiver

Key capabilities

Cisco GLC-FE-100FX compatible

Designed and tested for compatible Cisco switches and routers.

2km multimode reach

Supports 100BASE-FX links up to 2km / 1.2mi.

1310nm duplex LC

Uses multimode fibre with a duplex LC optical connection.

DDM and hot swap

DDM is supported and the SFP module is hot-swappable.

What to know before buying

This exact product is an SFP for 100BASE-FX. One sentence in the supplied description calls it an 'SFP+' module, but the product identity, standard and SFP-port requirement all identify it as SFP; the listing is kept as SFP.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFPF1302C compatible with?

Cisco GLC-FE-100FX compatible networking equipment.

What network standard does it support?

IEEE 802.3u 100BASE-FX.

What data rate is listed?

A maximum data-transfer rate of 155Mbps for 100Mbps network use.

What fibre type and connector are used?

Multimode fibre with duplex LC.

What wavelength does it use?

1310nm.

What is the maximum distance?

Up to 2km / 1.2mi.

Does it support DDM?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFPF1302C)

Features and highlights

Cisco GLC-FE-100FX compatible

Designed and tested for compatible Cisco switches and routers.

2km multimode reach

Supports 100BASE-FX links up to 2km / 1.2mi.

1310nm duplex LC

Uses multimode fibre with a duplex LC optical connection.

DDM and hot swap

DDM is supported and the SFP module is hot-swappable.

100BASE-FX
Multimode fibre
LC / 1310nm / 2km
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFPF1302C.

Warranty Information

Warranty	Lifetime

Hardware

Compatible Brand	Cisco
Industry Standards	IEEE 802.3u 100BASE-FX
WDM	No

Performance

Compatible Networks	100 Mbps
DDM	Yes
Fiber Operating Mode	Half/Full-Duplex
Max Transfer Distance	2 km (1.2 mi)
Maximum Data Transfer Rate	155 Mbps
MTBF	1,472,572 hours
Type	Multi Mode
Wavelength	1310nm

Connector(s)

Local Unit Connectors	1 - Fiber Optic LC Duplex Female

Special Notes / Requirements

Note	For use in 100 Mbps fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP port

Power

Power Consumption (In Watts)	< 1 W

Environmental

Humidity	30~70% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 85°F)

Physical Characteristics

Product Height	0.6 in [1.4 cm]
Product Length	2.6 in [65 mm]
Product Width	0.4 in [9 mm]
Weight of Product	0.9 oz [25 g]

Packaging Information

Package Height	1.3 in [33 mm]
Package Length	4.6 in [11.8 cm]
Package Width	3.6 in [92 mm]
Shipping (Package) Weight	3.4 oz [95 g]

What's in the Box

Included in Package	1 - 155 Mbps Multi Mode LC SFP

SKU	SFPF1302C
Barcode #	65030846370
Brand	STARTECH
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3
