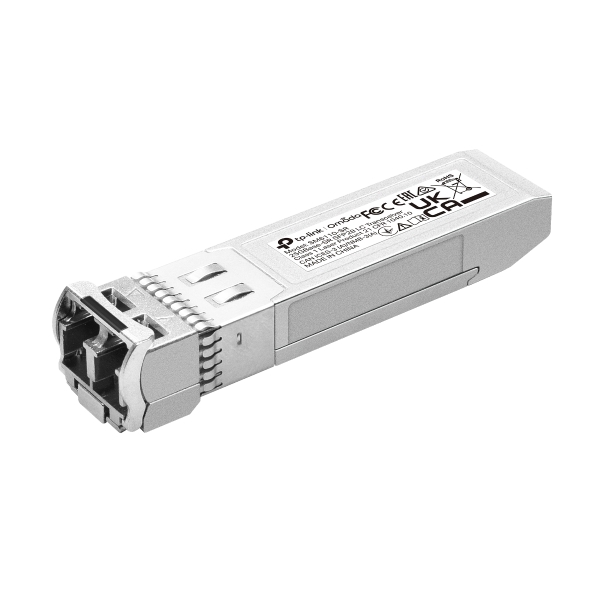

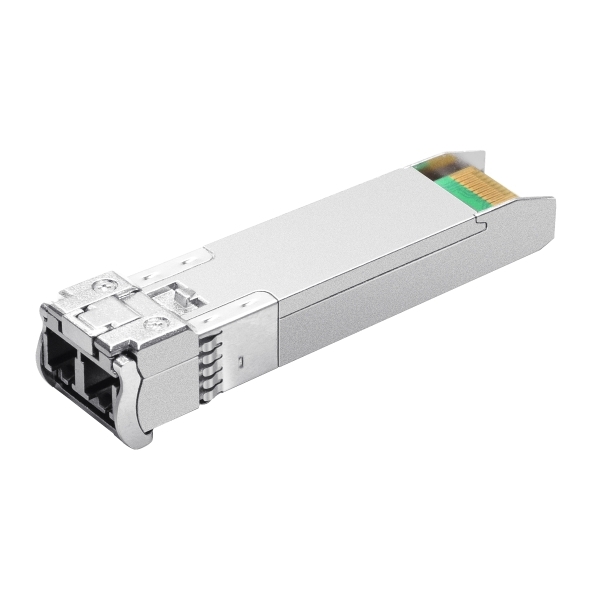

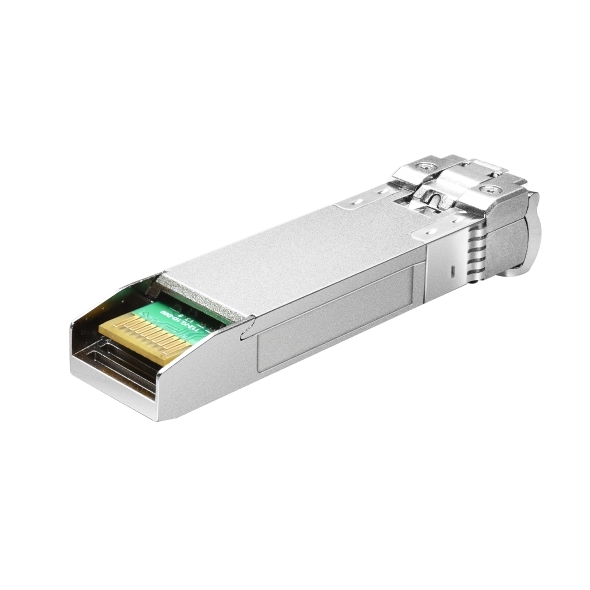

TP-LINK SM6110-SR Omada 25GBase-SR SFP28 LC Transceiver

The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.

Multi-mode SFP+/SFP28 LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Low Power Consumption no more than 1 W
Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

(SM6110-SR)

Package Contents	• SM6110-SR • Installation Guide

HARDWARE FEATURES
DDM	Yes
SFP-MSA	Yes
Hot Swappable	Yes
Dimensions ( W x D x H )	2.240.550.53 in (571413.45 mm)

TRANSCEIVER
Standards and Protocols	• IEEE 802.3ae, 802.3by • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP
Wavelength	850nm
Power Supply	3.3V
Fiber Type	50/125um or 62.5/125um Multi-mode
Max. Cable Length	70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
Support Data Rate	Dual Rate 25.78 Gbps and 10.31 Gbps

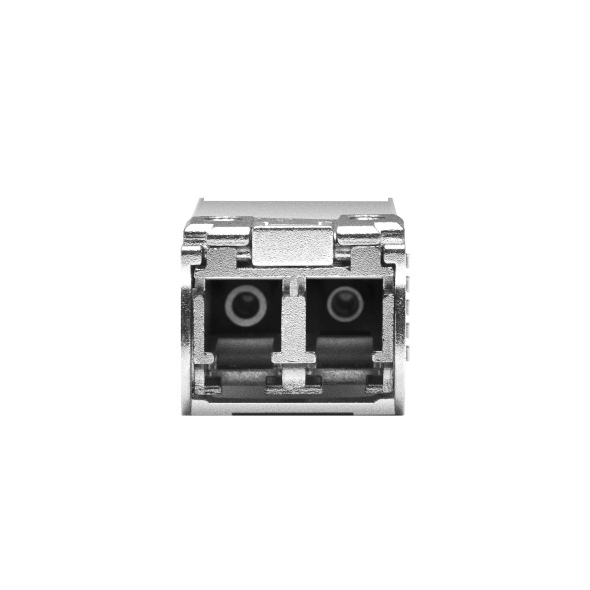

Connector	Duplex LC/UPC
Regulatory Compliance	CE, FCC, RoHS
Environment	• Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing
