StarTech.com · MASFP10GBLR

StarTech MASFP10GBLR Cisco Meraki Compatible 10GBASE-LR SFP+ Module

Cisco Meraki Compatible 10GBASE-LR SFP+ Module designed for professional IT, electronics, security or workstation use.

Quick answer: MASFP10GBLR provides 10GBASE-LR connectivity over duplex LC single-mode fibre for links up to 10km.

Best forReplacing or adding a Cisco Meraki MA-SFP-10GB-LR-compatible optic in supported switches and routers.

Check before orderingThe host must provide an MSA or compatible Cisco Meraki SFP+ port, and the link must use appropriate LC single-mode fibre.

Answers before you buy

Frequently asked questions

What is StarTech MASFP10GBLR?

It is a Cisco Meraki-compatible 10GbE single-mode SFP+ transceiver that provides 10GBASE-LR connectivity over duplex LC single-mode fibre for links up to 10km.

Which connections or mounting method are provided?

One duplex LC fibre interface in a hot-swappable SFP+ form factor

What performance is specified?

10Gbps; 1310nm; single mode; 10km; DDM; full duplex

How is the product constructed?

Silver aluminium transceiver programmed and tested for Cisco Meraki compatibility

What is the maximum link distance?

The specified maximum distance is 10km over compatible single-mode fibre.

Which Meraki optic does it replace?

It is designed as a compatible alternative to Cisco Meraki MA-SFP-10GB-LR.

What should be checked before ordering?

The host must provide an MSA or compatible Cisco Meraki SFP+ port, and the link must use appropriate LC single-mode fibre.

What warranty applies?

MASFP10GBLR carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MASFP10GBLR)

Features & highlights

Why choose MASFP10GBLR?

?Purpose-built designOne duplex LC fibre interface in a hot-swappable SFP+ form factor

?Specified performance10Gbps; 1310nm; single mode; 10km; DDM; full duplex

?Professional constructionSilver aluminium transceiver programmed and tested for Cisco Meraki compatibility

?Key capabilityDDM exposes supported optical and operating diagnostics to network-management tools.

?Deployment advantageHot-swappable module supports replacement with minimal network disruption.

?Order with confidenceThe host must provide an MSA or compatible Cisco Meraki SFP+ port, and the link must use appropriate LC single-mode fibre.

Compatibility reminder: The host must provide an MSA or compatible Cisco Meraki SFP+ port, and the link must use appropriate LC single-mode fibre.

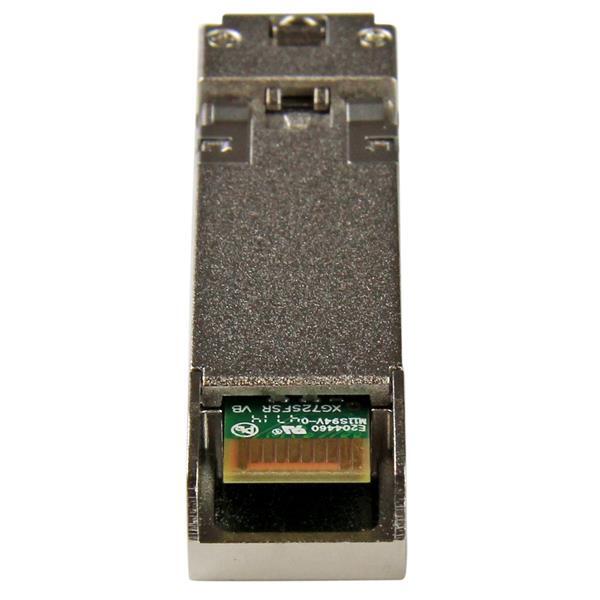

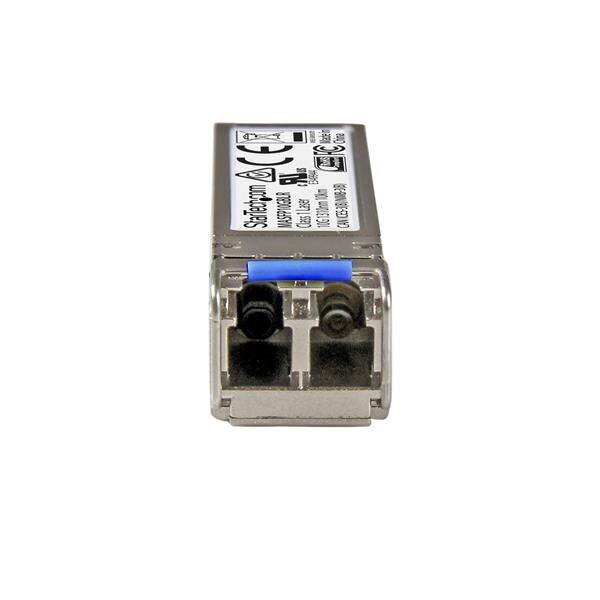

StarTech MASFP10GBLR Cisco Meraki Compatible 10GBASE-LR SFP+ Module product image

Technical specifications

MASFP10GBLR specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Compatibility
Compatible Brand	Cisco Meraki
Industry Standard	IEEE 802.3ae 10GBASE-LR
Host Requirement	MSA or Cisco Meraki-compliant SFP+ port
Performance
Maximum Data Rate	10Gbps
Fibre Type	Single mode, full duplex
Wavelength	1310nm
Maximum Distance	10km
DDM	Yes
MTBF	2,104,865 hours
Power Consumption	Less than 1.2W
Connector
Local Connector	1 × duplex LC female
Physical Characteristics
Material / Colour	Aluminium / silver
Dimensions	58.4 × 13.9 × 13mm
Product Weight	22g
What's in the Box
Included	SFP+ transceiver
