StarTech.com · MASFP10GBSR

StarTech MASFP10GBSR Cisco Meraki Compatible 10GBASE-SR SFP+ Module

Cisco Meraki Compatible 10GBASE-SR SFP+ Module designed for professional IT, electronics, security or workstation use.

Quick answer: MASFP10GBSR provides 10GBASE-SR connectivity over duplex LC multimode fibre for links up to 300m.

Best forShort-range 10GbE connections in compatible Cisco Meraki switches and routers requiring MA-SFP-10GB-SR coding.

Check before orderingThe host must provide an MSA or compatible Cisco Meraki SFP+ port and use suitable LC multimode fibre.

Answers before you buy

Frequently asked questions

What is StarTech MASFP10GBSR?

It is a Cisco Meraki-compatible 10GbE multimode SFP+ transceiver that provides 10GBASE-SR connectivity over duplex LC multimode fibre for links up to 300m.

Which connections or mounting method are provided?

One duplex LC fibre interface in a hot-swappable SFP+ form factor

What performance is specified?

10Gbps; 850nm; multimode; up to 300m; DDM; full duplex

How is the product constructed?

Silver aluminium transceiver programmed and tested for Cisco Meraki compatibility

What is the maximum link distance?

The specified maximum distance is 300m over compatible multimode fibre.

Which Meraki optic does it replace?

It is designed as a compatible alternative to Cisco Meraki MA-SFP-10GB-SR.

What should be checked before ordering?

The host must provide an MSA or compatible Cisco Meraki SFP+ port and use suitable LC multimode fibre.

What warranty applies?

MASFP10GBSR carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MASFP10GBSR)

Features & highlights

Why choose MASFP10GBSR?

?Purpose-built designOne duplex LC fibre interface in a hot-swappable SFP+ form factor

?Specified performance10Gbps; 850nm; multimode; up to 300m; DDM; full duplex

?Professional constructionSilver aluminium transceiver programmed and tested for Cisco Meraki compatibility

?Key capabilityDigital Diagnostics Monitoring supports status reporting in compatible management tools.

?Deployment advantageHot-swappable design enables straightforward installation and replacement.

?Order with confidenceThe host must provide an MSA or compatible Cisco Meraki SFP+ port and use suitable LC multimode fibre.

Compatibility reminder: The host must provide an MSA or compatible Cisco Meraki SFP+ port and use suitable LC multimode fibre.

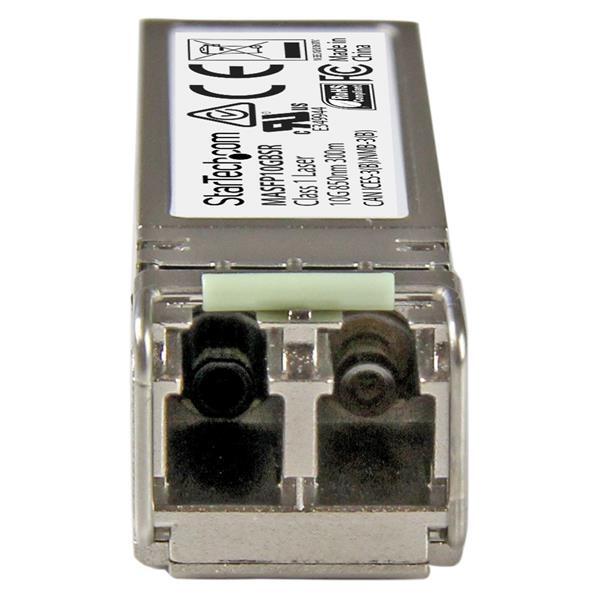

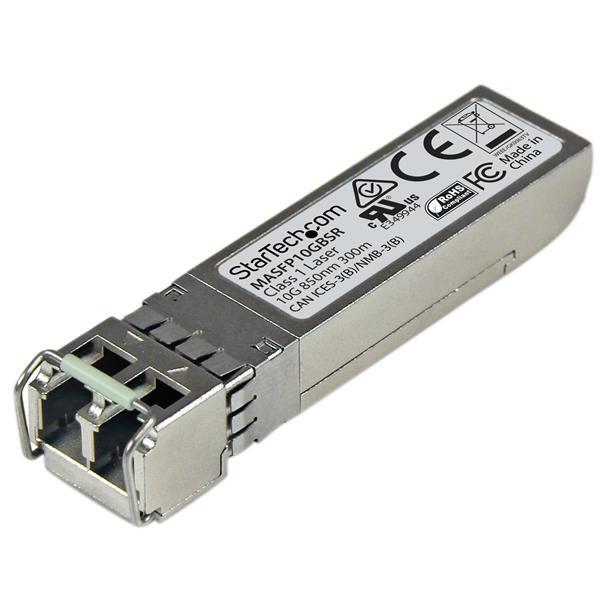

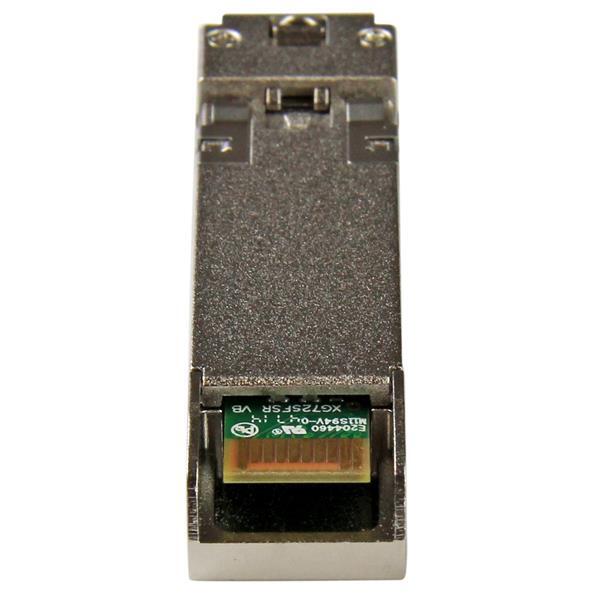

StarTech MASFP10GBSR Cisco Meraki Compatible 10GBASE-SR SFP+ Module product image

Technical specifications

MASFP10GBSR specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Compatibility
Compatible Brand	Cisco Meraki
Industry Standard	IEEE 802.3ae 10GBASE-SR
Host Requirement	MSA or Cisco-compatible SFP+ port
Performance
Maximum Data Rate	10Gbps
Fibre Type	Multimode, full duplex
Wavelength	850nm
Maximum Distance	300m
DDM	Yes
WDM	No
MTBF	1,967,709 hours
Power Consumption	Less than 1.2W
Connector
Local Connector	1 × duplex LC female
Physical Characteristics
Material / Colour	Aluminium / silver
Dimensions	54 × 13.9 × 13mm
Product Weight	18g
What's in the Box
Included	SFP+ transceiver

Sources: https://www.devicedeal.com.au/startech-cisco-meraki-ma-sfp-10gb-sr-compatible-sf and https://www.startech.com/

SKU	MASFP10GBSR
Barcode #	65030869966
Brand	Startech
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3
