Open SFP flexibility
Choose a compatible 1Gb SFP transceiver with the wavelength, distance and network connection required for the installation.

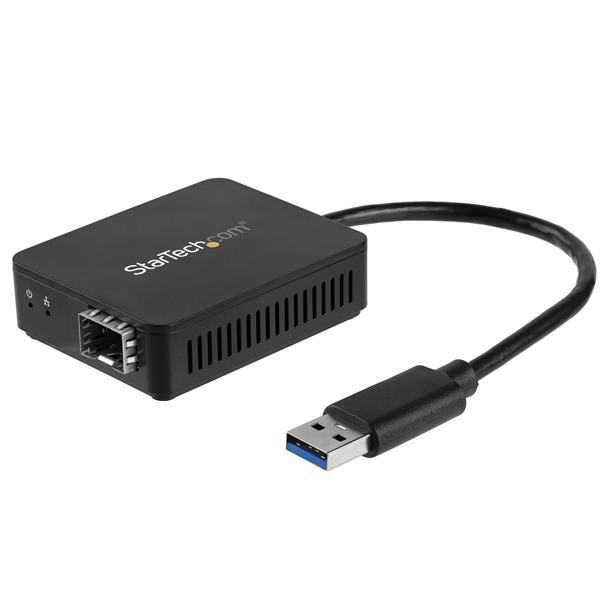

StarTech USB 3.0 to Fiber Optic Converter - Open SFP US1GA30SFP
Model # US1GA30SFP
-
SKU: US1GA30SFP
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GA30SFP
StarTech USB 3.0 to Open SFP Fibre Converter
Add a 1Gbps optical network connection to a compatible USB 3.0 Type-A computer through an open SFP slot that accepts the required 1Gb SFP transceiver.
1000Mbps fibreOpen SFP slotUSB-powered
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Gigabit optical networking
The adapter supports a 1000Mbps fibre network connection with full duplex and jumbo frames up to 9K.
USB-powered portability
Power is supplied through USB, so a separate external power adapter is not listed as required.
Multi-OS driver support
The supplied compatibility list covers specified Windows, Windows Server, macOS and Linux versions.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GA30SFP do?
It adds a 1000Mbps fibre network connection to a compatible computer through an available USB 3.0 port and an open SFP slot.
Is an SFP transceiver included?
No. A compatible 1Gb SFP transceiver is required and sold separately.
Can I choose the fibre wavelength and distance?
Yes. The open SFP slot lets you select a compatible 1Gb SFP transceiver for the required wavelength, distance and connection type.
What network speed does the adapter support?
The supplied specifications list 1000Mbps (1Gbps) compatible networks and a maximum data-transfer rate of 1000Mbps.
How is the converter powered?
It is powered from the USB connection and does not list a separate external power adapter.
Which operating systems are listed as compatible?
The supplied list includes Windows 7, 8, 8.1 and 10; Windows Server 2008, 2012, 2016 and 2019; macOS 10.9 to 10.14; and Linux kernel 3.5 to 4.11.x LTS versions.
What is included in the package?
The package includes one network adapter and one quick-start guide; the SFP transceiver is sold separately.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GA30SFP)
Features and highlights
StarTech US1GA30SFP
Open SFP flexibility
Choose a compatible 1Gb SFP transceiver with the wavelength, distance and network connection required for the installation.
Gigabit optical networking
The adapter supports a 1000Mbps fibre network connection with full duplex and jumbo frames up to 9K.
USB-powered portability
Power is supplied through USB, so a separate external power adapter is not listed as required.
Multi-OS driver support
The supplied compatibility list covers specified Windows, Windows Server, macOS and Linux versions.
- USB 3.0 bus interface and one open SFP slot
- IEEE 802.3z 1000BASE-SX/LX and IEEE 802.1Q VLAN tagging
- Power and Link/Activity LED indicators
- SFP transceiver is sold separately and determines fibre distance and speed conditions
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GA30SFP specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.0 |
|---|---|
| Chipset ID | Realtek - RTL8153-VB-CG; Microsemi - VSC8211XVW |
| Industry Standards | IEEE 802.3z 1000BASE-SX/LX; IEEE 802.1Q VLAN tagging |
| Interface | Fiber Ethernet |
| Ports | 1 |
Performance
| Compatible Networks | 1000 Mbps (1 Gbps) |
|---|---|
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| Promiscuous Mode | Yes |
Connector(s)
| Connector Type(s) | 1 × 9 pin USB 3.0 A Female |
|---|---|
| External Ports | 1 × SFP Slot Female |
Software
| OS Compatibility | Windows 7, 8, 8.1, 10; Windows Server 2008, 2012, 2016, 2019; macOS 10.9 - 10.14; Linux kernel 3.5 to 4.11.x, LTS versions only |
|---|
Special Notes / Requirements
| Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately). |
|---|---|
| System and Cable Requirements | USB-enabled computer with an available USB 3.0 port; 1Gb SFP transceiver with the desired network connection |
Indicators
| LED Indicators | 1 × Power; 1 × Link/Activity |
|---|
Power
| Power Source | USB-Powered |
|---|
Environmental
| Humidity | 5% to 90% RH |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Physical Characteristics
| Cable Length | 7.7 in [195 mm] |
|---|---|
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.8 in [2 cm] |
| Product Length | 6.7 in [17 cm] |
| Product Width | 5.6 in [14.1 cm] |
| Weight of Product | 3.7 oz [106 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 10.4 in [26.5 cm] |
| Package Width | 6.7 in [17 cm] |
| Shipping (Package) Weight | 1.8 oz [52 g] |
What's in the Box
| Included in Package | 1 × Network Adapter; 1 × Quick-Start Guide |
|---|
| SKU | US1GA30SFP |
| Barcode # | 65030871969 |
| Brand | STARTECH |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
