Open SFP slot
Use a compatible 1Gb SFP transceiver selected for the required wavelength, distance and connection type.
StarTech USB C to Fiber Optic Converter, Open SFP, Network Adapter - US1GC30SFP
Model # US1GC30SFP
-
SKU: US1GC30SFP
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GC30SFP

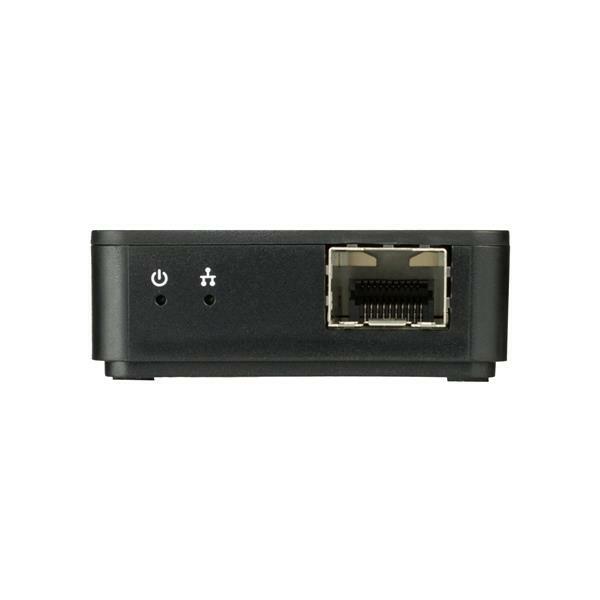

StarTech USB-C to Open SFP Fibre Network Adapter
Add a 1000Mbps optical network connection through USB-C and select a compatible 1Gb SFP transceiver for the required fibre wavelength, distance and connection type.
1000Mbps fibreOpen SFP slotUSB-powered
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Gigabit optical networking
The adapter supports 1000Mbps fibre Ethernet, full duplex and jumbo frames up to 9K.
USB-C host connection
The supplied specifications list a USB-C bus connection and one female SFP slot.
Portable USB power
The compact adapter draws power from USB and lists power and link/activity indicators.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GC30SFP do?
It adds a 1000Mbps fibre network connection to a compatible computer through USB-C and an open SFP slot.
Is an SFP transceiver included?
No. A compatible 1Gb SFP transceiver is required and sold separately.
Can I choose the fibre wavelength and distance?
Yes. Select a compatible 1Gb SFP for the required wavelength, distance and connection type.
What network speed is supported?
The supplied specifications list 1000Mbps (1Gbps) compatible networks.
How is the adapter powered?
It is powered directly from USB.
Which operating systems are listed?
The specifications list selected Windows, Windows Server, macOS and Linux LTS versions.
What is included in the package?
The package includes one network adapter and one quick-start guide; the SFP transceiver is sold separately.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GC30SFP)
Features and highlights
StarTech US1GC30SFP
Open SFP slot
Use a compatible 1Gb SFP transceiver selected for the required wavelength, distance and connection type.
Gigabit optical networking
The adapter supports 1000Mbps fibre Ethernet, full duplex and jumbo frames up to 9K.
USB-C host connection
The supplied specifications list a USB-C bus connection and one female SFP slot.
Portable USB power
The compact adapter draws power from USB and lists power and link/activity indicators.
- IEEE 802.3z 1000BASE-SX/LX
- IEEE 802.1Q VLAN tagging
- Promiscuous mode support
- SFP transceiver sold separately
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GC30SFP specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB-C |
|---|---|
| Chipset ID | Realtek - RTL8153-VB-CG; Microsemi - VSC8211XVW |
| Industry Standards | IEEE802.3z 1000BASE-SX/LX; IEEE 802.1Q VLAN tagging |
| Interface | Fiber Ethernet |
| Ports | 1 |
Performance
| Compatible Networks | 1000 Mbps (1 Gbps) |
|---|---|
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| Promiscuous Mode | Yes |
Connector(s)
| Connector Type(s) | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female |
|---|---|
| External Ports | 1 - SFP Slot Female |
Software
| OS Compatibility | Windows® 7, 8, 8.1, 10; Windows® Server 2008, 2012, 2016, 2019; macOS 10.9 - 10.14; Linux® kernel 3.5 to 4.11.x, LTS versions only |
|---|
Special Notes / Requirements
| SFP Requirement | A compatible 1Gb SFP transceiver is required and sold separately. Fibre speed and distance depend on the selected SFP. |
|---|
Indicators
| LED Indicators | 1 - Power; 1 - Link/Activity |
|---|
Power
| Power Source | USB-Powered |
|---|
Environmental
| Humidity | 5% ~ 90% RH |
|---|---|
| Operating Temperature | 0°C ~ 60°C (32° ~ 140°F) |
| Storage Temperature | -10° ~ 70°C (14° ~ 158°F) |
Physical Characteristics
| Cable Length | 7.7 in [195 mm] |
|---|---|
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.8 in [2 cm] |
| Product Length | 10.2 in [26 cm] |
| Product Width | 2.2 in [55 mm] |
| Weight of Product | 1.7 oz [48 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 5.6 in [14.2 cm] |
| Package Width | 6.7 in [17 cm] |
| Shipping (Package) Weight | 3.7 oz [104 g] |
What's in the Box
| Included in Package | 1 - network adapter; 1 - quick-start guide |
|---|
| SKU | US1GC30SFP |
| Barcode # | 65030875042 |
| Brand | STARTECH |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
