Wired Gigabit access
The RJ45 interface supports 10/100/1000Mbps networks through a compatible USB-C or Thunderbolt 3 host port.

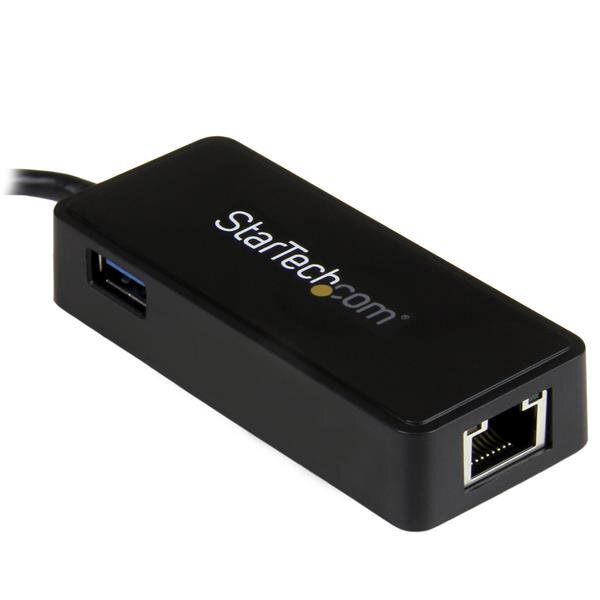

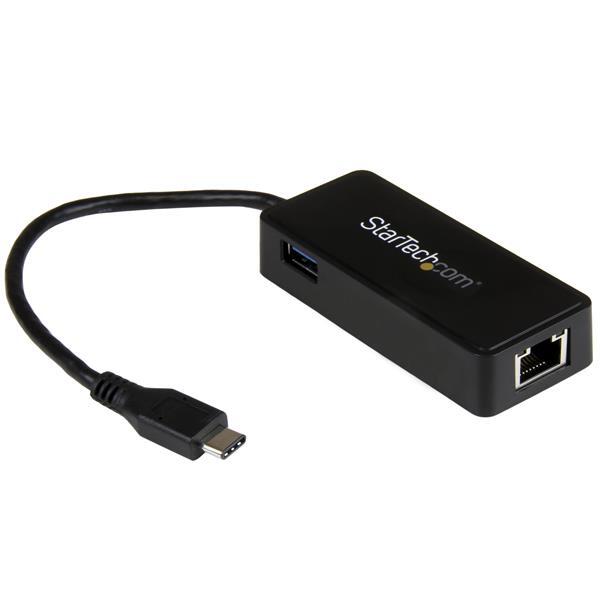

StarTech USB-C to Gigabit Network Adapter with Extra USB 3.0 Port US1GC301AU
Model # US1GC301AU
-
SKU: US1GC301AU
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GC301AU
StarTech USB-C Gigabit Network Adapter with USB-A Port
Connect a compatible USB-C or Thunderbolt 3 computer to a 10/100/1000Mbps wired network while retaining access to one additional USB Type-A peripheral port.
Gigabit EthernetUSB-A pass-throughUSB bus-powered
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
Extra USB Type-A port
The built-in USB Type-A port allows one additional compatible peripheral to be connected while the adapter is in use.
USB 3.1 Gen 1 host interface
The supplied performance specifications list USB 3.1 Gen 1 at 5Gbps for the adapter's host connection.
Portable, bus-powered design
The compact attached-cable adapter takes power from USB and does not list a separate external power supply.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GC301AU add to a computer?
It adds one RJ45 Gigabit Ethernet connection and one additional USB Type-A peripheral port through a compatible USB-C or Thunderbolt 3 host port.
What network speeds are supported?
The supplied specifications list compatible 10/100/1000Mbps Ethernet networks.
What is the USB host-interface speed?
The supplied performance specifications list USB 3.1 Gen 1 at 5Gbps.
Does the adapter require an external power supply?
No external power supply is listed; the adapter is powered through USB.
Which operating systems are listed?
The supplied specifications list Windows XP, Vista, 7, 8, 8.1 and 10; Windows Server 2003, 2008 R2 and 2012; Mac OS 10.6 to 10.14; and Linux kernel 2.6.25 to 4.11.x LTS versions.
Does it support VLAN tagging on Mac OS?
No. The supplied specifications state that VLAN tagging is currently not supported in Mac OS.
What is included in the package?
The package includes one USB-C to Gigabit Ethernet network adapter with an attached cable.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GC301AU)
Features and highlights
StarTech US1GC301AU
Wired Gigabit access
The RJ45 interface supports 10/100/1000Mbps networks through a compatible USB-C or Thunderbolt 3 host port.
Extra USB Type-A port
The built-in USB Type-A port allows one additional compatible peripheral to be connected while the adapter is in use.
USB 3.1 Gen 1 host interface
The supplied performance specifications list USB 3.1 Gen 1 at 5Gbps for the adapter's host connection.
Portable, bus-powered design
The compact attached-cable adapter takes power from USB and does not list a separate external power supply.
- Auto MDIX and full-duplex support
- Jumbo frame support up to 4K
- Native support details are supplied for selected Chrome OS and Windows systems, with Mac driver installation noted
- VLAN tagging is listed as not supported in Mac OS
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GC301AU specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.1 Gen 1 |
|---|---|
| Chipset ID | ASIX - AX88179; VIA/VLI - VL812 |
| Industry Standards | IEEE 802.3, 802.3u and 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
| USB Pass-Through | Yes |
Performance
| Auto MDIX | Yes |
|---|---|
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.1 Gen 1) |
| Type and Rate | USB 3.1 Gen 1 - 5 Gbit/s |
Connector(s)
| Connector Type(s) | 1 × USB Type-C (24 pin) USB 3.0 (5Gbps) Male |
|---|---|
| External Ports | 1 × USB 3.1 USB Type-A (9 pin, Gen 2, 10Gbps) Female; 1 × RJ-45 Latching Female |
Software
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10; Windows Server 2003, 2008 R2, 2012; Mac OS 10.6 to 10.14 (VLAN tagging is currently not supported in Mac OS); Linux kernel 2.6.25 to 4.11.x, LTS versions only |
|---|
Indicators
| LED Indicators | 1 × 10/100 Link/Activity (Green); 1 × Gigabit Link/Activity (Amber) |
|---|
Power
| Power Source | USB-Powered |
|---|
Environmental
| Humidity | 5% to 80% RH |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
Physical Characteristics
| Cable Length | 8 in [20.3 cm] |
|---|---|
| Color | Black |
| Enclosure Type | Plastic |
| Form Factor | Attached Cable |
| Product Height | 0.7 in [1.7 cm] |
| Product Length | 10.8 in [27.5 cm] |
| Product Width | 1.4 in [3.5 cm] |
| Weight of Product | 1.3 oz [38 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 6.7 in [17 cm] |
| Package Width | 5.6 in [14.3 cm] |
| Shipping (Package) Weight | 3.2 oz [92 g] |
What's in the Box
| Included in Package | 1 × USB-C to GbE Network Adapter |
|---|
| SKU | US1GC301AU |
| Barcode # | 65030862806 |
| Brand | Startech |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
