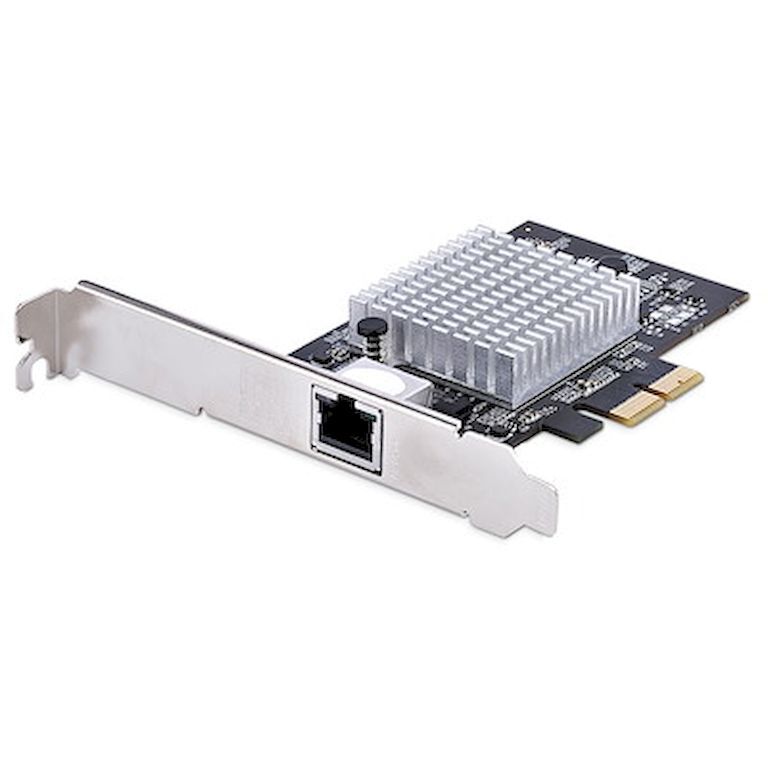

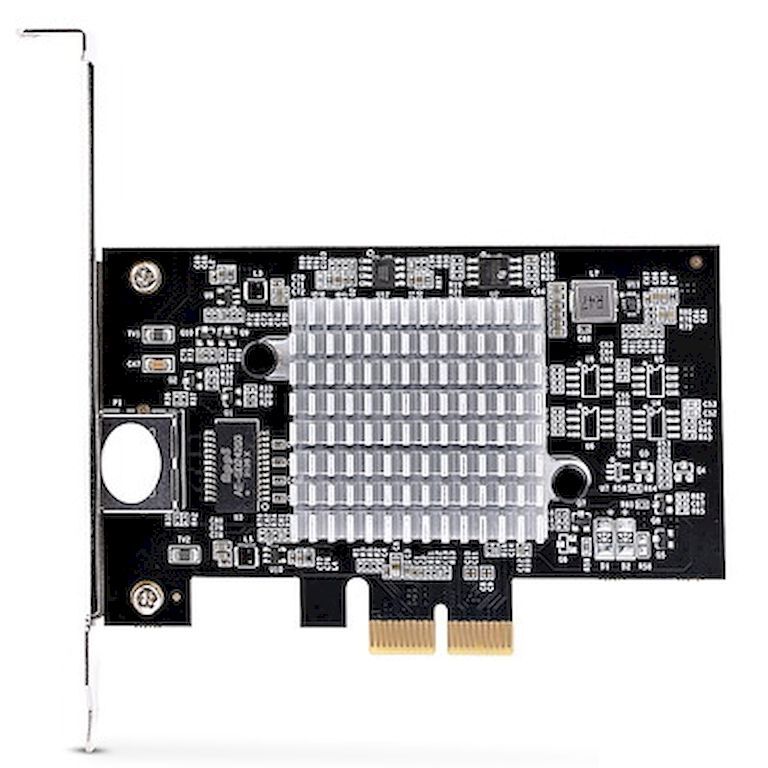

StarTech ST10GSPEXNB2 1-Port 10Gbps PCIe Network Adapter Card
Model # 5892778
-
SKU: ST10GSPEXNB2
- Pick Up Available
- Australian Warranty
- Checkout Securely
Six-speed 10GbE PCIe network adapter with Marvell AQC113CS
A single-port 10GBASE-T / NBASE-T PCIe NIC with Marvell AQC113CS, six network speeds from 10Mbps to 10Gbps, 16K jumbo frames, VLAN, PXE, EEE and Wake-on-LAN.
Key capabilities
Six-speed copper Ethernet
Supports 10G/5G/2.5G/1G/100Mbps/10Mbps for current and legacy network equipment.
Marvell AQC113CS
Current exact DeviceDeal and StarTech content identifies the Marvell AQC113CS controller.
16K jumbo and advanced features
Supports 16K jumbo frames, VLAN tagging, PXE, EEE, PTP, AVB and Wake-on-LAN.
PCIe x2 interface
Designed for PCIe x2; StarTech notes PCIe 2.0 operation is limited to 5Gbps.
What to know before buying
StarTech states 2.5/5Gbps operation can use suitable Cat5e, while 10Gbps requires Cat6 or Cat6a. The card can install in PCIe 3.0/4.0 or higher compatible slots; PCIe 2.0 limits maximum speed to 5Gbps.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What speeds does ST10GSPEXNB2 support?
Which chipset is used?
How many Ethernet ports are provided?
What jumbo-frame size is supported?
Does it support PXE and Wake-on-LAN?
Does it support AVB and PTP?
What happens in a PCIe 2.0 slot?
What warranty applies in Australia?
(ST10GSPEXNB2)
Features and highlights
Six-speed copper Ethernet
Supports 10G/5G/2.5G/1G/100Mbps/10Mbps for current and legacy network equipment.
Marvell AQC113CS
Current exact DeviceDeal and StarTech content identifies the Marvell AQC113CS controller.
16K jumbo and advanced features
Supports 16K jumbo frames, VLAN tagging, PXE, EEE, PTP, AVB and Wake-on-LAN.
PCIe x2 interface
Designed for PCIe x2; StarTech notes PCIe 2.0 operation is limited to 5Gbps.
- 1 × 10GbE RJ45
- Six speeds 10M10G
- Marvell AQC113CS
- 2-year warranty
Specifications
Verified specifications for StarTech ST10GSPEXNB2.
Hardware
| Warranty | 2 Years |
|---|---|
| Ports | 1 |
| Interface | RJ45 (10 Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard profile; low-profile bracket included |
| Chipset | Marvell AQC113CS |
| PCIe Interface | x2; intended for PCIe 3.0/4.0 or higher compatible slots |
Performance
| Maximum Data Transfer Rate | 10Gbps |
|---|---|
| Compatible Networks | 10G/5G/2.5G/1G/100Mbps/10Mbps |
| Auto MDIX | Yes |
| Full Duplex | Yes |
| Jumbo Frames | 16K max. |
| Wake On LAN | Yes |
| PXE | Yes |
| VLAN | IEEE 802.1Q |
| EEE | Supported |
| PTP | IEEE 1588 |
| AVB | Supported |
| PCIe 2.0 Note | Maximum speed limited to 5Gbps |
Connectors
| Internal | 1 × PCI Express x2 |
|---|---|
| External | 1 × RJ45 |
Environment
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -10°C to 70°C |
In the Box
| Included | PCIe network card; low-profile bracket; quick-start guide |
|---|
| SKU | ST10GSPEXNB2 |
| Barcode # | 65030897549 |
| Brand | Startech |
| Shipping Weight | 0.1600kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.021m |
| Shipping Length | 0.015m |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
