StarTech.com ST1000SPEXD4

2-port PCIe Gigabit Ethernet server network adapter

A dual-port PCI Express Gigabit Ethernet NIC with two 10/100/1000Mbps RJ45 ports, 9K jumbo frames, VLAN tagging, Wake-on-LAN and a low-profile bracket.

2 × Gigabit RJ45PCIe x19K jumbo + VLAN + WOL2-year warranty

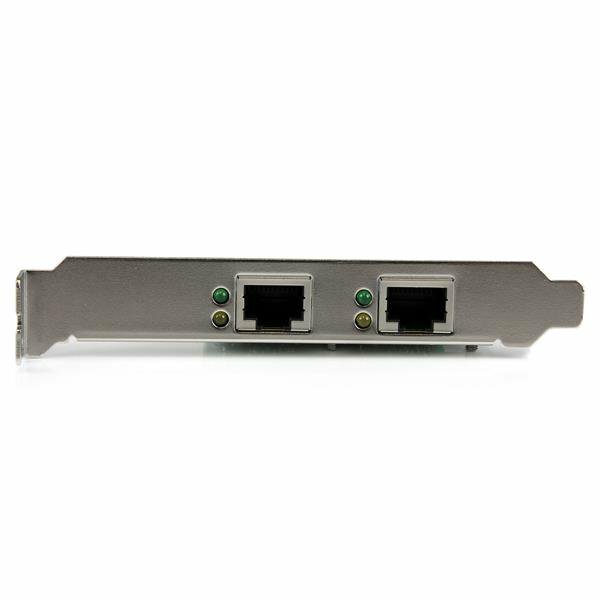

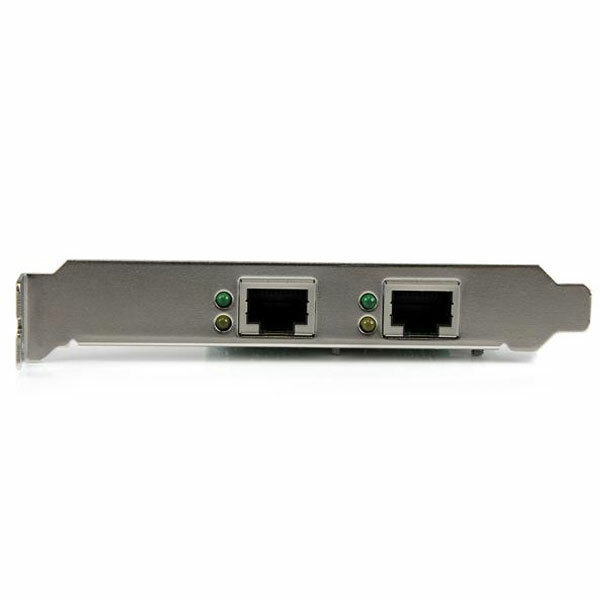

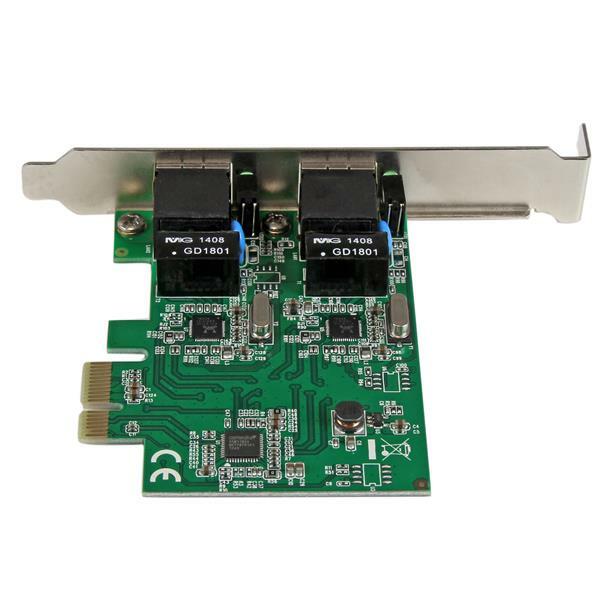

StarTech ST1000SPEXD4 dual-port PCIe Gigabit Ethernet network adapter

Key capabilities

Dual Gigabit Ethernet

Adds two independent 10/100/1000Mbps RJ45 interfaces through one PCIe slot.

Current chipset wording

Current StarTech documentation lists Realtek RTL8111 with ASMedia ASM1182E.

9K jumbo and VLAN support

Supports 9K jumbo frames, IEEE 802.1Q VLAN tagging and IEEE 802.1P priority encoding.

Dual-profile chassis support

Standard bracket is fitted and a low-profile bracket is included.

What to know before buying

Requires an available PCI Express slot. Current StarTech documentation identifies the Realtek controller as RTL8111, while the supplied older table lists RTL8111H; the current official wording is used.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many Ethernet ports does ST1000SPEXD4 provide?

Two RJ45 Gigabit Ethernet ports.

What network speeds are supported?

10/100/1000Mbps.

What PCIe interface is used?

PCI Express x1.

Which chipsets are listed by current StarTech documentation?

Realtek RTL8111 and ASMedia ASM1182E.

Does it support jumbo frames?

Yes, up to 9K.

Does it support VLAN tagging and Wake-on-LAN?

Yes.

Is a low-profile bracket included?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST1000SPEXD4)

Features and highlights

Dual Gigabit Ethernet

Adds two independent 10/100/1000Mbps RJ45 interfaces through one PCIe slot.

Current chipset wording

Current StarTech documentation lists Realtek RTL8111 with ASMedia ASM1182E.

9K jumbo and VLAN support

Supports 9K jumbo frames, IEEE 802.1Q VLAN tagging and IEEE 802.1P priority encoding.

Dual-profile chassis support

Standard bracket is fitted and a low-profile bracket is included.

2 × Gigabit RJ45
PCIe x1
9K jumbo + VLAN + WOL
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST1000SPEXD4.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8111; ASMedia - ASM1182E (current exact StarTech datasheet)
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Industry Standards	PCI Express Base Specification 2.0
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	2

Performance

Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Promiscuous Mode	Yes
Supported Protocols	IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control

Connector(s)

Connector Type(s)	1 - PCI Express x1 Male
External Ports	2 - RJ-45 Female

Software

OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS 10.4 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only

Special Notes / Requirements

System and Cable Requirements	Available PCI Express slot

Indicators

LED Indicators	2 - Green - Link/Activity
LED Indicators	2 - Yellow - Gigabit Mode

Environmental

Humidity	10~90% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	0°C to 100°C (32°F to 212°F)

Physical Characteristics

Product Height	4.7 in [12 cm]
Product Length	3.6 in [92.6 mm]
Product Width	0.7 in [18 mm]
Weight of Product	1.9 oz [53 g]

Packaging Information

Package Height	1.2 in [30 mm]
Package Length	5.6 in [14.3 cm]
Package Width	6.7 in [17 cm]
Shipping (Package) Weight	5 oz [142 g]

What's in the Box

Included in Package	1 - PCIe Network Card
Included in Package	1 - Low Profile Bracket
Included in Package	1 - Driver CD
Included in Package	1 - Instruction Manual

SKU	ST1000SPEXD4
Barcode #	65030859356
Brand	Startech
Shipping Weight	0.1300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.160m
Shipping Cubic	0.000800000m3

2-year official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
